Google Pixel C Headphone Jack Replacement

Geschrieben von: Deborah Iwakiri
  • Kommentare: 4
Google Pixel C Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide will give step by step instructions to removing the headphone jack from a Google Pixel C tablet.

  1. nOLAVrpxwUxbLMbu

    • Ensure that the device is completely powered down before beginning to take it apart

    • Use a heat gun to melt the adhesive that holds the screen to the device

    • Move the heat gun around the edge of the screen for approximately 1 minute, or until the screen can be lifted off in the next step.

    • Make sure not to heat the screen for too long because too much can damage other components inside the tablet.

  2. BKXfYmOMalUjVfYc
    BKXfYmOMalUjVfYc
    sv5BM4UGLmbJGvUJ

    • Use a suction cup to assist in lifting the screen while prying around its edges with a plastic spudger.

    • If necessary use a metal spudger to pry the screen up, taking care not to scratch the device.

    • Be careful not to pull the screen too far off. It will still be attached to the device by a cable for the front facing camera and the wide display data cable.

    • Reattaching the screen will require adhesive to ensure that it stays in place.

    Be very careful at the bottom of the screen, as you can easily tear some screen internal flex cables. If those cables are torn you have to replace the screen

    Hannes -

  3. oP1HTNCAySgqddAf
    oP1HTNCAySgqddAf
    IdWoMJfE2KDVgDXK

    • Detach the cables for the camera by lifting the small flap using the tip of your fingernail or a spudger. Gently pull the ribbon cable out.

    Hi friend I have a tab pixel c like that

    But screen touch is broken

    Where can I find it ? I'm from Tanzania

    Help me please

    Gmail ikbfils@gmail.com

    Ikb Fils -

  4. gF46vsktYJXdF2dP
    gF46vsktYJXdF2dP
    BUxRjnvpSRRRUSUp

    • Follow the same removal procedure to detach the wide gold cable.

    • When reattaching cables, it is helpful to use tweezers to slide the cable in before securing it down with the flap.

    • This device is missing a battery, so the device that you are working on may appear slightly different inside.

    This is not very useful if there is no way of getting the parts.

    Lorenzo Braschi -

    Hi i seem to have a loose item in my pixel c causing the backlight to not light up, when it doesn’t i can bang on the device and it will come on.

    my question is if i am able to remove the screen in one piece what type of adhesive do i need to re-glue it also leaving it able to be re heated to be removed in the future if need be

    wambobby -

  5. i4Z5EZIEsSI36byL

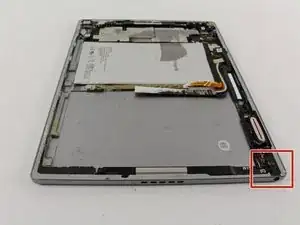

    • Orient the device so that the headphone jack is in the bottom right corner.

  6. uM2Ko45MTvffdhgW
    uM2Ko45MTvffdhgW
    y3wKLEEDTFGcMPjE

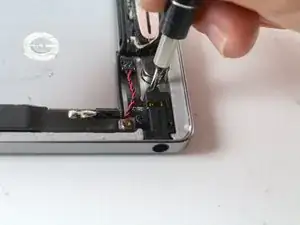

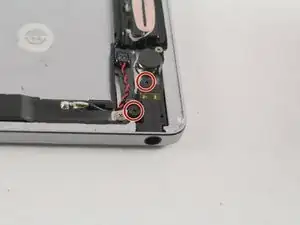

    • Remove the two 3.5mm Phillips #000 screws.

  7. TdHxdMNNtbXEJshX

    • Locate and remove the two 2.5mm Phillips #000 screws on either side of the wire coil.

  8. qdlntCriL4EfqcmA
    qdlntCriL4EfqcmA
    rcYGPSPGuOvctJeR

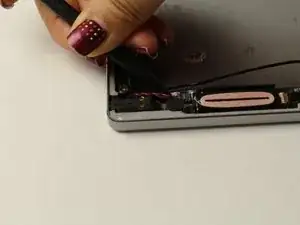

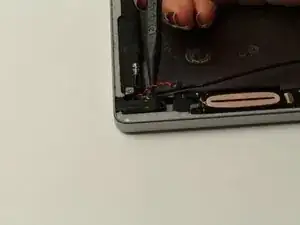

    • Detach the red and black cable using a narrow spudger.

  9. JbgTMHT1JZFtW5Wg
    JbgTMHT1JZFtW5Wg
    RdAZVdPHVB53GyqT

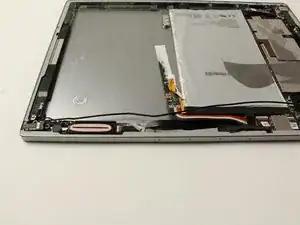

    • Detach the cable connecting to the headphone jack.

  10. adlGArEey1W2IhZB
    adlGArEey1W2IhZB
    NAtPLfWT1tlVmBUr

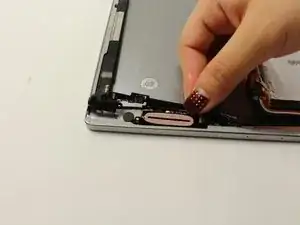

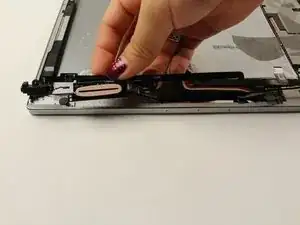

    • Lift the headphone jack, coiled wire, and cable, peeling the adhesive back.

    • Reassembly will require adhesive to ensure that the components are secured to the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
