Use this guide to remove and replace the front-facing camera of your Google Pixel Slate.
-
-
Orient the Google Pixel Slate so that the screen is facing upwards.
-
Use the iFixit opening tool to separate screen from main body.
-
Use the suction cup to remove the screen from the body of the device.
-
-
-
Gently disconnect the three flat-wires from the screen.
-
Carefully separate and remove the screen from the body of the device.
-
-
-

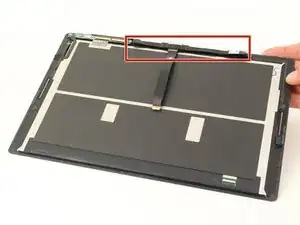

Once removed, place the screen face down.
-

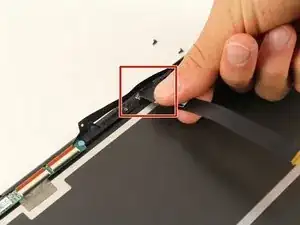

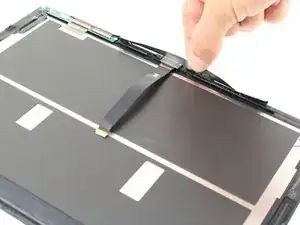

Peel back the black, adhesive strip covering the front camera so that the silver plate is exposed.
-
-
-

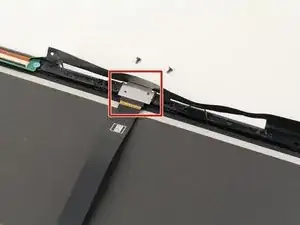

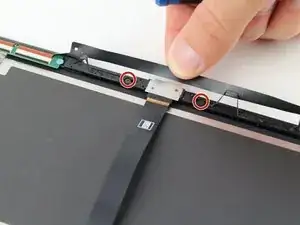

Hold back the adhesive tape to expose the two black 2mm screws that are holding down the cover plate.
-

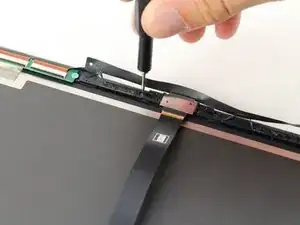

Use the T2 Torx screwdriver to remove the two 2mm screws.
-
To reassemble your device, follow these instructions in reverse order.
The tool and suction does not work for me. The adhesive is too strong.
beep -
It’s so easy to crack the screen here. I recommend using heat to soften the bond and avoid cracking the screen. Ideally a heating pad ($$$), but a heat gun or hair dryer also does the trick. I’ve seen a temperature range of 80-90 C (matching specs from a heating pad). I heated a pizza stone to temperature to make a homemade heating pad. That worked to soften the adhesive here.
