Einleitung
This guide will show you how to remove and replace the screen from Google Pixel Slate.
A screen replacement is necessary if your screen display is cracked or damaged that can inhibit the view and touchscreen functionality of the device.
Before you start, make sure to completely turn off the power of the phone and disconnect all external power sources.
Please be aware that the replacement of the screen must be done with great care, as you can potentially damage other parts of the device.
Werkzeuge
-
-
Orient the Google Pixel Slate so that the screen is facing upwards.
-

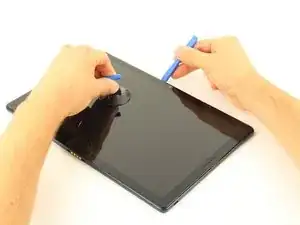

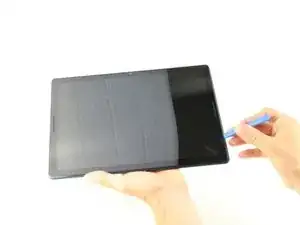

Use the iFixit opening tool to separate screen from main body.
-

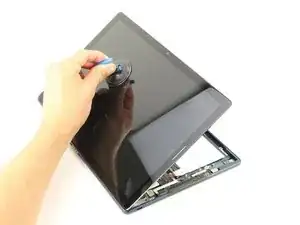

Use the suction cup to remove the screen from the body of the device.
-
-
-

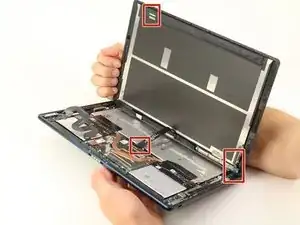

Gently disconnect the three flat-wires from the screen.
-

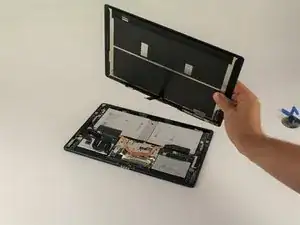

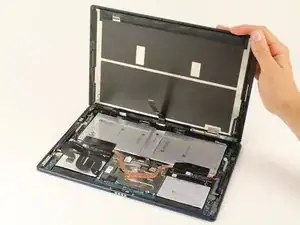

Carefully separate and remove the screen from the body of the device.
-
To reassemble your device, follow these instructions in reverse order.
11 Kommentare
Where did you source the replacement screen? Can we get a link added to the parts list?
Anyone know where to source the replacement screen? Any help would be greatly appreciated.
Yeah, I could use the replacement source as well. Thanks.
The tool and suction does not work for me. The adhesive is too strong.
beep -
It’s so easy to crack the screen here. I recommend using heat to soften the bond and avoid cracking the screen. Ideally a heating pad ($$$), but a heat gun or hair dryer also does the trick. I’ve seen a temperature range of 80-90 C (matching specs from a heating pad). I heated a pizza stone to temperature to make a homemade heating pad. That worked to soften the adhesive here.
beep -
