Einleitung
This guide walks you through the process of removing a speaker from a Google Pixel Slate. Before attempting to proceed with this guide, a user should understand how to use a screwdriver. In order to replace the speaker and reassemble the device, follow the steps in reverse.
-
-
Orient the Google Pixel Slate so that the screen is facing upwards.
-
Use the iFixit opening tool to separate screen from main body.
-
Use the suction cup to remove the screen from the body of the device.
-
-
-
Gently disconnect the three flat-wires from the screen.
-
Carefully separate and remove the screen from the body of the device.
-
-
-

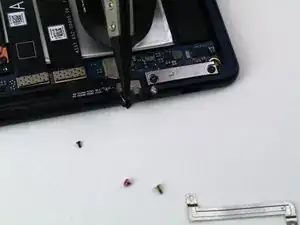

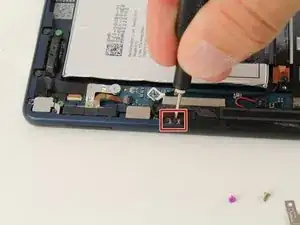

Use the T2 Torx screwdriver to remove the yellow 2mm screw from the thin metal plate.
-

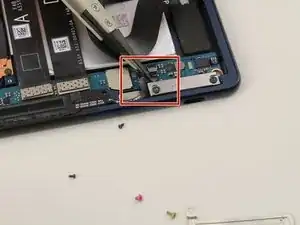

Use the T3 Torx screwdriver to remove the pink 3mm screw from the thin metal plate.
-
Remove the thin metal plate from the device.
-
-
-

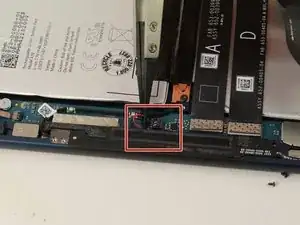

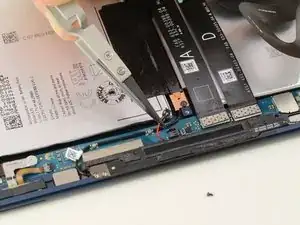

Use the Nylon-Tipped Tweezers to disconnect the black tape-like plug connected to the speaker.
-
-
-

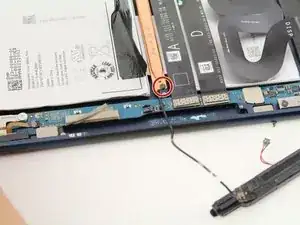

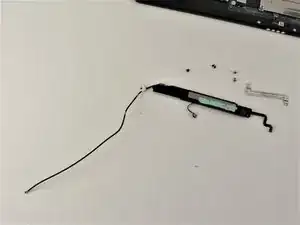

Detach the speaker wire from the motherboard.
-

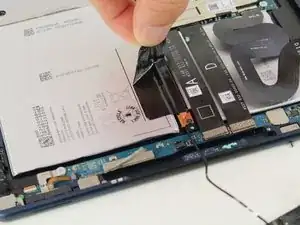

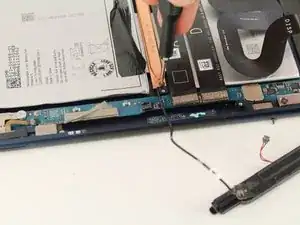

Remove the adhesive strips that hold down the speaker wire.
-
-
-

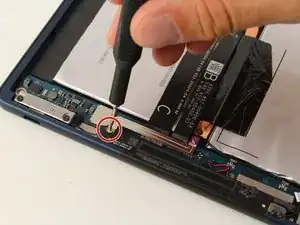

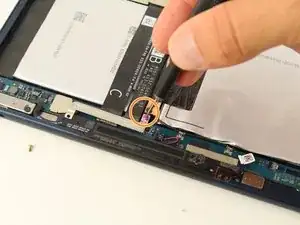

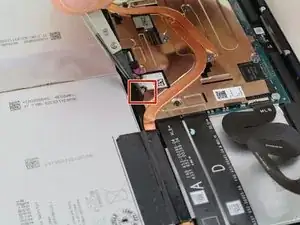

Use the T2 Torx screwdriver to remove the 2mm black screw from the brass plate.
-

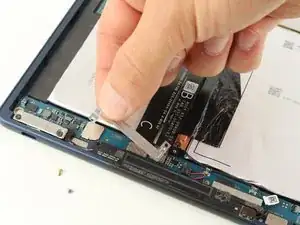

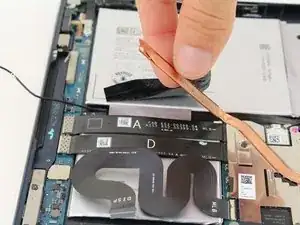

Pull back the brass plate.
-
To reassemble your device, follow these instructions in reverse order.
The tool and suction does not work for me. The adhesive is too strong.
beep -
It’s so easy to crack the screen here. I recommend using heat to soften the bond and avoid cracking the screen. Ideally a heating pad ($$$), but a heat gun or hair dryer also does the trick. I’ve seen a temperature range of 80-90 C (matching specs from a heating pad). I heated a pizza stone to temperature to make a homemade heating pad. That worked to soften the adhesive here.
