Einleitung
In this guide, you will learn how to replace the left charging port on your Google Pixelbook to fix charging issues.
-
-
Use the iFixit opening tools or a metal spudger to pry the rubber covers off the back of your Pixelbook.
-

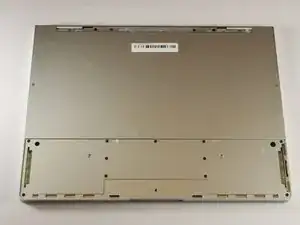

Peel the linings off completely until the back of the Pixelbook looks bare.
-
-
-

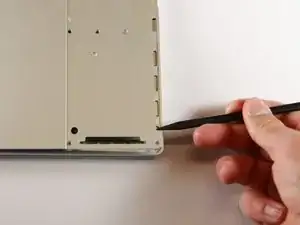

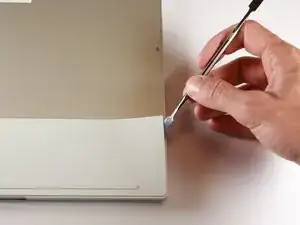

Use the nylon spudger to pry the edge of the Pixelbook up until you can grab the edge with your fingers.
-

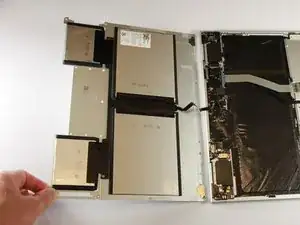

Open the back panel completely and lay it flat so you see the whole inside of the computer.
-
-
-

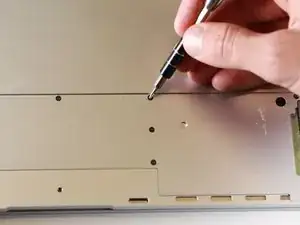

Remove the yellow 2.0mm screw from the middle of the panel by using the T3 Torx screwdriver to turn the screw counterclockwise.
-
-
-
Disconnect the flat, black cord from the main component by using a spudger to push it out of the slot, or by using your hand to carefully pull it out.
-
Your back panel is now free from the main component.
-
-
-

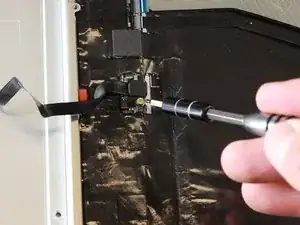

Remove the two 3.0mm silver screws from the thin, black component by using a T3 Torx screwdriver to turn the screws counterclockwise.
-
-
-

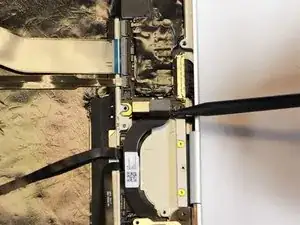

Disconnect the thin, black and white cord from the motherboard by using the spudger to snap the connector up and out of place.
-
-
-
Remove the thin, black component by pulling it up and out of the laptop with your fingers.
-
-
-

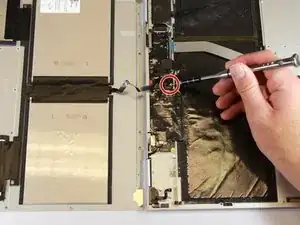

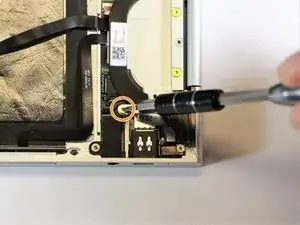

Remove the gold 2.0mm corner screw by turning it counterclockwise with a T3 Torx screwdriver.
-
-
-

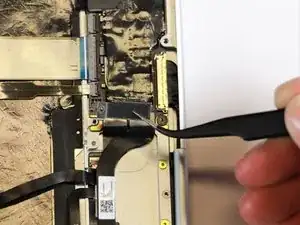

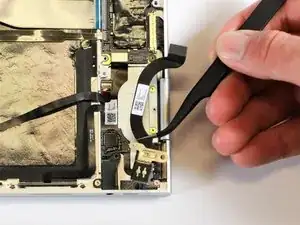

Using needle-nose tweezers, remove the silver casing by lifting it up and out of the computer.
-
-
-
Remove the three 3.0mm black screws on the right side by using a T5 Torx screwdriver to turn the screws counterclockwise.
-

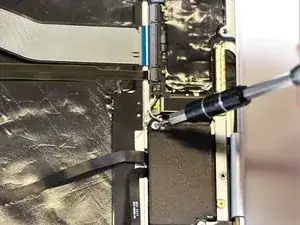

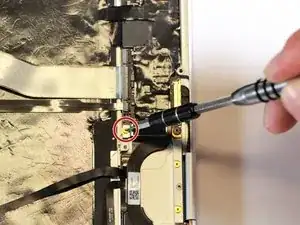

Remove the silver 2.0mm screw on the left side by using a T3 Torx screwdriver to turn the screw counterclockwise.
-
-
-

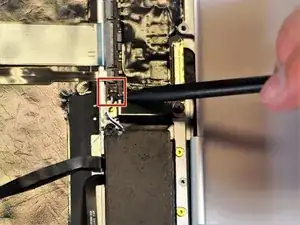

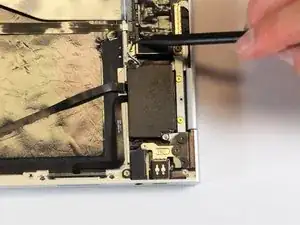

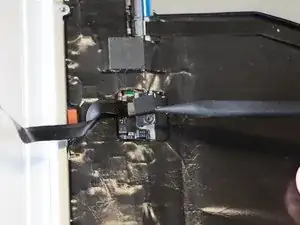

Disconnect the thin, black ribbon cable by using the spudger to lift it up from the computer.
-
-
-

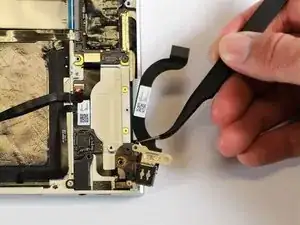

Use the needle-nose tweezers to remove the charging port by lifting the component up and out of the Pixelbook.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
Where to get replacemt charging port from please
Where can we get a replacement charging port for the Pixelbook Go 2 (i7)?
After using the spurger to start lifting the rubber like cover at a corner, a two inch wide paint scrapper proved to be an easy way to continue. Using the scrapper at roughly a 30 degree angle (with respect to the laptop rectangle) allowed progressive lifting of the cover. Ripping of the cover tended to occur if only the narrow spurger was used.
Marvin Stodolsky -
Please i need to buy the motherboard
This my email chikaubah33@yahoo.com
chika ubah -
The narrow rubber foot at the base of the display is supported by bendable metal. Be careful how evenly you remove it as uneven motions will result in a more bent and harder to re-apply piece.
