Einleitung

In this guide, you will learn how to replace the right charging port on your Google Pixelbook to fix charging issues.

  1. fBlrlGgslxP2nxM4
    fBlrlGgslxP2nxM4
    1ol2EHpPeINwjUWP
    BSJwHoMleKY5wZrc
    • Use the iFixit opening tools or a metal spudger to pry the rubber covers off the back of your Pixelbook.

    • Peel the linings off completely until the back of the Pixelbook looks bare.

    After using the spurger to start lifting the rubber like cover at a corner, a two inch wide paint scrapper proved to be an easy way to continue. Using the scrapper at roughly a 30 degree angle (with respect to the laptop rectangle) allowed progressive lifting of the cover. Ripping of the cover tended to occur if only the narrow spurger was used.

    Marvin Stodolsky -

    Please i need to buy the motherboard

    This my email chikaubah33@yahoo.com

    chika ubah -

    The narrow rubber foot at the base of the display is supported by bendable metal. Be careful how evenly you remove it as uneven motions will result in a more bent and harder to re-apply piece.

    Meta Data -

  2. ujFHV24exWMcLwC6
    ujFHV24exWMcLwC6
    QnPGxD3D2fsMqLZ3
    • Remove the two yellow 2.0mm screws by using a T3 Torx screwdriver.

  3. XkXTc1bQFnvkLSJp
    XkXTc1bQFnvkLSJp
    juHrNhkwRtQS1pZh
    XLWEBOPaEYdCpaY1
    • Remove the seventeen 3.0mm T5 Torx screws from the bottom panel.

    Just a heads up on “Step 3”: (not sure if maybe mine is a newer model since I just got it about a week ago) But there are only 15 of the T5 Screws on mine… Not 17. There are only 2, instead of 4, screws at the top of the picture (located at the hinge) showing the back where they are all circled.

    Jeff Lewis -

    I had the same experience as Jeff.

    Paul Schreiber -

    same, there are only two screws up top, not 4, thus 15 total

    Meta Data -

  4. DMZstGpyFEuGlSGm
    DMZstGpyFEuGlSGm
    KcVOqnNaONt1gZoH
    o1USKUKMnBRibeTT
    • Use the nylon spudger to pry the edge of the Pixelbook up until you can grab the edge with your fingers.

    • Open the back panel completely and lay it flat so you see the whole inside of the computer.

  5. 1Wr4uGkGVQx1V4DC
    1Wr4uGkGVQx1V4DC
    kq4AGbdtfNLculoJ
    • Remove the yellow 2.0mm screw from the middle of the panel by using the T3 Torx screwdriver to turn the screw counterclockwise.

    For me, these were T4 and not T3 screws (everything labelled T3 was a T4 for me).

    Paul Schreiber -

  6. pcBGPF3sTkC1ib2R
    pcBGPF3sTkC1ib2R
    CYqyUHm3QSAWb2YZ
    • Remove the small, black casing by using the spudger to lift it up from its place.

  7. C4HBMGvP3FFFOp2N
    • Disconnect the flat, black cord from the main component by using a spudger to push it out of the slot, or by using your hand to carefully pull it out.

    • Your back panel is now free from the main component.

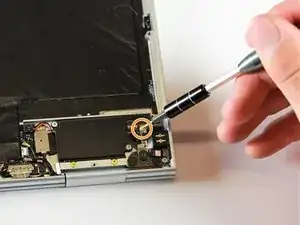

  8. XhOTE1D6OqTFRREG
    XhOTE1D6OqTFRREG
    WbJEsMhxthBSwYei
    • Remove the three 2.0mm black screws from the sound card by using a T5 Torx screwdriver to turn them counterclockwise.

    • Remove the gold 3.0mm screw by using a T3 Torx screwdriver to turn it counterclockwise.

    There is a step missing to remove the two silver 3mm screens from the black component.

    Scott Jones -

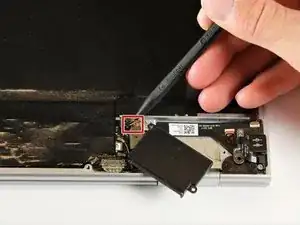

  9. I3EHq25W3OxfSFR4
    • Disconect the thin, black and red cord from the motherboard by using the spudger to snap the connector up and out of place.

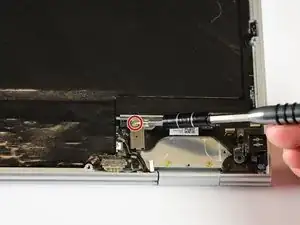

  10. EBXmi1dANWMDqsM3
    • Remove the yellow 2.0mm screw by using the T3 Torx screwdriver to turn the screw counterclockwise.

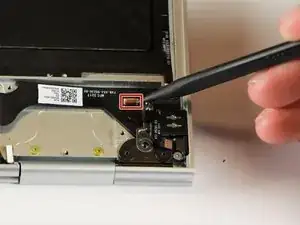

  11. JYNTYvb4KdIfmqW6
    • Remove the small, red component by lifting it up with the spudger.

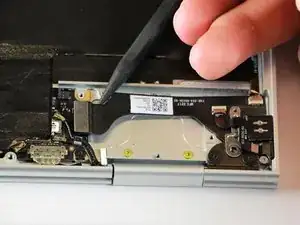

  12. ZMLPjSNeGhQQXcaL
    • Disconnect the metal component of the thin, black component by lifting it up with the spudger.

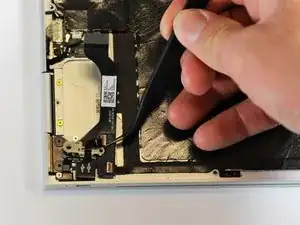

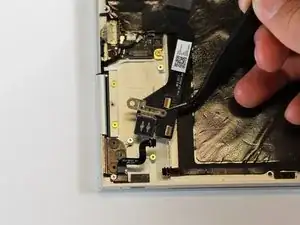

  13. faiDCMQrTmrUcSgy
    faiDCMQrTmrUcSgy
    KnpLAkfLvQYrUbAV
    • Remove the right charging port by picking it up with the tweezers and lifting it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
