Einleitung
In this guide, you will learn how to replace the sound card.
-
-
Use the iFixit opening tools or a metal spudger to pry the rubber covers off the back of your Pixelbook.
-
Peel the linings off completely until the back of the Pixelbook looks bare.
-
-
-
Use the nylon spudger to pry the edge of the Pixelbook up until you can grab the edge with your fingers.
-
Open the back panel completely and lay it flat so you see the whole inside of the computer.
-
-
-
Remove the yellow 2.0mm screw from the middle of the panel by using the T3 Torx screwdriver to turn the screw counterclockwise.
-
-
-
Disconnect the flat, black cord from the main component by using a spudger to push it out of the slot, or by using your hand to carefully pull it out.
-
Your back panel is now free from the main component.
-
-
-
Remove the three 2.0mm black screws from the sound card by using a T5 Torx screwdriver to turn them counterclockwise.
-
Remove the gold 3.0mm screw by using a T3 Torx screwdriver to turn it counterclockwise.
-
-
-
Disconect the thin, black and red cord from the motherboard by using the spudger to snap the connector up and out of place.
-
-
-
Remove the yellow 2.0mm screw by using the T3 Torx screwdriver to turn the screw counterclockwise.
-
-
-

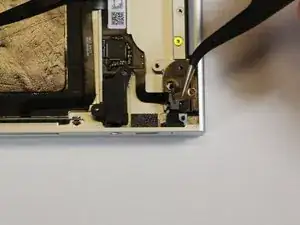

Disconnect the metal component of the thin, black component by lifting it up with the spudger.
-
-
-

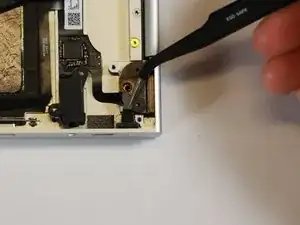

Remove the right charging port by picking it up with the tweezers and lifting it from the computer.
-
-
-
Use the spudger to disconnect the sound card from the motherboard by pulling the connector up and away from the motherboard.
-
-
-

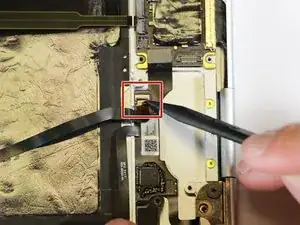

Flip open the connection point on the sound card by using the spudger to pop the latch upward.
-

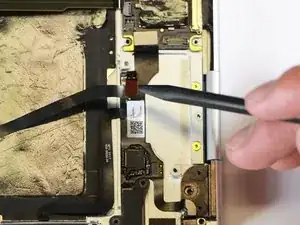

Disconnect the black ribbon cable from the sound card by using the spudger or your fingers to pull the cable out and away from the connecting port.
-
-
-
Use the needle-nose tweezers to remove the silver casing by lifting it up and out of the laptop.
-
-
-
Disconnect the speaker from the laptop frame by pulling the black ribbon cable out and away from the port.
-
-
-
Use a T3 Torx screwdriver to remove the two silver 3.0mm screws located on the vertical edge of the casing by turning the screws counterclockwise.
-
-
-

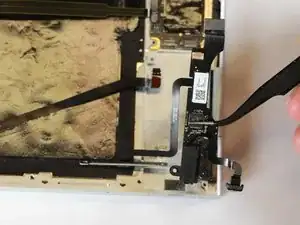

Use the needle-nose tweezers to remove the sound card by lifting it up and out of the laptop.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Great guide. My headphones broke inside the jack, tried many different techniques to get it out and am now looking to just replace the jack or soundcard. Anyone have any ideas where to source these parts? Looked everywhere, Inc eBay.
After using the spurger to start lifting the rubber like cover at a corner, a two inch wide paint scrapper proved to be an easy way to continue. Using the scrapper at roughly a 30 degree angle (with respect to the laptop rectangle) allowed progressive lifting of the cover. Ripping of the cover tended to occur if only the narrow spurger was used.
Marvin Stodolsky -
Please i need to buy the motherboard
This my email chikaubah33@yahoo.com
chika ubah -
The narrow rubber foot at the base of the display is supported by bendable metal. Be careful how evenly you remove it as uneven motions will result in a more bent and harder to re-apply piece.
