Grace Digital Mondo Display Cover Replacement

Geschrieben von: Nathaniel Brabham
  • Kommentare: 7
Grace Digital Mondo Display Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

The Grace Digital MONDO is a fairly easy device to deconstruct. The replacement of a display glass includes mainly removing screws, so, as long as you're content on the whole "lefty loosey, righty tighty" phrase, you should be well off for this guide.

  1. KnSxURNBwqpATH1M

    • Remove (2) screws (14 mm) with a PH1 screwdriver on the device.

    • There is one screw on the back left, and another just below it on the bottom of the device.

  2. jJTKtCDmQJSGjK5y
    jJTKtCDmQJSGjK5y
    pTTPHNakxZPm3bCX

    • Use a plastic spudger to remove the front preset selection buttons.

    • We recommend you remove all of them for easier access.

    • Gently reach underneath and pull off the mesh speaker cover. It only clips in so don't worry about breaking anything.

    “it only clips”

    Broke 3/4 “clips” on the first try,

    you should be worried.

    Andrew King -

  3. WZIlPuNfIONyAwTj

    • Remove (4) screws (14 mm) with a PH1 screwdriver on the front panel by the speaker.

    • Be careful with these screws, as they can be stripped easily.

  4. BuaVNGSAJdsghTNF

    • Move the metal spudger around the front panel to remove any adhesive attaching the front panel to the device.

    • Pull apart the front panel from the device with help from the metal spudger.

  5. PGKlsQl3LwAmqdPE
    PGKlsQl3LwAmqdPE
    udF6fTRLhJeoCMlE
    Snl1fSd2Iw3GFSof

    • Detach a pin connector at the top of the device using a metal spudger to open up the inner components.

    • Detach (4) pin connectors inside using a metal spudger to separate the front panel from the rest of the device.

    is the battery permanent or can be replaced?

    Murray L. Berkowitz -

  6. nGVqk2VRF4UkMZ4k

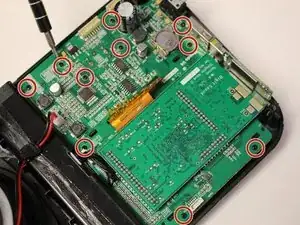

    • Remove (10) screws (7 mm) with a PH1 screwdriver on the motherboard.

  7. xecLa5LOigj16y4J

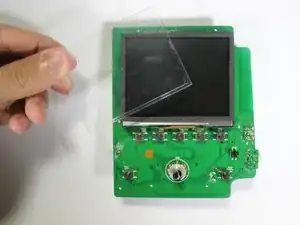

    • Separate the display and motherboard from the front panel of the device.

    • Remove the display glass.

Abschluss

To reassemble your device, follow these instructions in reverse order.
