Graco Literider Classic Connect Seat Replacement

Geschrieben von: Tyler Laird
  • Kommentare: 0
Graco Literider Classic Connect Seat Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide shows how to locate the screws and fasteners, as well as how to remove them. It also shows how to remove the seat from the frame.

  1. mK6FURgS6cN3WEEl
    mK6FURgS6cN3WEEl
    1qvEbytFOKFHMBPJ

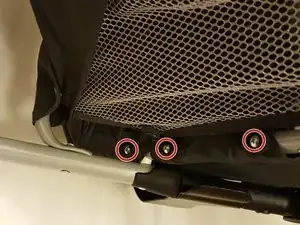

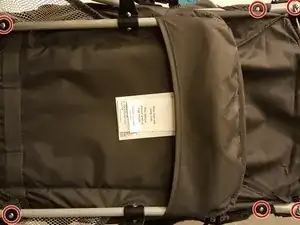

    • Flip the stroller over so the back of the seat points upward.

    • Locate the twelve 12 mm Phillips screws holding the fabric to the frame of the stroller. Six are found along the back of the seat, and the other six are along the bottom of the seat.

  2. 4nPQejcJbrrOFXqD
    4nPQejcJbrrOFXqD
    sEgFnOHUTAfZMpAp

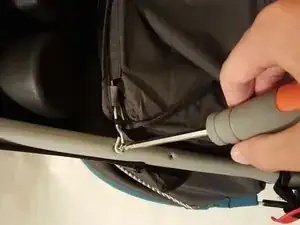

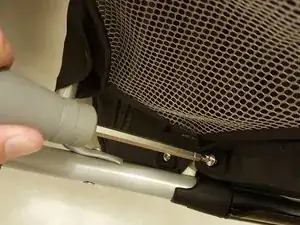

    • Using a Phillips #1 screwdriver, remove the twelve 12 mm screws and set them aside.

  3. UFSmPopb6JAwfHp6
    UFSmPopb6JAwfHp6
    bIdPYp5wL3BbnD3a

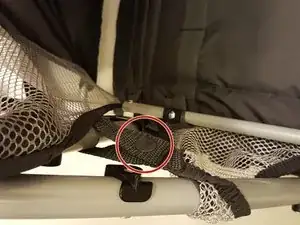

    • Locate the two buttons holding the fabric basket frame on either side of the stroller.

    • Unbutton the two buttons.

  4. CPNVXRTGdxYVkPu1
    CPNVXRTGdxYVkPu1
    BfOpUhcsqQUUrINI

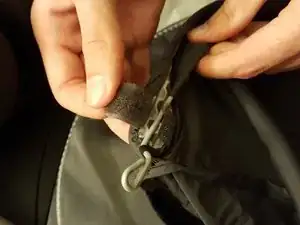

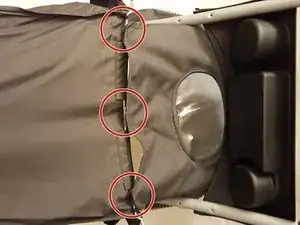

    • Locate the three velcro straps holding the seat to the canopy.

    • Undo the three straps.

  5. yvivSMSorCKPuV3b

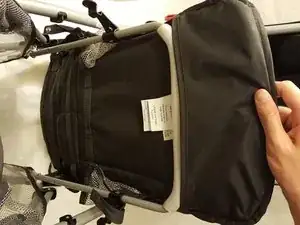

    • Remove the seat from the frame.

    • When replacing the seat on the frame, some additional force may be required to insert the screws into their proper places.

Abschluss

To reassemble your device, follow these instructions in reverse order.
