Graco Paint Sprayers 17C325 2015 Gun Filter Replacement

Geschrieben von: Craig Lloyd
  • Kommentare: 4
Graco Paint Sprayers 17C325 2015 Gun Filter Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

Follow this guide to clean out a clogged—or replace a damaged—filter in the spray gun for the Graco Paint Sprayer 17C325.

  1. 6sm1WJodMqVCIWsP
    6sm1WJodMqVCIWsP
    QaRaZSulGP1wCStV
    RLWWjUW1IwaXHmqo

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before disconnecting and disassembling the spray gun.

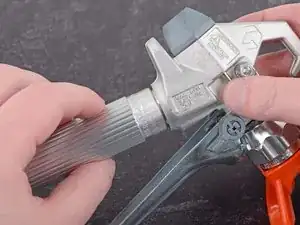

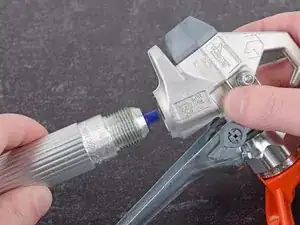

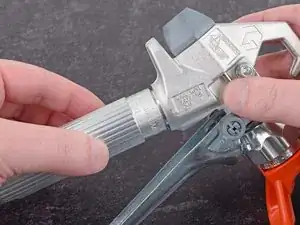

    • Unscrew and remove the handle from the spray gun body.

    • You may need to use a pipe wrench to loosen the handle before removing it.

  2. rcXuQFdmFLX4knoh
    rcXuQFdmFLX4knoh
    FTKksW6n1OVPaKKD
    xWIdoOTY54LtcQSQ

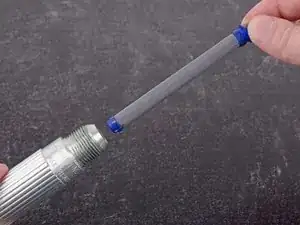

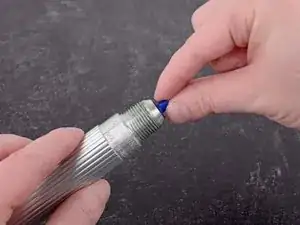

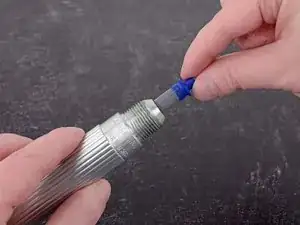

    • Use your fingers to remove the blue-tipped filter from the inside of the handle.

    It is great to show the simple thing, however part numbers for the screen would have been more helpful

    MARTIN -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Craig Lloyd

Mitglied seit: 10/02/16

30062 Reputation

3 Kommentare

It would be beneficial to have the part numbers in this information as well! Otherwise, great job! Thanks

JANET -

part number for the gun filter??????

BRITTINEY -

288749 60 mesh gun filter

RICHARD -
