Graco Paint Sprayers 17C325 2015 Pump Rebuild

Geschrieben von: Craig Lloyd
  • Kommentare: 0
Graco Paint Sprayers 17C325 2015 Pump Rebuild

Schwierigkeitsgrad

Moderate

Schritte

27

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

Follow this guide to disassemble and rebuild a leaky or clogged pump for the Graco Paint Sprayer, model 17C325.

Note: The pump’s rebuild kit comes with four black leather packing O-rings. Soak them in a cup of SAE 30 motor oil for an hour before installing them in the pump.

As you disassemble the pump, take the time to clean all the parts with soap, water, and a brush before reassembly, and replace any worn-out parts as needed, which are provided in the pump repair kit (part # 18B260).

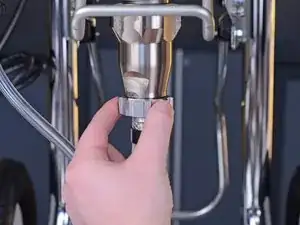

  1. 2qmPm3IDIigRjAsQ
    2qmPm3IDIigRjAsQ
    xngGk4CdYwPJPHKB

    • Before you begin, make sure to follow the pressure relief procedure documented in the user manual before powering down the paint sprayer and disconnecting the pump.

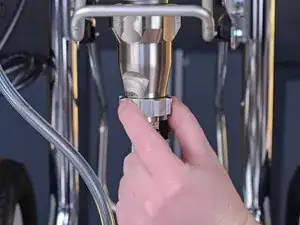

    • Use your fingers to unscrew the jam nut securing the suction tube to the bottom of the pump.

    • You may need to use groove joint pliers to loosen the nut.

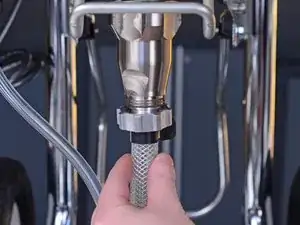

  2. BuJ6NwXEQB4bAnvV
    BuJ6NwXEQB4bAnvV
    uePIcG23KAts5qnV

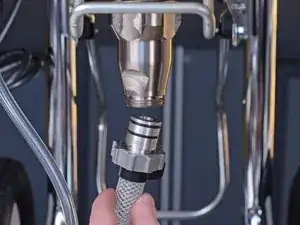

    • Pull the suction tube straight down to disconnect it from the bottom of the pump.

  3. fkXPG1BUOjDZqqpW
    fkXPG1BUOjDZqqpW
    RYSXQOqjRquPigFD

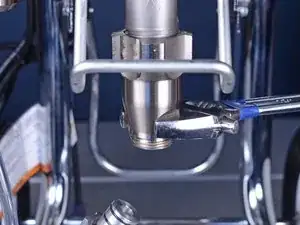

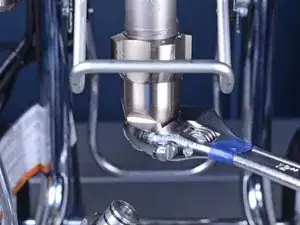

    • Use an adjustable wrench to loosen the intake valve on the pump.

    • Do not completely unscrew and remove the intake valve. You will perform this in a later step.

    • During reassembly, torque the intake valve to 70-80 ft. lbs.

  4. CWpoKDuinrMNfVPe
    CWpoKDuinrMNfVPe
    V6xnZNnlmWIRe4ky
    ty5jxFkqNFiEOTKV

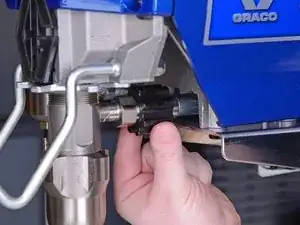

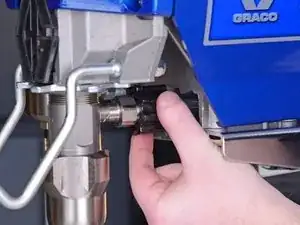

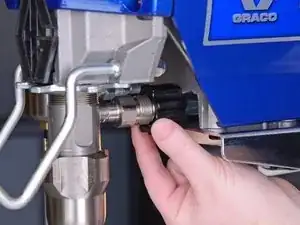

    • Use your fingers to unscrew and loosen the connector securing the hose to the pump.

    • You may need to use groove joint pliers to loosen the connector.

    • Once unscrewed, push the connector back to reveal the hose connection.

  5. XMXaCcr54IQLPlRF
    XMXaCcr54IQLPlRF
    ufJ5kIVQCUNp6Ohv

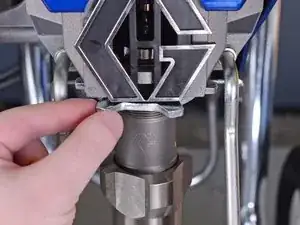

    • Use your fingers to unscrew and loosen the jam nut securing the pump to the paint sprayer.

    • You may need to use a mallet to gently tap on the nut's teeth to loosen it.

    • During reassembly, tap on the teeth using a mallet until the jam nut is snug.

  6. exUs2RdAHLTYWrCm
    exUs2RdAHLTYWrCm
    5a6UQJqnISpDOPJC

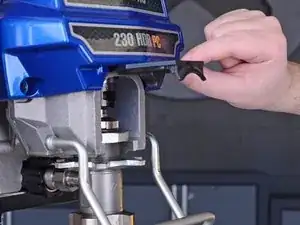

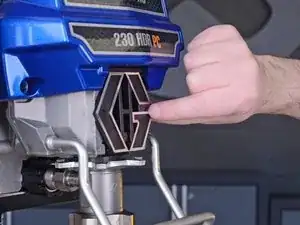

    • Lift up the pump rod cover to reveal the pump's connection to the paint sprayer.

  7. DWSTurBTa3gDNCgh
    DWSTurBTa3gDNCgh
    1vBQFJwcC1fiIPaW

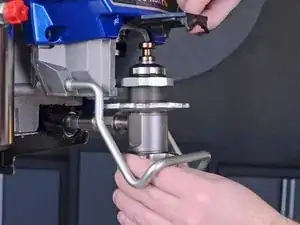

    • Pull the pump straight out of the drive housing.

    • The back of the pump is still connected to a hose. You'll remove it in the next step.

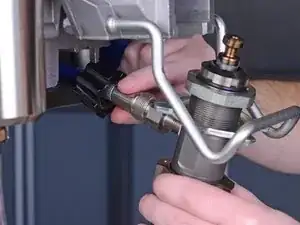

  8. 3ALXA2Nrb4lGAtHo
    3ALXA2Nrb4lGAtHo
    1t36osTZoeO3qHWU
    IYQxkxDsPWehAkUU

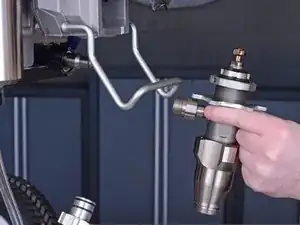

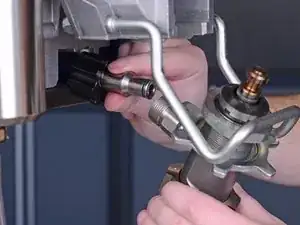

    • Pull the rear pump hose straight off of the pump.

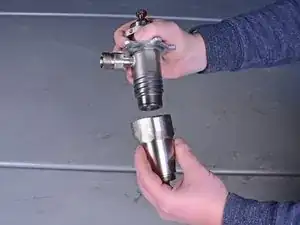

    • Remove the pump from the paint sprayer.

  9. fFLshDrtaSxnBHVe
    fFLshDrtaSxnBHVe
    TOEkHDhKYwuSTCbZ
    4kXIGeGQ2OOXassf

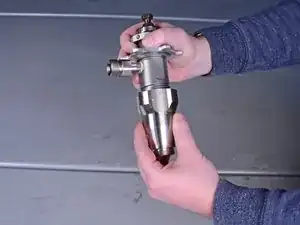

    • Unscrew and remove the intake valve from the pump cylinder.

  10. PJSi6QELXefYYZI5
    PJSi6QELXefYYZI5
    BcKSGeFAmoJUvTnY
    PNaKjN3T63nWjfP2

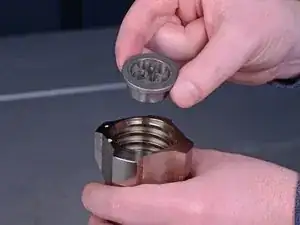

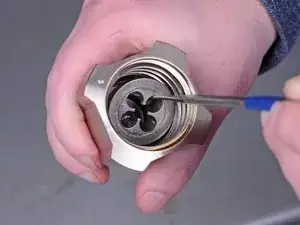

    • Use a pick tool to remove the metal ball seat from the bottom of the intake valve.

  11. AJ4QyxpPWk4DefD4
    AJ4QyxpPWk4DefD4
    pZp6yQIJMdffhwcJ

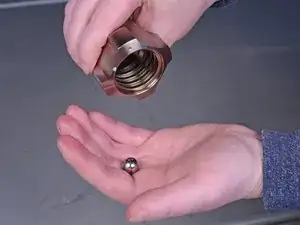

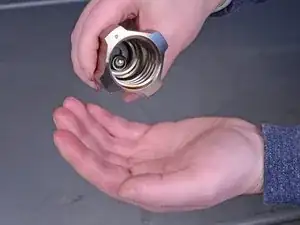

    • Tip the intake valve upside down to remove the inlet ball.

    • Replace the inlet ball with the new inlet ball included in the pump repair kit.

  12. cECSDATQQNu5CyEQ
    cECSDATQQNu5CyEQ
    D2FwvdB6qLygcYtG
    gRdNiMQe5pyhpvBO

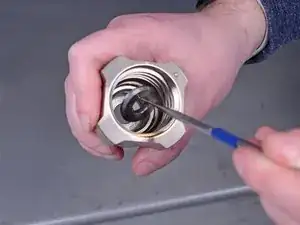

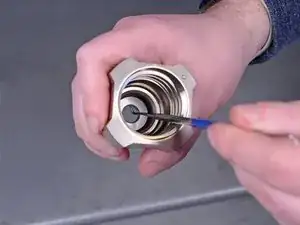

    • Use a pick tool to remove the ball seat washer from the bottom of the intake valve.

  13. RmZKqy4q6QjGhE2M
    RmZKqy4q6QjGhE2M
    jKXw3eCt4BI1ltbq
    pfwpLC1YA1P2lwyQ

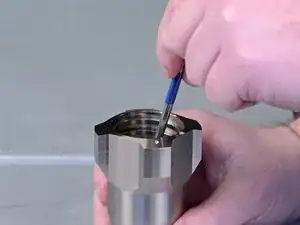

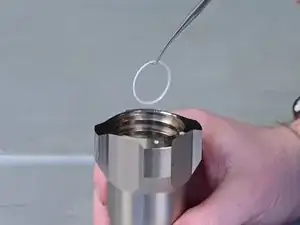

    • Use a pick tool to remove the thin white O-ring at the bottom of the intake valve.

    • Replace this O-ring with the new O-ring included in the pump repair kit.

  14. Tbh4dRdCYRuBc6ua
    Tbh4dRdCYRuBc6ua
    rqTUEHDI3xRqFCNw
    XI5Qp2lCmw3UInNX

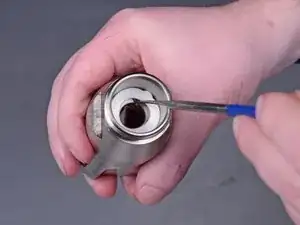

    • Turn the intake valve upside down and use a pick tool to remove the white gasket.

    • This gasket doesn't need replaced, but be sure to clean it before reinstallation.

  15. kkwvLPaXMeA4rNPd
    kkwvLPaXMeA4rNPd
    yVBN1LAvrlJmTQHi
    IcCArnZYaDsXgVhR

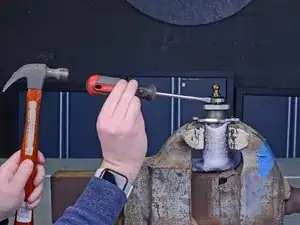

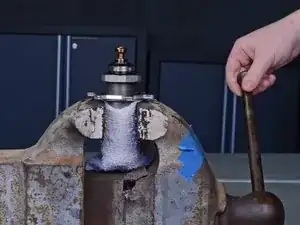

    • Place the pump cylinder into a vise.

    • Wrap the cylinder in a rag to prevent scratching the outside of the cylinder.

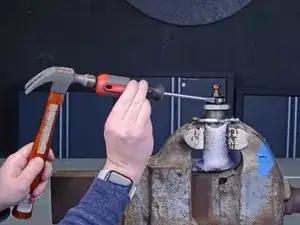

    • Use a flathead screwdriver and mallet to unscrew and loosen the top jam nut.

  16. nlpxtNkNkCMsDXuP
    nlpxtNkNkCMsDXuP
    dIoLRhNfQqFevNuu
    pXwHtjIEyUpWy2SH

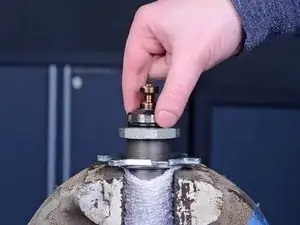

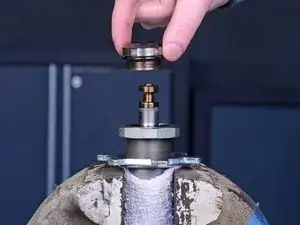

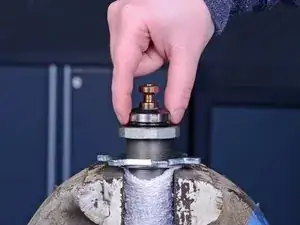

    • Continue unscrewing the top jam nut with your fingers to remove it.

    • During reassembly, torque the top jam nut to 70-80 in. lb.

  17. KCXFwm26GJvhe3Zt
    KCXFwm26GJvhe3Zt
    ysT2LW6B1AFUYtjX
    AylpomlDx4qVJcdT

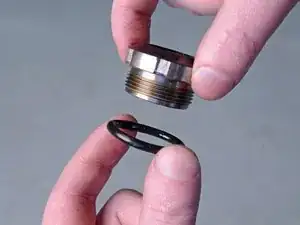

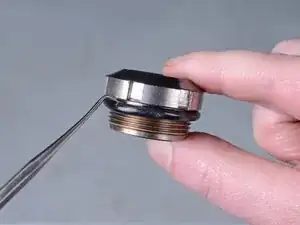

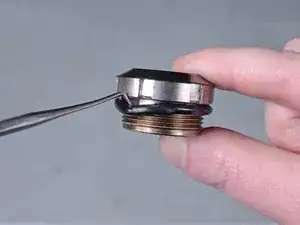

    • Use a pick tool to remove the black O-ring from the top jam nut.

    • Replace this O-ring with the new O-ring included in the pump repair kit.

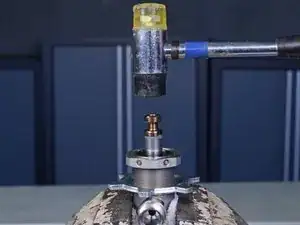

  18. XiJqTIg4RhVLwNko
    XiJqTIg4RhVLwNko
    Ro65s1kfVKCWmMZb

    • With the pump cylinder still in the vise, use a mallet to gently tap down on the top of the piston rod to loosen it from the pump cylinder.

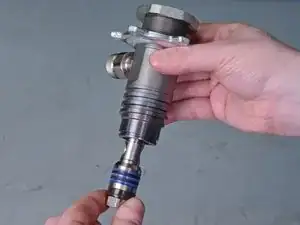

  19. YSFxZNgDQOieneKs
    YSFxZNgDQOieneKs
    uRCk3QNqHI4lkCLx
    Aobq2MiWOa3EYdHW

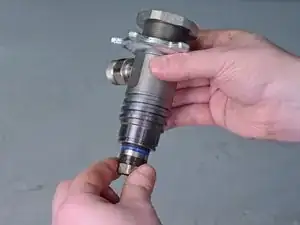

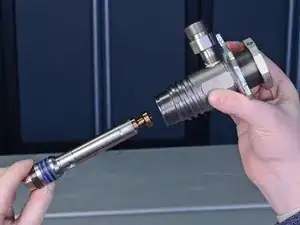

    • Remove the pump cylinder from the vise and pull the bottom of the piston rod completely out of the pump cylinder to remove it.

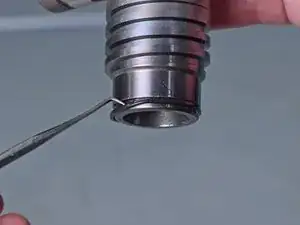

  20. eUeYmlNjZYPZyZjk
    eUeYmlNjZYPZyZjk
    1nEyMVeMRqFLPQap
    ONvGCcURlpcLqdwc

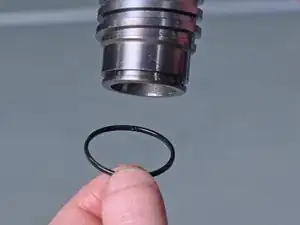

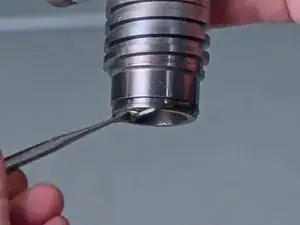

    • Use a pick tool to remove the black O-ring from the bottom of the pump cylinder.

    • Replace this O-ring with the new O-ring included in the pump repair kit.

  21. O5eVGxjYfQPxOSRB
    O5eVGxjYfQPxOSRB
    OGCFkZRTf6YRgJQW
    NOUwowMDEMokXs2n

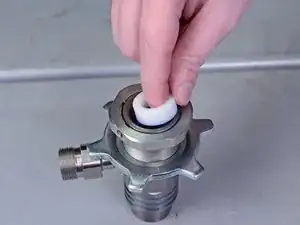

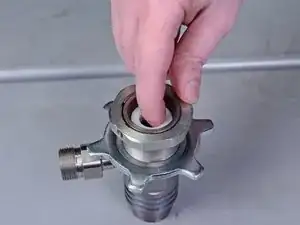

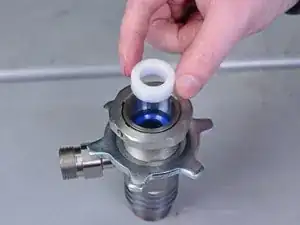

    • Use your fingers to grab and remove the white plastic gland from the top of the pump cylinder.

    • If the gland doesn't easily come out, skip to the next step.

    • Replace this plastic gland with the new plastic gland included in the pump repair kit.

  22. hPWrAarKfmcKbPHt
    hPWrAarKfmcKbPHt
    wZF6EOnHwOiduqUr
    IKXSRJYXjqyOJqWX

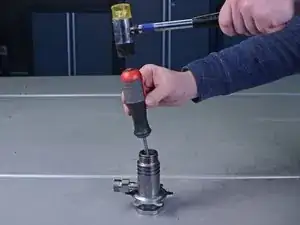

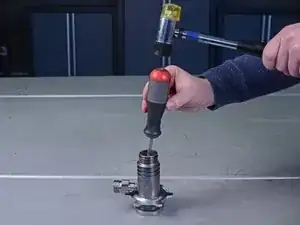

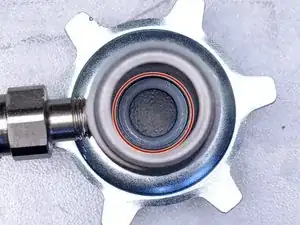

    • Flip the pump cylinder upside down and use a flathead screwdriver and mallet to gently tap the throat packing O-rings, loosening them from the cylinder.

  23. OSFUS1FRLVPQUfrr
    OSFUS1FRLVPQUfrr
    ZDCNxsSk6F5SswrU
    dENUAAJGxwsJcPYj

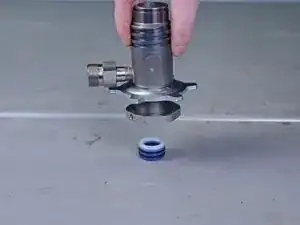

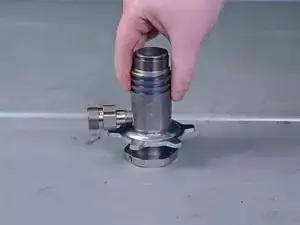

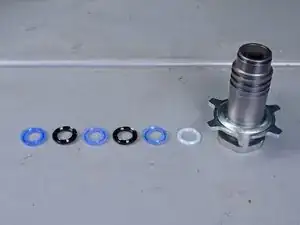

    • Lift up the pump cylinder to remove the throat packing O-rings.

    • There are a total of six O-rings stacked on top of each other. Take note of their orientation and order.

    • Replace all six O-rings with the new O-rings included in the pump repair kit.

    • The black O-rings are leather, and the new replacements need to be soaked in SAE 30 motor oil for an hour before reassembly.

  24. aCUFPCcWNagZhyny
    aCUFPCcWNagZhyny
    OWMuMcYyAUNQ5TrJ
    t4ZAyJDXsmODKWuu

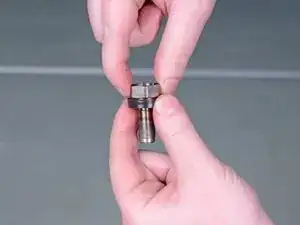

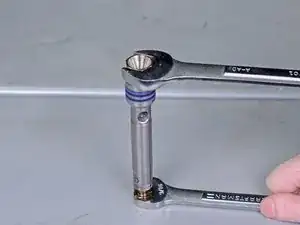

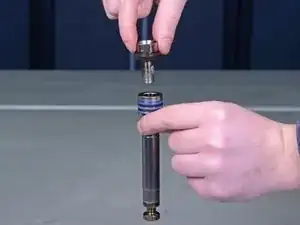

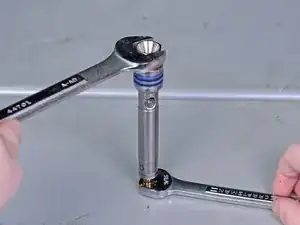

    • Use a 3/4" wrench to remove the piston valve bolt from the piston rod.

    • You can secure the piston rod in a vise, or use a 9/16" wrench to secure the bottom of the piston rod as you unscrew and loosen the bolt.

    • Remove the piston valve bolt from the piston rod.

  25. 1BSCHTHCKZCQRRsI
    1BSCHTHCKZCQRRsI
    qn4yXCRFsRn6WDGj

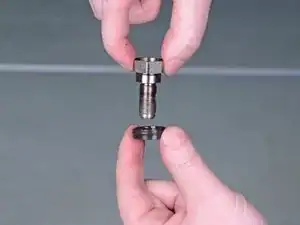

    • Remove the wiper bushing from the piston valve bolt.

    • Note the orientation of the wiper bushing. The flat side should point down.

    • Replace the wiper bushing with the new wiper bushing included in the pump repair kit.

  26. HIJPWEwVFUlhSLmR
    HIJPWEwVFUlhSLmR
    YNfXUV5SyJUG6fGi

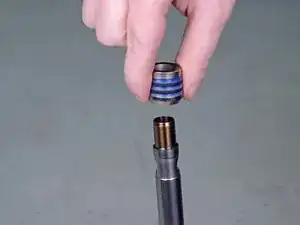

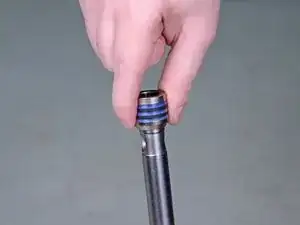

    • Use your fingers to remove the piston packing O-rings from the bottom of the piston rod.

    • If the O-rings are difficult to remove with your fingers, use a pair of groove joint pliers to remove them.

  27. tNNbOAWPC4U2QvrB
    tNNbOAWPC4U2QvrB
    f5qbNtmWtYFtBWFM
    2TGMeGVQKuCXomoc

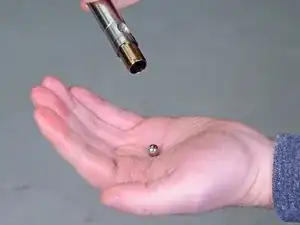

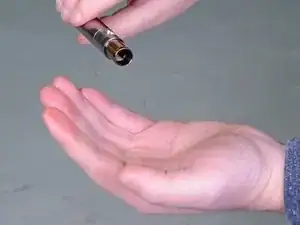

    • Tip the bottom of the piston rod over to remove the piston ball.

    • Replace the piston ball with the new piston ball included in the pump repair kit.

    • Not counting the wiper bushing, there are a total of five O-rings stacked on top of each other, placed in between two metal glands. Take note of their orientation and order.

    • Replace the six O-rings with the new O-rings included in the pump repair kit.

    • Replace the two metal glands with the new glands included in the pump repair kit.

    • The black O-rings are leather, and the new replacements need to be soaked in SAE 30 motor oil for an hour before reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
