Einleitung
The guide will show you how to replace the battery on the HKC p774A tablet. This is a difficult process, and the battery will need to be properly disposed of upon completion.
Werkzeuge
Ersatzteile
-
-
Insert the flat end of the spudger into the side of the device
-
This will create a gap between the device and screen housing.
-
Insert the plastic opening tool into this gap and move it along this gap.
-
The screen housing and device will now be separated.
-
-
-
Once the digitizer has been been removed from the body, disconnect the digitizer band from the motherboard.
-
Two small black pins (circled in red) will need to be unlocked.
-
Unlock the pins by pulling them outward with the tweezers.
-
Remove the band using the tweezers.
-
-
-
Once the digitizer has been disconnected from the motherboard, the LCD screen must be removed from the digitizer.
-
Push open the tabs (circled in red) using the flat end of the plastic spudger.
-
Continue to release all tabs while continuing to pry the LCD away from the digitizer.
-
-
-
Use the tweezers to pull out the black pins (circled in red).
-

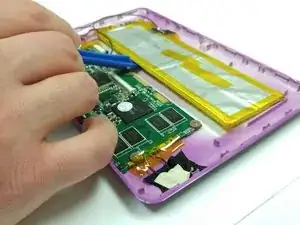

Use the tweezers to remove the camera band from the motherboard.
-
-
-

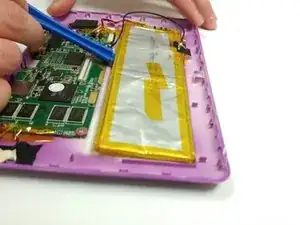

Use the flat end of the plastic spudger to pry the camera lens from the case.
-
Use the tweezers to remove the camera and band.
-
-
-

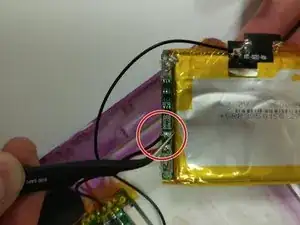

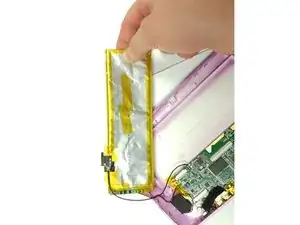

Us the tweezers to remove the circuit board from the side of the battery.
-

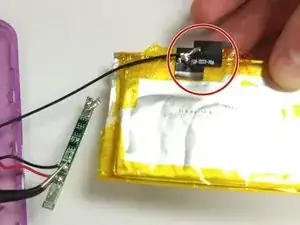

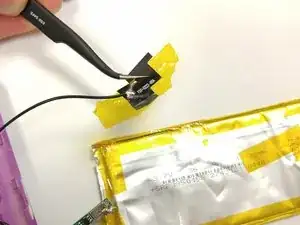

Remove the wire by peeling off the tape.
-
To reassemble your device, follow these instructions in reverse order.
