HKC P776A Digitizer Replacement

Geschrieben von: Spencer Pheasant
  • Kommentare: 0
HKC P776A Digitizer Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

  1. 1oDscAIFGGhE1BLN

    • Insert the plastic opening tool between the digitizer and the case.

    • Place the spudger in the gap created by the plastic opening tool to assist in separation.

  2. y1ja4YMYPLUwmONF
    y1ja4YMYPLUwmONF
    tbGbZiPvEhJvKfgW

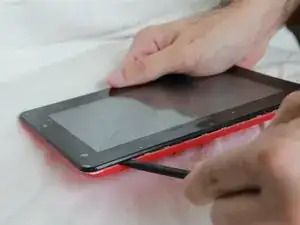

    • Slide the spudger along the perimeter of the device to fully separate the two pieces.

  3. jarMWiZDMp3TOoAb
    jarMWiZDMp3TOoAb
    ZCu5cYI3GokiW2wg

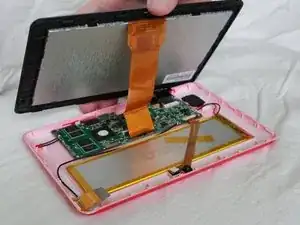

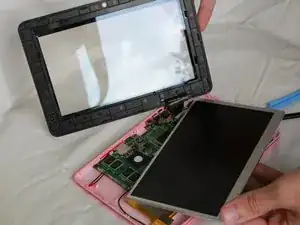

    • Use your fingers to pop the screen out from the digitizer.

  4. JZxSQ1Ebem24GEeF
    JZxSQ1Ebem24GEeF
    roEBNJeLR5AUROSw

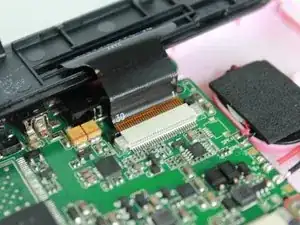

    • Use the tip of the spudger to release the latches on the motherboard.

  5. 5CYsNBnmLF65YcDa

    • Remove the cable from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
