HKC P776A Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

  1. 1oDscAIFGGhE1BLN

    • Insert the plastic opening tool between the digitizer and the case.

    • Place the spudger in the gap created by the plastic opening tool to assist in separation.

  2. y1ja4YMYPLUwmONF
    y1ja4YMYPLUwmONF
    tbGbZiPvEhJvKfgW

    • Slide the spudger along the perimeter of the device to fully separate the two pieces.

  3. o41O1iZkVrVfGuyf
    o41O1iZkVrVfGuyf
    vDcwq5AEbJITmFAO

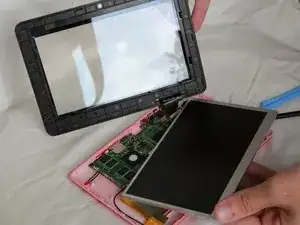

    • Use your fingers to pop the screen out from the digitizer.

  4. EAYPKBKlt6SbXuVH

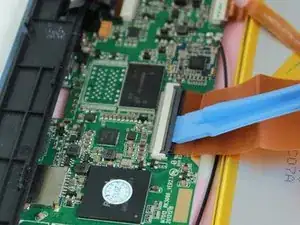

    • With the plastic opening tool, lift the black latch up.

  5. UR52RfaeulbYYRZM

    • Pull the optical cord out from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
