HKC P776A Wifi Antenna Replacement

Geschrieben von: Ryan Gornati
  • Kommentare: 0
HKC P776A Wifi Antenna Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

  1. 1oDscAIFGGhE1BLN

    • Insert the plastic opening tool between the digitizer and the case.

    • Place the spudger in the gap created by the plastic opening tool to assist in separation.

  2. y1ja4YMYPLUwmONF
    y1ja4YMYPLUwmONF
    tbGbZiPvEhJvKfgW

    • Slide the spudger along the perimeter of the device to fully separate the two pieces.

  3. Sfp1LkgyRVExZ5f5
    Sfp1LkgyRVExZ5f5
    52MR1NuaFEXQMWmJ

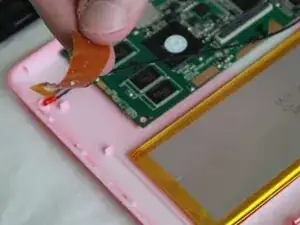

    • Peel off the tape that is attaching the wifi antenna to the case.

  4. 4GeMRCcWOIPrFyFH

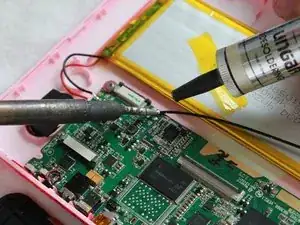

    • Using the soldering iron, heat up the solder that is attaching the antenna to the motheboard.

    • The heat from the soldering iron may cause personal injury or damage the internal components of the tablet.

  5. RrbxPVmtVdyjfMYb

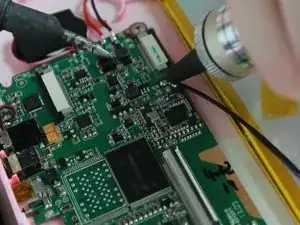

    • Suck up the leftover solder using the desoldering pump.

    • Remove the wifi antenna from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
