During this guide you will be required to unsolder an LED from a PCB and then solder the new LED onto the same connection points.

  1. kMiAqkXnNjEB4TLN
    kMiAqkXnNjEB4TLN
    QS312vo2q36mkY1O
    • Insert the flat tip of the metal spudger into the seam between the back panel and the screen.

    • The easiest insertion point for the metal spudger is at the corners of the device.

    • Slide the spudger across the perimeter of the device and gently pry apart at each corner.

    • When the screen is separated from the back panel there will be two connected ribbon cables between the two halves of the device. These cables must be disconnected before further disassembly.

    • After the pressure clamps are released orient the device so that the speaker is to the right and the screen is tilted away from you.

  2. LddnAnUyUe2S4RUW
    LddnAnUyUe2S4RUW
    lBIPACVvuYYuR14j
    • The device is oriented with the camera to the right and the external button towards the top of the picture.

    • Locate the shorter ribbon cable and the black pressure tabs that hold the ribbon cable in place.

    • The tabs used to connect the ribbon cables are fragile and can easily be damaged.

    • Use the plastic spudger to gently slide the tabs about 2mm away from connector.

    • Once tabs are successfully disconnected the ribbon cable should come out of the port without resistance.

  3. 2EMLWPpwRMLES1N4
    2EMLWPpwRMLES1N4
    CLIN2jjRImjjDdv3
    JQWiHdlYgAbMEXMg
    • Locate the longer ribbon cable and the pressure clamp that holds the cable in the connection port.

    • Using the plastic spudger, flip the black locking clip up.

    • The pressure clip will click when it has been disengaged.

    • Once the clip is unlocked, the cable should slide out without resistance

    • In photo 1 the device is oriented with the camera to the left and external buttons towards the bottom. In photo 2 the device is oriented with the camera toward the user. In photo 3 the camera is to the left.

  4. xIueTQJFSL6kOJTK
    xIueTQJFSL6kOJTK
    JhZmXn42EP2eLfIY
    • Gently grasp the foam ring with pliers and pull upwards to release the adhesive on the bottom of the ring.

    • The foam ring is delicate and can tear if handled improperly or with too much force.

  5. HERsnxABgZb4n1r2
    • Using a soldering iron apply heat to the connection point between the LED and PCB.

    • Solder can be hot and may release toxic fumes. Be familiar with soldering safety guidelines before beginning this step.

    • When the solder is heated sufficiently (turns liquid and shiny) remove the LED lead with tweezers.

    • Repeat for other connection point.

  6. CoDoBWKSRY1AWiXk
    CoDoBWKSRY1AWiXk
    pKEFUHBdlrQUFpqF

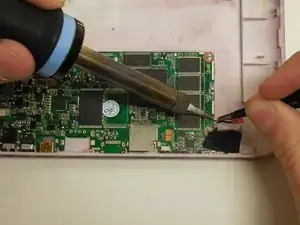

    • Using a soldering iron apply heat to the connection point where the LED connects to the PCB.

    • When the solder is heated sufficiently (turns liquid and shiny) insert the LED lead with tweezers. If necessary add additional solder to ensure a solid electrical connection.

    • When connecting the new LED attach the longer lead to the positive connection point (denoted on the PCB by '+'), and the shorter lead to the negative (denoted by '-').

    • Repeat for the other connection point.

    • If the LED is connected backwards the LED will not work.

  7. vlTk21qWjfuDMDm3
    • Position the new LED in the same position as the old LED.

    • If the lead's on the LED are not insulated be sure to not allow the two leads to contact each other. This will cause a short.

  8. PhNL2PlGBQPYMdHV

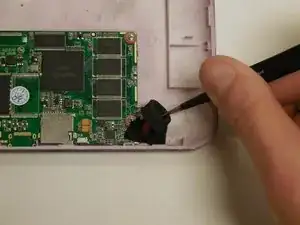

    • Using tweezers or finger, replace the circular foam ring around the new LED.

    • If the foam ring will not adhere to device, then apply a thin amount of adhesive and retry.

Abschluss

To reassemble your device, follow these instructions in reverse order.
