HMDX Chill Front Buttons Replacement

Geschrieben von: Jourdan Holubasch
  • Kommentare: 1
HMDX Chill Front Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 45 Minuten

Einleitung

If the buttons on the HMDX Chill no longer function properly, you will need to disassemble and replace the buttons. This guide will walk you through removing the buttons from the HMDX Chill without breaking them. This guide also gives you information on how to replace new buttons easily.

  1. TnKRyOvVfFRkVBUp
    TnKRyOvVfFRkVBUp
    qauVXHvCU5jBHe1h
    GcRLoLvFs2TUL4rM

    • Insert a metal spudger under the rubber base.

    • Pry the rubber base off.

  2. 5yZObJVXxJHVaqyC

    • Use a Phillips #1 screwdriver to remove four 9 mm screws from the base of the device.

  3. DWbpTLqxR13KVSsE
    DWbpTLqxR13KVSsE
    iQlrydWxMRSvWZEy

    • Grip the base of the HMDX Chill.

    • Pull the base upwards.

  4. GLPqFtqlHQl6QPSP

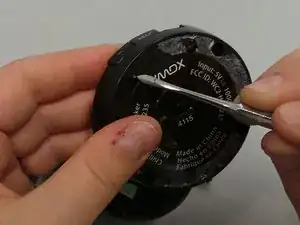

    • Using a metal spudger, push the small latch upwards towards the button from the bottom of the base.

    • These are located underneath the rubber base, prior to removal.

  5. xLoBluNLnDD51DTU
    xLoBluNLnDD51DTU
    WtljnRlNF6PVjJRE

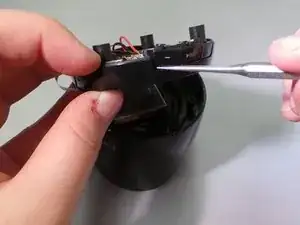

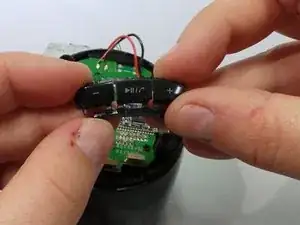

    • Insert a spudger into the slit between the bottom of the buttons and the speaker base.

    • Push the buttons upwards, away from the base, until they come loose.

    • Use your hand to pull the linked buttons off the base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
