The speakers are attached to the device on the left and right edges. In this guide, you will unscrew and desolder the speakers to disconnect them from the motherboard and the device. This guide requires soldering, please be careful and ventilate the room.
-
-
Insert the smallest plastic opening tool into the SD card port. Gently pry until the back panel separates from the screen panel.
-
-
-
Slide the opening tool along the seam between the back panel and the screen panel, prying the panels apart as you move around the edges.
-
-
-

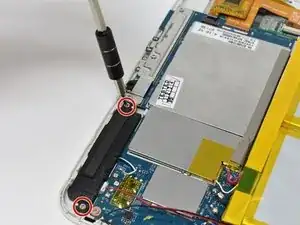

Use the Phillips #00 screwdriver to remove the 4mm screws from the speaker.
-

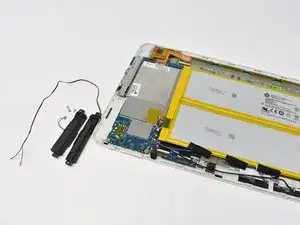

There are two screws holding both speakers to the plastic device frame.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
