Einleitung
Is your device not turning on? Are you experiencing the Blue Screen of Death (BSoD)? If so, the motherboard in your device may be faulty and needs to be replaced. Follow the instructions in this guide to remove and replace the motherboard in the HP 14-am052nr laptop.
Werkzeuge
-
-
Turn the laptop over to its bottom so that the backside is facing you.
-
Using your fingers, push the two locking tabs inwards to release the battery.
-
Remove the battery from the device.
-
-
-
After removing the battery with the laptop on its back, expose screws that are hidden under the rubber feet and the center label.
-
Using the Phillips #0 screwdriver, remove fourteen (14) 6 mm screws from the back panel.
-
-
-

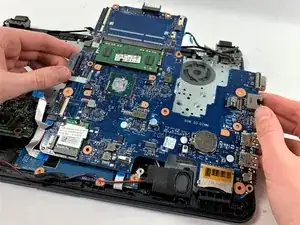

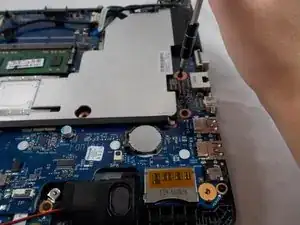

Using the Phillips #0 screwdriver, remove three 3 mm screws and five 3.5 mm screws from the motherboard.
-
-
-

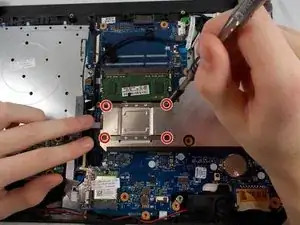

Using the Phillips #0 screwdriver, remove four 1.5 mm screws from the silver cover.
-

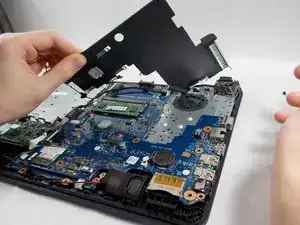

Remove the silver cover from the device.
-
To reassemble your device, follow these instructions in reverse order.
