HP 14-fq1025nr Keyboard Replacement

Geschrieben von: Yasli Kanimba Murenzi
  • Kommentare: 0
HP 14-fq1025nr Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

25

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide will teach you how to remove a HP 14-fq1025nr keyboard and replace it with a new one. The keyboard allows for input to be typed into the computer. A faulty keyboard may result in input being incorrect and/or not being processed by the computer. For additional information and help with troubleshooting the keyboard, refer to our troubleshooting page. This replacement may require the use of a razorblade in order to remove some small parts holding down the keyboard component itself.

NOTE: The screen will need to be removed first to have full access to the keyboard cover.

WARNING: The computer uses a lithium-ion battery which contains toxic substances / flammable substances. Handle with caution.

  1. 4TcU6ZpJRPyRoMNd

    • Flip the laptop upside down so the bottom cover is facing up.

  2. gJbIgHIfIEXqDG35

    • Use a pair of tweezers to grab and pull the feet off of the cover.

  3. m4k4NTIdJiFLGTTt

    • Remove the two 4 mm screws using a Phillips #0 screwdriver.

    • Remove the six remaining 6 mm screws located around the edges and underneath the feet using a Phillips #0 screwdriver.

  4. KYtuqoAAJDgTZHZd

    • Flip the laptop right-side up and slide an iFixit opening tool and/or Jimmy inside of the bottom cover seam to pry it open.

  5. vWDLNbYKNYH5kRY2

    • Remove the bottom cover.

  6. H3bDQVYQLUHFH1T5
    H3bDQVYQLUHFH1T5
    D11VJOY4OgYIICeD

    • Remove the four gray 3 mm screws holding down the battery using a Phillips #0 screwdriver.

  7. iRvwxe1CRMDxVOZP

    • Remove the battery.

  8. 5a4UjEAPjLrybm6b

    • Remove the three silver screws (one 2 mm screw and two 4 mm screws) holding down the fan using a Phillips #0 screwdriver.

  9. ktRfLwlAjKDUYCTT

    • Unplug the fan’s power cord from the motherboard.

    • Use tweezers to pull the plug out, if needed.

  10. Ypv23sQVG2pXawQl

    • Remove the fan.

  11. lhBPvMFLmfZlVYJj

    • Remove the four gray 3 mm screws around the heat sink using a Phillips #0 screwdriver.

    • Remove the heat sink.

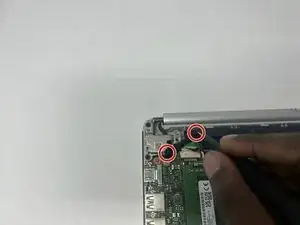

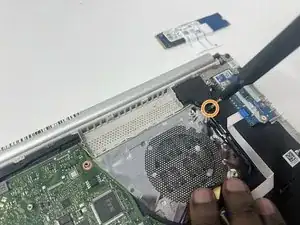

  12. NxvH4Uqpy4FWdXWg
    NxvH4Uqpy4FWdXWg
    PLcx33J21DXJlUWL

    • Using a Phillips #0 screwdriver, remove the three black 5 mm screws holding down the speaker:

    • Two screws on the left side

    • One screw on the right side

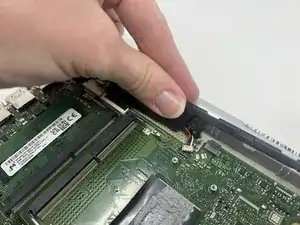

  13. MU3d46WJ2mdO3qMr

    • Unplug the speaker wire.

    • Use tweezers if needed.

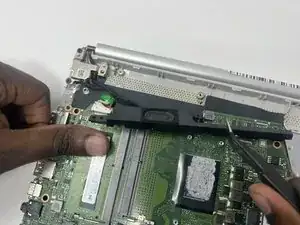

  14. YSFEbaXRTQRbEYD1

    • Remove the speaker.

  15. ov6rrO1TakuOTiXa

    • Remove the single 6 mm screw holding down the SSD using a Phillips #0 screwdriver.

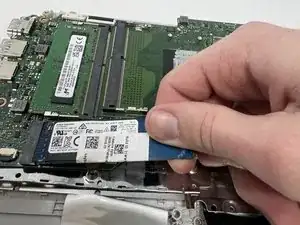

  16. 4JOnOdVkFToWpfNf

    • Slide the SSD out of the slot.

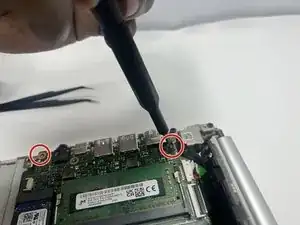

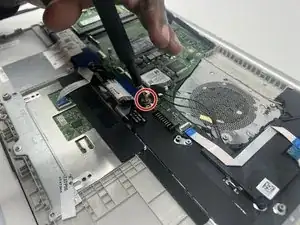

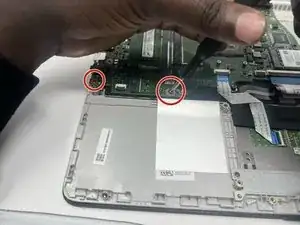

  17. O5vHbsiqQqxeUyuC
    O5vHbsiqQqxeUyuC
    XGOUT4haRWOC2cF1
    ZPxXUrAcVfTIKORL

    • Remove the five 3 mm gray screws from around the motherboard using a Phillips #00 screwdriver.

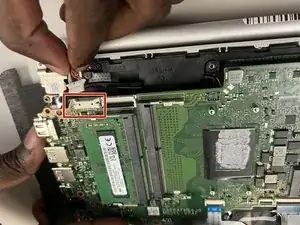

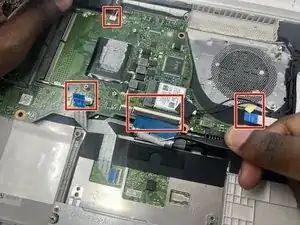

  18. Y4utGjZJmBgGWJXM
    Y4utGjZJmBgGWJXM
    FudFoX1is2o2uyjd

    • Unplug the wire connections.

    • Use tweezers if needed.

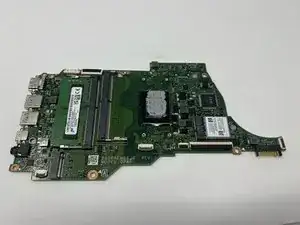

  19. 5cpAEAUkG2VtLIqA

    • Remove the motherboard.

    • Use the iFixit opening tool to pry it out if needed.

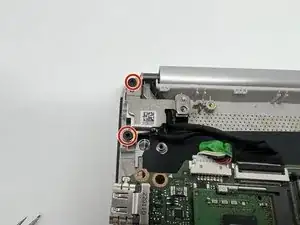

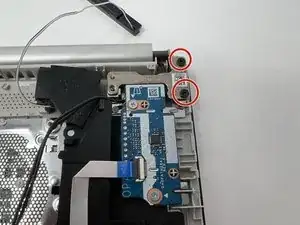

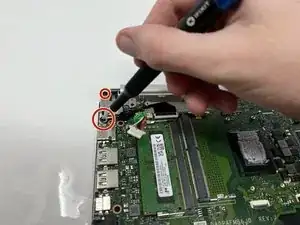

  20. nMtIsdSLEaDyJPjO
    nMtIsdSLEaDyJPjO
    dd6Qw1NU2PSlGZ1Y
    wDxCXmumd3INimST

    • Remove the four black 5 mm screws holding down the two silver screen hinges using a Phillips #00 screwdriver.

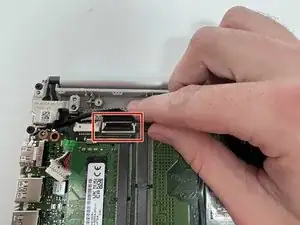

  21. bXFYRLkOP4YLBW1s
    bXFYRLkOP4YLBW1s
    HEGyGkJIZUFfHONU

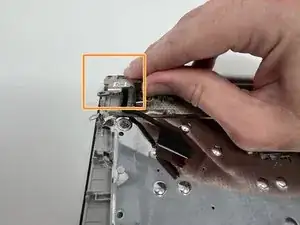

    • Unplug the screen from the motherboard by lifting the wire cover and removing the screen cord.

    • Separate the hinges from the computer.

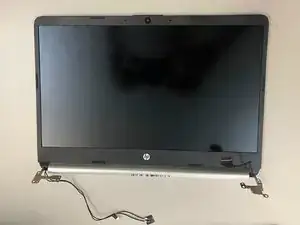

  22. lp4yQVI1ccJDlILZ

    • Remove the screen.

  23. BQOIidMX3lCAJSiH

    • Use an iFixit opening tool to remove all the plastic hold downs from the keyboard cover.

  24. WhIPZMiJb2XEvbIq

    • Remove all remaining plastic hold downs on the main keyboard with an iFixit opening tool.

  25. RLVqnLxqh1oWXiFR

    • Push the keyboard out of the computer.

    • During reassembly, make sure that the keyboard is tightened properly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
