HP 14-fq1025nr Trackpad Replacement

Geschrieben von: Nil Parra
  • Kommentare: 0
HP 14-fq1025nr Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

In this guide, you will learn how to remove the HP 14-fq1025nr trackpad to replace it with a new one. The trackpad is used to move the mouse cursor. A faulty trackpad may result in the cursor not being moved at all. For additional information and help with troubleshooting the trackpad, refer to our troubleshooting page.

WARNING: The computer uses a lithium-ion battery which contains toxic substances / flammable substances. Handle with caution.

  1. 4TcU6ZpJRPyRoMNd

    • Flip the laptop upside down so the bottom cover is facing up.

  2. gJbIgHIfIEXqDG35

    • Use a pair of tweezers to grab and pull the feet off of the cover.

  3. m4k4NTIdJiFLGTTt

    • Remove the two 4 mm screws using a Phillips #0 screwdriver.

    • Remove the six remaining 6 mm screws located around the edges and underneath the feet using a Phillips #0 screwdriver.

  4. KYtuqoAAJDgTZHZd

    • Flip the laptop right-side up and slide an iFixit opening tool and/or Jimmy inside of the bottom cover seam to pry it open.

  5. vWDLNbYKNYH5kRY2

    • Remove the bottom cover.

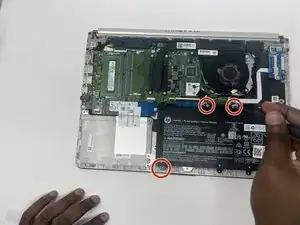

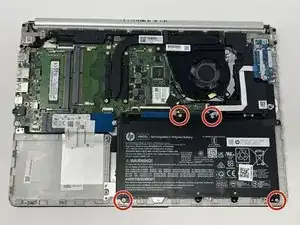

  6. H3bDQVYQLUHFH1T5
    H3bDQVYQLUHFH1T5
    D11VJOY4OgYIICeD

    • Remove the four gray 3 mm screws holding down the battery using a Phillips #0 screwdriver.

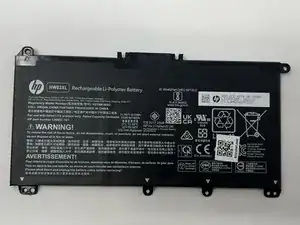

  7. iRvwxe1CRMDxVOZP

    • Remove the battery.

  8. pRRZeE5EXJKFbsOP

    • Remove the six gray 2 mm screws around the trackpad using a Phillips #00 screwdriver.

    • Three of them will be hidden behind a black plastic lid.

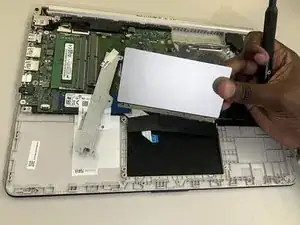

  9. JSLdXQpO41CeaF4P

    • Remove the trackpad from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
