HP 14-r008la Hard Disk Replacement

Geschrieben von: Internet Libre
  • Kommentare: 1
HP 14-r008la Hard Disk Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. BZ2vdsLjNFONmAQl
    BZ2vdsLjNFONmAQl
    eARkArAiupjkIKRH

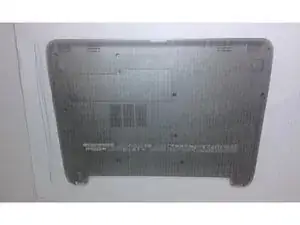

    pwyeHxJHhpEPMDyn

    • Shutdown the computer and remove the battery

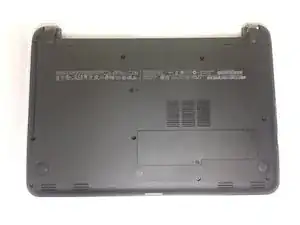

    • Turn it right-side down, print a picture of its back cover

  2. whBQsyb1EK4WdsBK

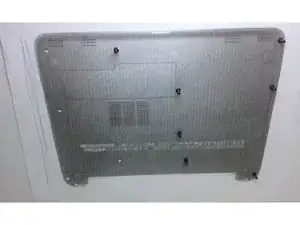

    whBQsyb1EK4WdsBK
    EauCKcx3JPPtdpBW

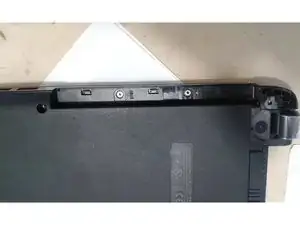

    FZiGYQQeilOwKGbH

    • Use double-sided tape to stick all the screws in its right place on the printed picture

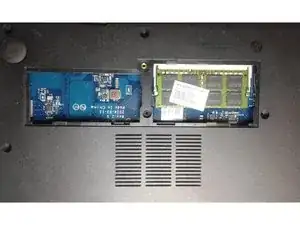

    • Under the ram cover there is a screw, remove it

    • Dvd reader will come off when you remove its screw

    • Remove the two screws under the DVD reader

  3. ra2nqTpmqo4XwUyK
    ra2nqTpmqo4XwUyK
    OCyfEeRPLecOZrgd
    DdVKnqMw1dpFPrXV

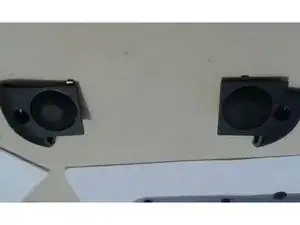

    • Remove the two rubber feet beside battery place

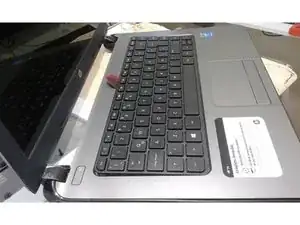

    • Turn the laptop right-side up and open and insert a pry tool along the top-side keyboard until release it

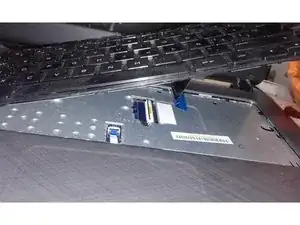

    • Release the connector to which the keyboard cable is attached, and then disconnect the keyboard cable.

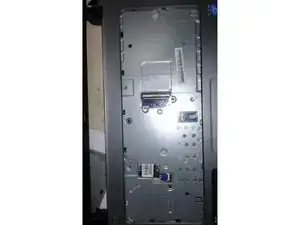

  4. GSLIo4RHtbpbZIUD
    GSLIo4RHtbpbZIUD
    DpL5OJlurNgOk4aq

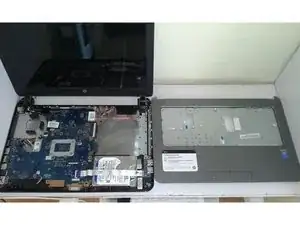

    ZwjEGV6RWtYFoGoM

    • Remove three screws under keyboard

    • Don't forget the security protocol we followed in step 1 and 2

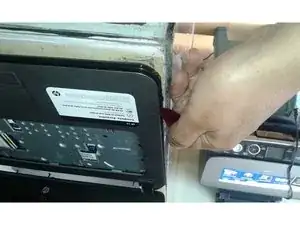

    • Insert pry tool around the cover in which touchpad used to be until release

    • First release the left side because the right has a clips which hold the cover.

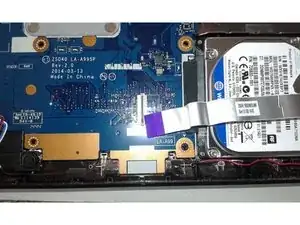

  5. UmNQbqfoZAEyAEPD
    UmNQbqfoZAEyAEPD

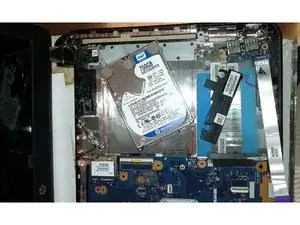

    UBTJSKgrKQJpYCtg

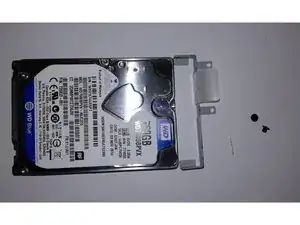

    FoFipXlkxxy4qa4f

    • Release the connector to which the cable of two usb ports has been attaching

    • Remove the two usb ports and the speaker, and the two HDD screws then pull the HDD off

    • Remove metal frame in the first HDD and put it in the second

Abschluss

To reassemble your device, follow these instructions in reverse order.
