Einleitung
The fan is an internal component of the notebook that prevents it from overheating after prolonged use. A fan is crucial for the notebook. Make sure the notebook has been unplugged and the battery removed.
-
-

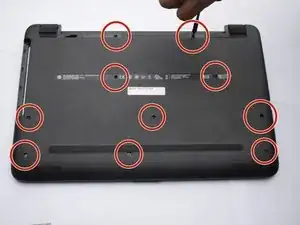

Use a Phillips screwdriver to remove the 10 visible screws on the bottom.
-

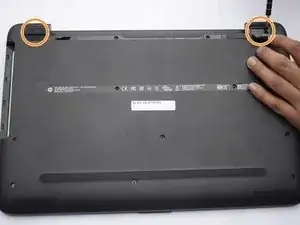

Peel up the rubber feet near the hinges.
-
Remove the screw under each.
-
-
-

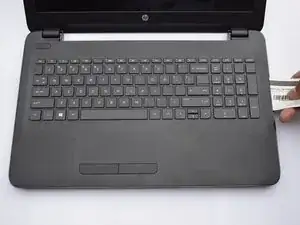

Turn the computer over and use a card to pry the space between the keyboard and bottom surface of the computer.
-
Work a plastic card or opening tool carefully around the three edges (excluding the side with the screen, which should be positioned at 90 degrees.
-

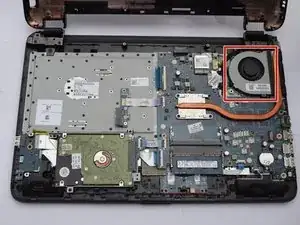

Gently lift the top surface of the bottom half of the laptop, revealing the fan.
-
-
-

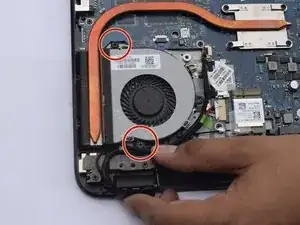

To replace the fan remove the two screws that hold the fan in place.
-

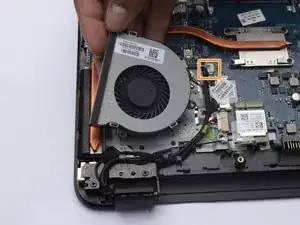

Unplug the wire that connects the fan.
-
Remove the fan.
-
To reassemble your device, follow these instructions in reverse order.
