HP 15-BA078DX Touchscreen Replacement

Geschrieben von: Matthew Moore
  • Kommentare: 0
HP 15-BA078DX Touchscreen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will detail the process of replacing the Touchscreen from the HP 15-BA078DX laptop.

  1. aGgkjkTGoMIvrQFt
    aGgkjkTGoMIvrQFt
    XVvtwopPhPWyKr2h
    SFTpuPX1TStA2NRD

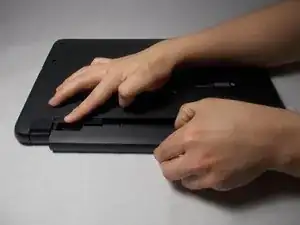

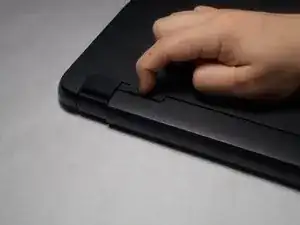

    • Unclip the two latches on the bottom of the laptop.

    • Slide the battery straight out while holding the clip open.

  2. 2VmGYkPMOJkRBBHm
    2VmGYkPMOJkRBBHm
    FixEdUlpeandH3Xf
    EKMDQNbPodlNhbfR

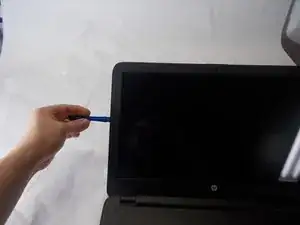

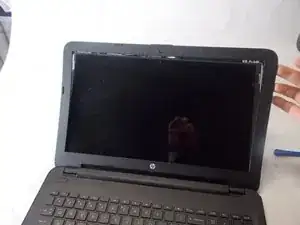

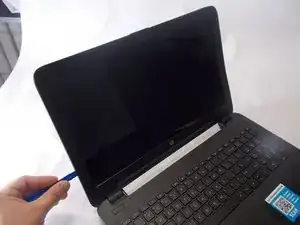

    • Carefully use the blue plastic opening tool to remove the outer frame of the screen.

  3. Q6qSLaBWynPigeAL
    Q6qSLaBWynPigeAL
    BPOTcDWmEn4d5VYk
    MuFrBggervUR4UFG

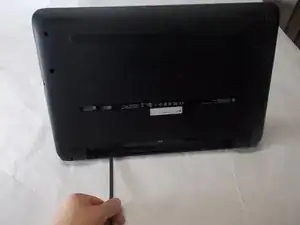

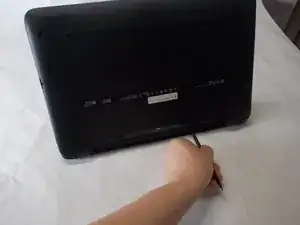

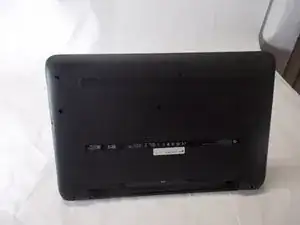

    • Flip the laptop on its back.

    • Detach the bottom section of the screen frame from the laptop by using the black nylon spudger.

  4. vICSCaNLXMUYQquQ

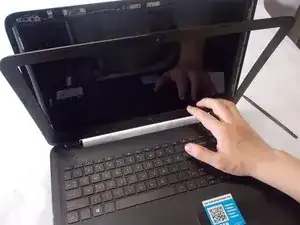

    • Separate the frame from the screen.

  5. Uh4N6BuLlvqgTkCX
    Uh4N6BuLlvqgTkCX
    IEa1LfGGqeVcEgEM
    MCqyC6lDGisCUfPV

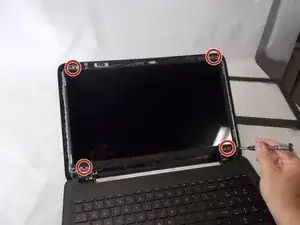

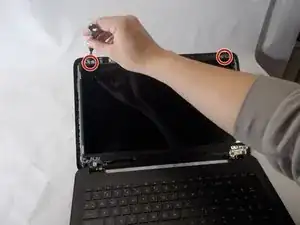

    • Using the Phillips #0 screwdriver, unscrew the 4 screws around the frame.

  6. uHRVACDTdk5iRMKM
    uHRVACDTdk5iRMKM
    eUsclLREuZfVHWPD
    mI2ZCLoIQYkkoXme

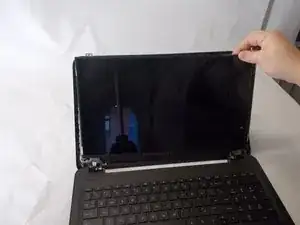

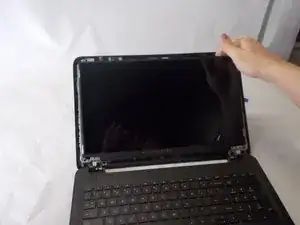

    • Remove the touchscreen from the laptop.

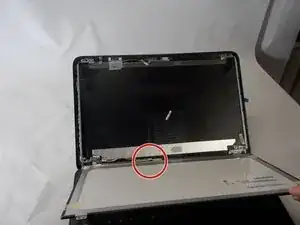

    • Be careful not to damage the screen connector located at the bottom of the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
