Einleitung

This guide will teach you how to replace the broken fan in your HP 15-ac121dx laptop to prevent the device from overheating.

  1. AUF2tZSV36fYIPfM

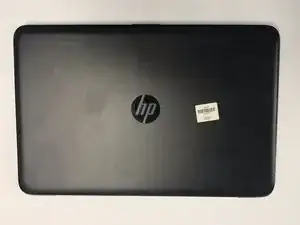

    • Remove all external devices from the computer.

    • Remove the charging cord from the computer.

  2. SsSlSq14ApMgKhVk

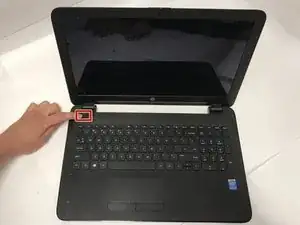

    • Turn off the computer by holding the power button.

  3. 1EjsUCTyLnWkaYfA
    1EjsUCTyLnWkaYfA
    lKHfAKg6CQHXUjxK

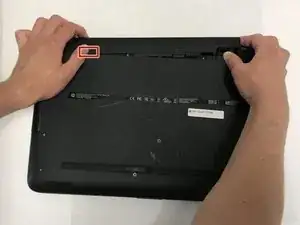

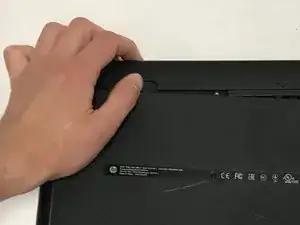

    • To remove the battery, slide the left slider on the back to the unlocked position.

  4. EYv5FRKoqQbFybAs
    EYv5FRKoqQbFybAs
    1KaoUwJGCIgA5o6a

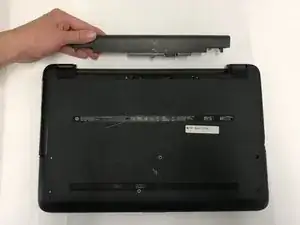

    • Push the right slider inwards.

    • Remove the battery out by pulling straight out and to the right.

  5. hXpaI1IPvU2M1HWD
    hXpaI1IPvU2M1HWD
    a2sTLq3LPKqIQpfI
    IAOI1bjoPTw6G1gn

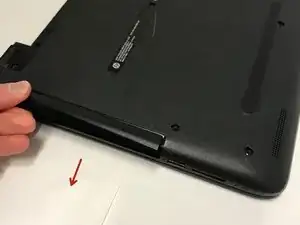

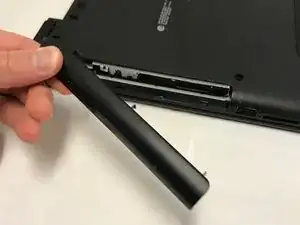

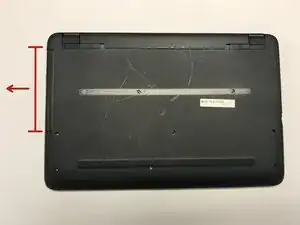

    • Locate the CD Compartment panel and gently slide it out.

  6. 1sUKoBk2yuPwuRSJ

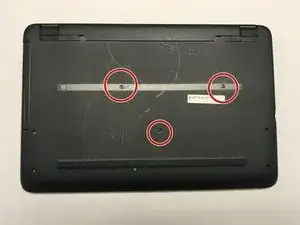

    • Remove the back of the laptop by unscrewing the screws shown.

    • Also remove the other 5 Phillips screws lining the back cover.

  7. PtmGryJThwFFseH5
    PtmGryJThwFFseH5
    mvpuyAUUWiI3CbLN
    XdHnqTHxYqBtdQwl

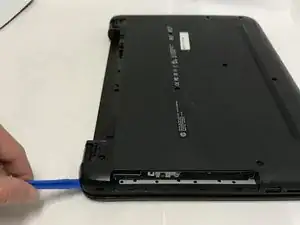

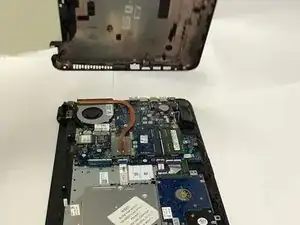

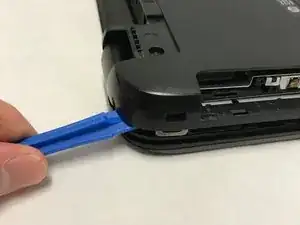

    • Using the prying tool, wedge it underneath the back of the laptop and do the same all around until the back comes off.

    • Dont forget to unscrew 2 screws under 2 plastic tabs (one on each hing). The lid will not come off without them being removed!

  8. gxAgWuB4o33UodTD
    gxAgWuB4o33UodTD
    ceTeQXigPhT1XNOy
    HNisBPIBxMuZI6px

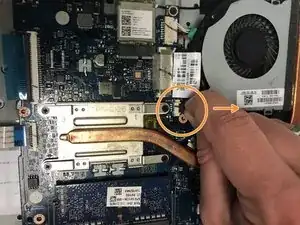

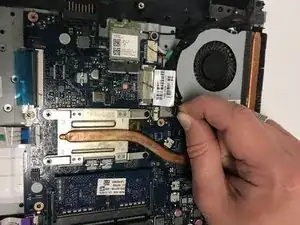

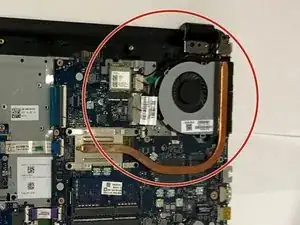

    • Locate the Fan as shown.

    • Pull out the black cable, with four wires attached from its port.

  9. fDAVRZLbjTVoEAQK
    fDAVRZLbjTVoEAQK
    KmCU5HOyMPOdDwxM

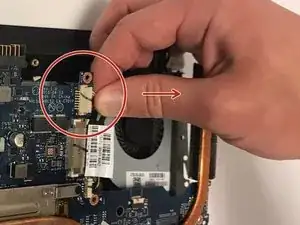

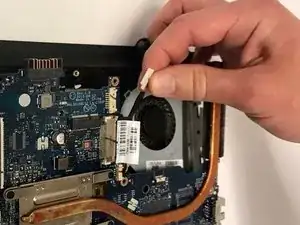

    • Pull out the white cable wire from its port.

    • Unscrew the two black Phillips screws holding in the fan.

  10. VONBW2ZAk2sah4aX
    VONBW2ZAk2sah4aX
    4vLnLROb1mxDkxCt

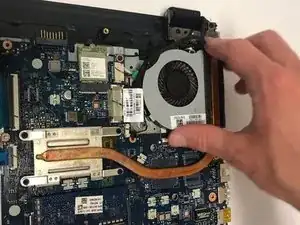

    • Remove fan.

    • Unscrew the two screws holding in the fan.

Abschluss

Replace fan. To reassemble your device, follow these instructions in reverse order.
