Einleitung

Replacing your RAM on your HP 15-af123cl. If your processing speed is slowing down this could be the issue.

This guide explains how to replace the RAM. If your processing speed time has increased significantly, it could be time to replace the RAM. Before we start replacing the RAM let's cover some precautionary steps. First we want to make sure the reason for the slow processing is not a program taking up all the memory space. In order to check please go to the task manager to verify there are no open programs slowing the computer down by using significant memory. If there is a program taking significant memory right click and select "End Program". Test computer to verify if the problem is fixed. If the issue insists we may need to replace RAM.

In order to start the RAM replacement process please verify you are using ESD-safe tools and ESD-Band to prevent damage to the computer. To ensure your data is safe, please back-up your computer, so that no data is lost. Completely shut down the computer and ensure to disconnect the charging cable. Now you are ready to open up the computer. Once the computer is opened ensure that the RAM is set by comparing RAM to the pictures provided below. RAM should be flush and level with the surface. If RAM was not set; set the RAM following the instructions below and close the laptop to see if this was the issue. If problem persists please go through the previous precautions again and begin RAM replacement instructions.

  1. kaUoZUUrBiIbiQ4N
    kaUoZUUrBiIbiQ4N
    RiJqFsiyOlTSws5c

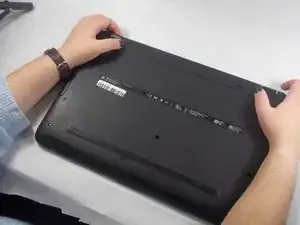

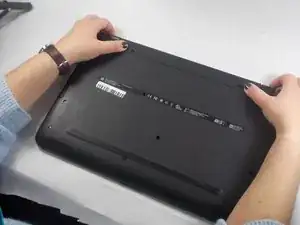

    • Push the slider with a lock symbol to the right to unlock the battery.

  2. b3bA3EFnII1W2GPW

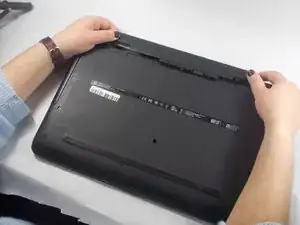

    • Push the slider with a battery symbol to the left to push the battery out slightly.

    • Pull the battery out fully now that it is released.

  3. yXr2DFOLLCuhXXEn

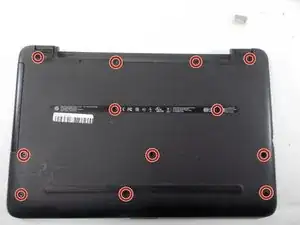

    • Remove the twelve screws from the bottom of the laptop using a Phillips #00 screwdriver.

  4. bIPwyQrq3ua6aoCo
    bIPwyQrq3ua6aoCo
    uCmbHwEhPPxNxy4Z
    KU4hKWVVD1CFDQtI

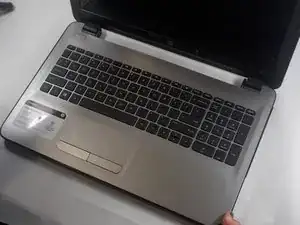

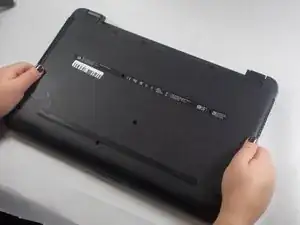

    • Turn the laptop over and open the lid.

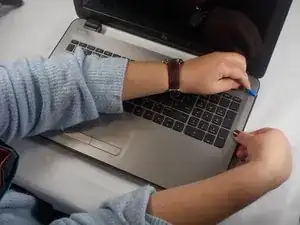

    • Use an opening tool to pry the bottom cover from the body of the laptop.

  5. WNaJsAlJRL4vNcsu
    WNaJsAlJRL4vNcsu
    5j4sxmjf2BWXS6oO

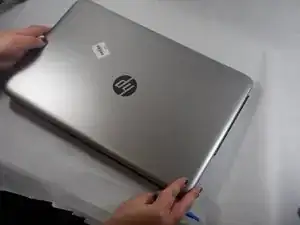

    • Close and turn over the laptop again.

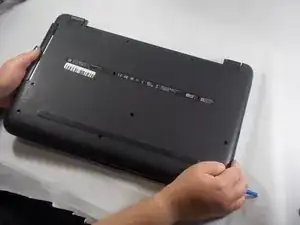

    • Pull the back cover up to remove it from the laptop.

  6. cNZ21DJC25vJnq5y

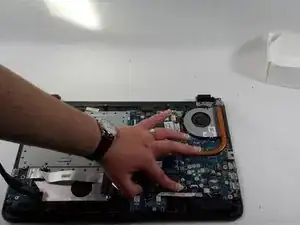

    • Press the metal brackets on either side of the RAM outwards.

  7. NiY2B1QW6m1lWOXg

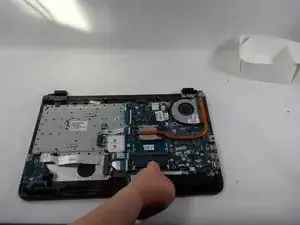

    • Remove the RAM from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
