HP 15-ay011nr Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 Minuten

Einleitung

  1. AnPbmRUAYyTyAMga

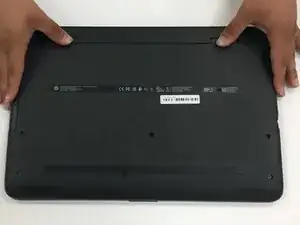

    • Slide the two battery lock latches on the back of the device to the “unlock” position.

  2. 3KGRyhBqwCgEk2ew

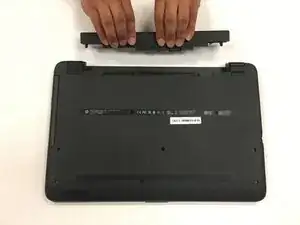

    • Lift the battery upward to remove it from the device.

  3. 1bJaXE66Xr3FpLSO

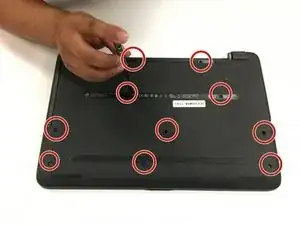

    • Using the PH1 phillips-head screwdriver, remove all the 5/16 in. screws from the back of the device.

    • There should be 10 in total, be sure to keep them together!

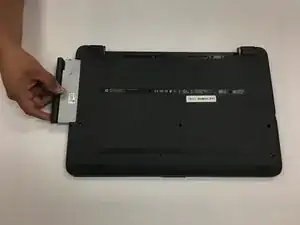

  4. 2ZHBigBTT1jUjbJB

    • Locate the optical disc drive and remove it from the device by sliding it straight of the device.

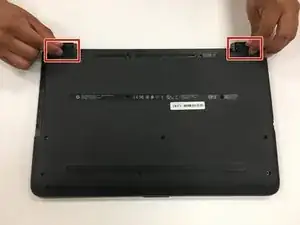

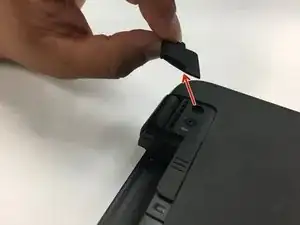

  5. G6APnnO3GAAlD2S5
    G6APnnO3GAAlD2S5
    HLxjWkDT2sEk6Mcf

    • Covering the hinges of the device are rubber bumpers secured to the device using adhesive. Remove them carefully.

    • Place the adhesive side up as you will need to place them back after your replacement is complete.

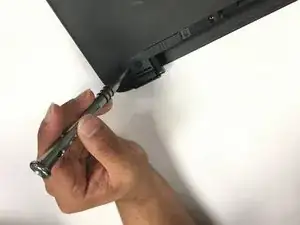

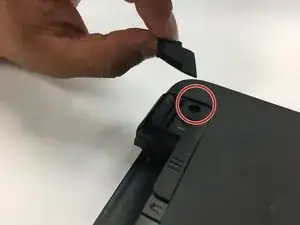

  6. XKghfn5StFvXRrMr
    XKghfn5StFvXRrMr
    fpLar5PtpQBFHcxA

    • In the same spot you’ve just removed the bumpers from, you will find two 5/16 in. screws. Using the same Phillips-head screwdriver used in step 2, remove the screws

    • Be sure to keep the screws together!

  7. MeaPu2R2aYDKWAqM

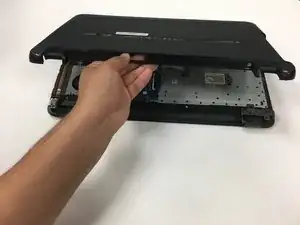

    • Carefully remove the back panel from the device.

    • If you are unable to do this with your hands, you can use a thin prying tool of your choice to make it easier!

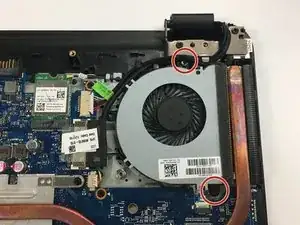

  8. kJUcpHorAoyXRl5Q
    kJUcpHorAoyXRl5Q
    FtiN6bhO2ctp1luJ

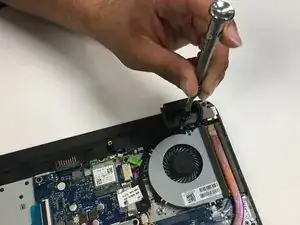

    • There are two 5/16 in. screws adjacent from each other that secure the fan to the device. Use the PH1 phillips-head screwdriver to remove them.

    • Be sure to keep them together!

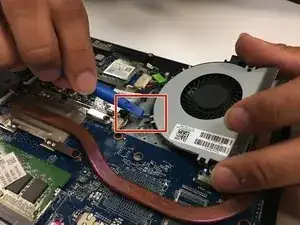

  9. nHRV53PWktmOBCWV
    nHRV53PWktmOBCWV
    dvTodumAOZsBD1GU

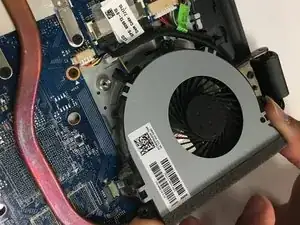

    • Lift the clear plastic strip holding down the fan and lift the fan out of place.

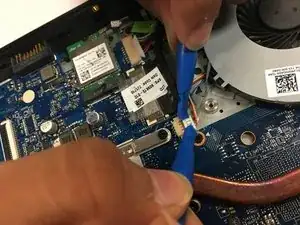

  10. TEjFBLcFxsFJucX5
    TEjFBLcFxsFJucX5
    nOeT1Z1F2ny5qQsW

    • Use your fingers or tweezers to pinch both sides of the connector and remove the fan from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
