HP 15-ay014dx Wireless Card Replacement

Geschrieben von: Drake Scoville
  • Kommentare: 0
HP 15-ay014dx Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show you how to take the wireless card out of your HP 15-ay014dx laptop.

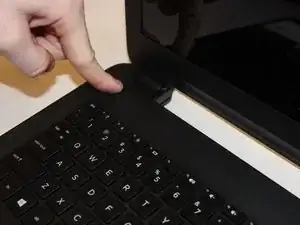

  1. R3SgXkMUGmgLQsMs

    • Disconnect device from power source and power down.

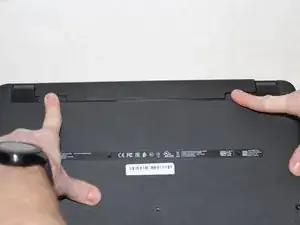

  2. eOIR2TuyyMk3r6cJ

    • With the device turned upside down, use your index fingers to push the battery latches in towards each other.

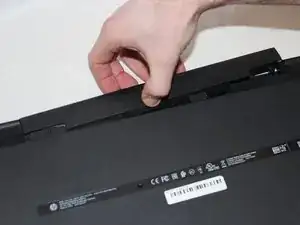

  3. ROvkGcqkTOtjKF2w

    • The latch on your left will stay at the inward position, while the latch on the right will slide back out.

    • Gently grasp the battery and pull it back away from the device and yourself.

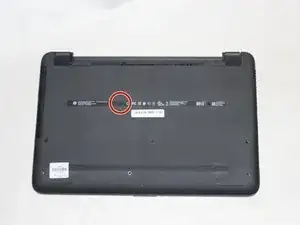

  4. D4QfNYRRCAJCTUPg

    • Close the laptop and lay it down with the bottom facing up.

    • Using a size #00 Phillips screw drive remove the screw holding in the optical drive.

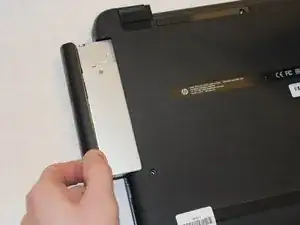

  5. WPJ6n4kBaRInuJVl

    • Grip the optical drive and gently pull it out.

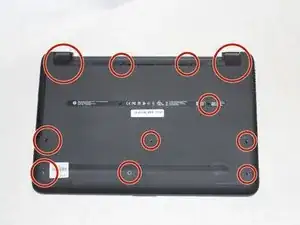

  6. BdK2BrAyLIAASGdr

    • Remove the 11 screws holding the body of the laptop together with a size #00 Phillips screwdriver.

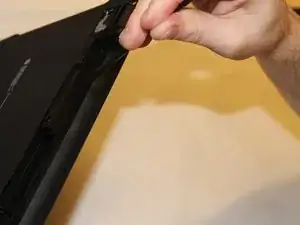

  7. UIwFRDLdMYayPRB1
    UIwFRDLdMYayPRB1

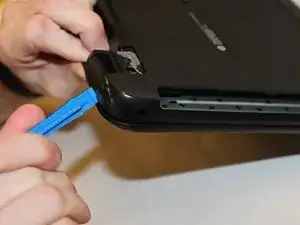

    hdnXWNYLQUrZniEH

    • Using the spudger, push in the tabs in the back that hold the body together. Carefully pry the body apart by working the spudger around the body.

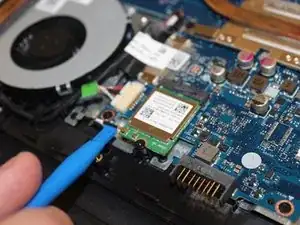

  8. WPrjYvuXTTriykmX
    WPrjYvuXTTriykmX
    vLuPJuU4IVlmh4qo

    • Using the spudger, carefully pry the wire connecting the wireless card to the motherboard off of it.

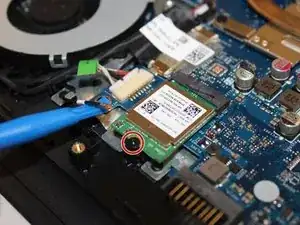

  9. HnuUHKuFBOwIXGhI

    • Using the size #00 Phillips screwdriver remove the single screw holding it in place.

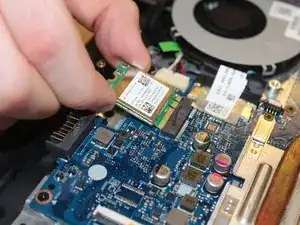

  10. itoeQn3b22QYg2iR

    • carefully pull the card of its slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
