HP 15-ay052nr Hard Disk Drive Replacement

Geschrieben von: Gabriel Zeller
  • Kommentare: 0
HP 15-ay052nr Hard Disk Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

This leads the reader through removing the hard drive for replacement. The hard drive may need replacing if it is too slow or makes odd noises while running. If you are not encountering these specific issues with your computer, check the HP 15-ay052nr troubleshooting page to direct yourself towards the guide most beneficial towards your issue.

  1. Oe5JJGik31X65JUH

    • To protect the device and yourself, make sure your device is completely powered down before disassembling. Disconnect all external devices before starting any tear down process.

    • Turn the device and lay it upside-down on a flat surface so the base of the computer is facing upwards.

  2. uQlUR5k2WAlQOurc

    • Identify the two (2) sliding lock mechanisms on either side of the battery and slide them towards the center.

    • The sliders are located at the back of the device on the side where the display hinges are.

    • The slider closest to the optical drive (CD reader) clicks open but the opposite slider has a spring.

  3. b6HOUbvthhVSAKUr

    • Pull the battery slightly up and out to remove.

    • If the battery doesn't pop out, the sliders weren't pushed in far enough. Push the sliders towards the center until the battery pops out.

  4. aaZxXn6HLYeAYaKc

    • Remove the rubber feet on the bottom of the device to access all the screws.

    • There are two rubber feet, one on each side of the battery compartment.

  5. eI6FvHAhZUhIXfrY

    • Unscrew the twelve 9 mm JIS #0 screws on the back of the device.

    • Gently remove the optical drive (CD reader) to more easily separate the base.

  6. a6C1fSHMSg3hUJEh

    • Unclip the keyboard surface from the base using an iFixit opening tool around the entire border.

  7. eIVV1uJCR1NrACcw

    • Separate the base of the computer from the component assembly.

    • The optical drive can be placed in the base where it corresponds to prevent misplacing it.

  8. cs3GcSEPx5XjYGPx

    • Remove the three 3 mm screws that mount the hard drive to the computer.

  9. eSAMyLNSCUpnaTxT

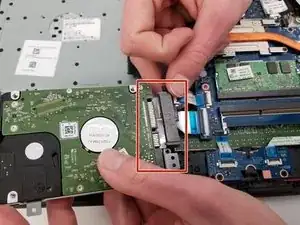

    • Remove the connector from the hard drive by pulling it away from the drive.

  10. GWCdsXX4vIJtk2AE
    GWCdsXX4vIJtk2AE
    a5FRbRZZCl1DLOdu

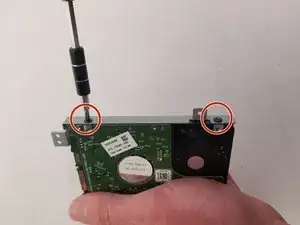

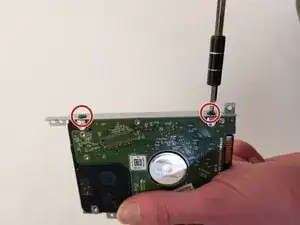

    • Lift the hard drive from the computer and remove the two 3-mm screws that connect each mounting bracket to the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
