HP 15-ay052nr Keyboard and Touchpad Replacement

Geschrieben von: Morgan Distler
  • Kommentare: 0
HP 15-ay052nr Keyboard and Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

29

Zeitaufwand

20 - 40 Minuten

Einleitung

If the keys on the keyboard are not working or the touchpad is not responding, they may need to be replaced. To replace one of the systems, the entire keyboard/touchpad surface needs to be replaced.

  1. Oe5JJGik31X65JUH

    • To protect the device and yourself, make sure your device is completely powered down before disassembling. Disconnect all external devices before starting any tear down process.

    • Turn the device and lay it upside-down on a flat surface so the base of the computer is facing upwards.

  2. uQlUR5k2WAlQOurc

    • Identify the two (2) sliding lock mechanisms on either side of the battery and slide them towards the center.

    • The sliders are located at the back of the device on the side where the display hinges are.

    • The slider closest to the optical drive (CD reader) clicks open but the opposite slider has a spring.

  3. b6HOUbvthhVSAKUr

    • Pull the battery slightly up and out to remove.

    • If the battery doesn't pop out, the sliders weren't pushed in far enough. Push the sliders towards the center until the battery pops out.

  4. aaZxXn6HLYeAYaKc

    • Remove the rubber feet on the bottom of the device to access all the screws.

    • There are two rubber feet, one on each side of the battery compartment.

  5. eI6FvHAhZUhIXfrY

    • Unscrew the twelve 9 mm JIS #0 screws on the back of the device.

    • Gently remove the optical drive (CD reader) to more easily separate the base.

  6. a6C1fSHMSg3hUJEh

    • Unclip the keyboard surface from the base using an iFixit opening tool around the entire border.

  7. eIVV1uJCR1NrACcw

    • Separate the base of the computer from the component assembly.

    • The optical drive can be placed in the base where it corresponds to prevent misplacing it.

  8. tF4OKlUORdDNGPHH

    • Remove the two 6.5 mm JIS #0 screws holding the cooling fan to the base.

    • The base is the side by the heatsink, which is made of copper.

  9. rnB1MuBRhfDNADGV

    • Unplug the fan cable from the motherboard.

    • The fan can now be removed.

  10. UmGpMAGIXi6uiMYg

    • Remove the three 3 mm JIS #0 screws from the hard drive.

  11. EumQYriw1HjDBNO4

    • Unplug the hard drive from the motherboard.

  12. RPnsTW6dgUZPVBYE

    • Unplug display from the motherboard.

    • The connection is under a sealing sticker; peel up the sticker to unplug the connection.

  13. NcTQrtLAlFQSLJHt

    • Unplug the power port from the motherboard.

  14. DGBm5uIU3gOoGiIS

    • Unplug the display wire from the wireless adapter.

  15. tRnEtI32RN1dsSEL

    • Remove the single screw from the wireless card and gently remove the drive.

  16. VS6I4LhAbKxaqGsF

    • Unplug the keyboard from the motherboard.

  17. dFPEyXvtHxxOKuDu

    • Unplug the optical drive connection from the motherboard.

  18. yJoUJjPF2HRBOwpM

    • Remove the memory chip from the motherboard by pushing the clips away from the chip.

    • The chip will pop out once the clips are pulled far enough apart.

    • This is to access the touch-pad wires.

  19. lNcoMMxYORfFFiWV

    • Unplug both (2) wires for the touch-pad from the motherboard.

  20. Ip5AW5RHWJkOZiQ6

    • Unplug the speakers from the motherboard.

  21. TGiNV5r156PFmRPG

    • Unplug the power button from the motherboard.

  22. fnJXeGJSkVYDPPCS

    • Unscrew the four 3mm JIS #0 screws that secure the motherboard.

    • Once all the screws are removed, the motherboard can be removed by simply lifting it up.

  23. sYGofKJNllJmRNxV

    • Remove the two 3mm JIS #0 screws that secure the touchpad board.

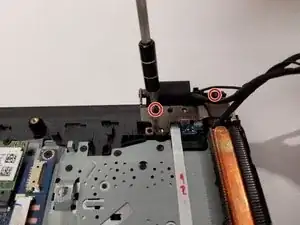

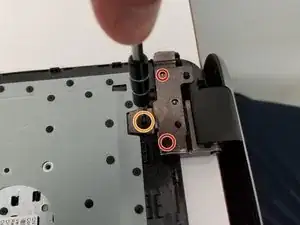

  24. RdyQJjPnsJlcM1PU
    RdyQJjPnsJlcM1PU
    RHWMHFHV3yFKQQcQ

    • Remove the display by unscrewing the four 3mm JIS #0 screws.

    • Remove one 2mm JIS #0 screw.

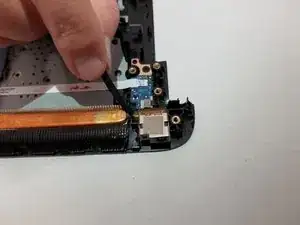

  25. jpImPRc3imDWNxjY

    • Lift the power port from its cradle.

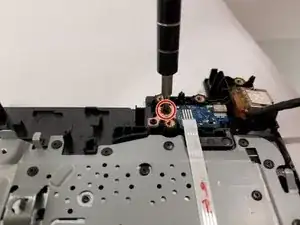

  26. sUoCGPOYucFcNelu

    • Unscrew the one 3mm JIS #0 screw holding the power button board to the device.

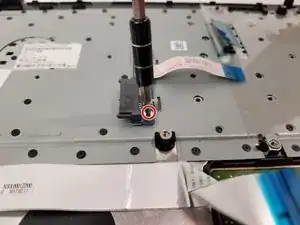

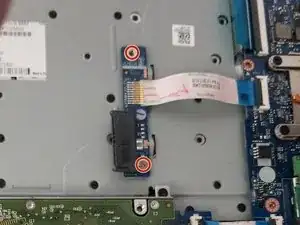

  27. XdZ1c3RdXl3PlVc1
    XdZ1c3RdXl3PlVc1
    uDWQcWDVN6USwcoM

    • Unscrew the two 3mm JIS #0 screws that hold the optical drive (CD-reader) connection to the device.

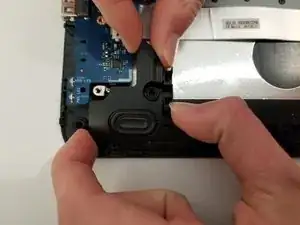

  28. fWWtataB3YGRWtar
    fWWtataB3YGRWtar
    dHYvNtOYZ1RFPJEs

    • Remove the two (2) speakers located on the botten edge of the keyboard cover.

    • Along the edge that the touch-pad board and hard drive is located.

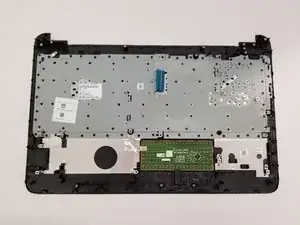

  29. lLwFYteBFFBKLsyL

    • Make sure there is nothing else attached to the keyboard cover so all that remains is the keyboard and touch-pad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
