HP 15-ay052nr Screen Replacement

Geschrieben von: Alicia Cardell
  • Kommentare: 0
HP 15-ay052nr Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

10 - 15 Minuten

Einleitung

The device's screen will not light up or display a proper image. The screen could be damaged and need replacing. See theTroubleshooting page for this device before tearing it down.

  1. Oe5JJGik31X65JUH

    • To protect the device and yourself, make sure your device is completely powered down before disassembling. Disconnect all external devices before starting any tear down process.

    • Turn the device and lay it upside-down on a flat surface so the base of the computer is facing upwards.

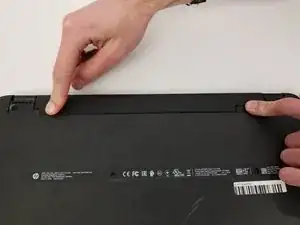

  2. uQlUR5k2WAlQOurc

    • Identify the two (2) sliding lock mechanisms on either side of the battery and slide them towards the center.

    • The sliders are located at the back of the device on the side where the display hinges are.

    • The slider closest to the optical drive (CD reader) clicks open but the opposite slider has a spring.

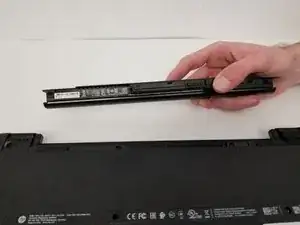

  3. b6HOUbvthhVSAKUr

    • Pull the battery slightly up and out to remove.

    • If the battery doesn't pop out, the sliders weren't pushed in far enough. Push the sliders towards the center until the battery pops out.

  4. aaZxXn6HLYeAYaKc

    • Remove the rubber feet on the bottom of the device to access all the screws.

    • There are two rubber feet, one on each side of the battery compartment.

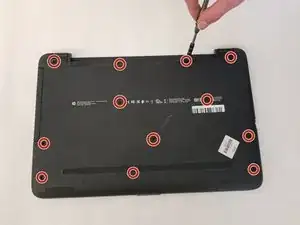

  5. eI6FvHAhZUhIXfrY

    • Unscrew the twelve 9 mm JIS #0 screws on the back of the device.

    • Gently remove the optical drive (CD reader) to more easily separate the base.

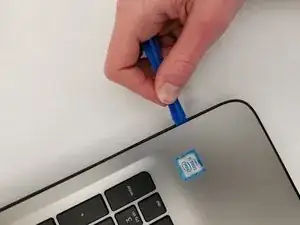

  6. a6C1fSHMSg3hUJEh

    • Unclip the keyboard surface from the base using an iFixit opening tool around the entire border.

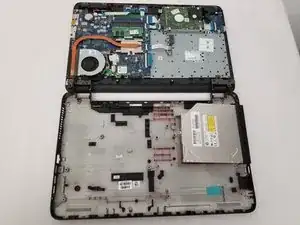

  7. eIVV1uJCR1NrACcw

    • Separate the base of the computer from the component assembly.

    • The optical drive can be placed in the base where it corresponds to prevent misplacing it.

  8. tF4OKlUORdDNGPHH

    • Remove the two 6.5 mm JIS #0 screws holding the cooling fan to the base.

    • The base is the side by the heatsink, which is made of copper.

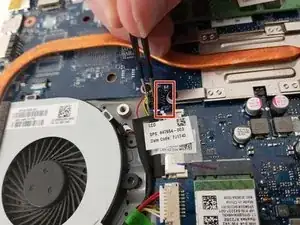

  9. rnB1MuBRhfDNADGV

    • Unplug the fan cable from the motherboard.

    • The fan can now be removed.

  10. kBdvaBfxSxwFrJvE

    • Disconnect the display cable.

  11. iMkLVySPUFLSVsSV

    • Unplug the wire attached to the wireless adapter.

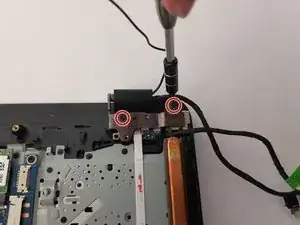

  12. nysxSAsZTPOGnla4

    • Remove the two 6.5-mm screws from the fan side of the computer.

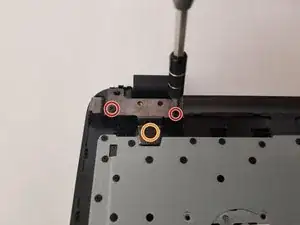

  13. GhVYpGV4lvY1mLon

    • Remove the two 3mm JIS #0 screws.

    • Remove the one broad head 2mm JIS #0 screw.

  14. t4eGFXfi1yoE3OAP

    • Lay the display with its back on a flat surface.

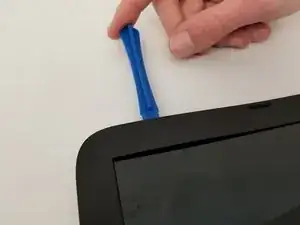

  15. hKUXHRJRiyKOLlnB

    • Pry open the screen cover using an iFixit opening tool around the entire screen.

  16. aTYEyahWlI2UdrrT

    • Remove the four 3-mm JIS #0 screws.

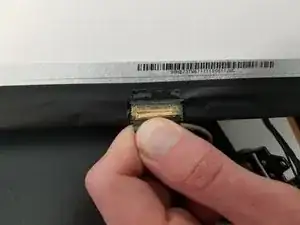

  17. PEtDP14ZqKZQ1yQJ

    • Unplug the cable connected to the screen located on the bottom.

    • The screen should come off and can be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
