HP 15-ay103dx Display Screen Hinges Replacement

Geschrieben von: Kody Franklin
  • Kommentare: 1
HP 15-ay103dx Display Screen Hinges Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

  1. AnPbmRUAYyTyAMga

    • Slide the two battery lock latches on the back of the device to the “unlock” position.

  2. 3KGRyhBqwCgEk2ew

    • Lift the battery upward to remove it from the device.

  3. 1bJaXE66Xr3FpLSO

    • Using the PH1 phillips-head screwdriver, remove all the 5/16 in. screws from the back of the device.

    • There should be 10 in total, be sure to keep them together!

  4. 2ZHBigBTT1jUjbJB

    • Locate the optical disc drive and remove it from the device by sliding it straight of the device.

  5. G6APnnO3GAAlD2S5
    G6APnnO3GAAlD2S5
    HLxjWkDT2sEk6Mcf

    • Covering the hinges of the device are rubber bumpers secured to the device using adhesive. Remove them carefully.

    • Place the adhesive side up as you will need to place them back after your replacement is complete.

  6. XKghfn5StFvXRrMr
    XKghfn5StFvXRrMr
    fpLar5PtpQBFHcxA

    • In the same spot you’ve just removed the bumpers from, you will find two 5/16 in. screws. Using the same Phillips-head screwdriver used in step 2, remove the screws

    • Be sure to keep the screws together!

  7. MeaPu2R2aYDKWAqM

    • Carefully remove the back panel from the device.

    • If you are unable to do this with your hands, you can use a thin prying tool of your choice to make it easier!

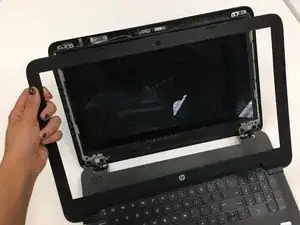

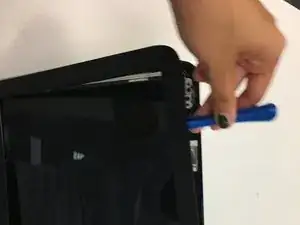

  8. CFcPJ1qLsDOjHsKN
    CFcPJ1qLsDOjHsKN
    HGAR2eiyPqWRA4Ix

    • Use a spudger to carefully remove the border around the display screen.

    • As long as you are slow and delicate, the border will eventually come off.

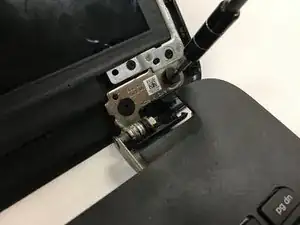

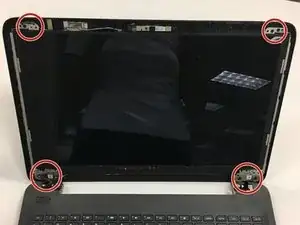

  9. 2CIKBW6wwjw63v1u
    2CIKBW6wwjw63v1u
    JcZTAFeJf1WTGoGi

    • Remove the two 5/16 screws in the top corners and the four in the bottom corners.

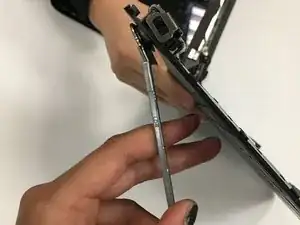

  10. toDPyJbjlIHTDqVo

    • Carefully pull the screen from the hinges and lower it on to the table.

    • There will be wires running from the screen to the motherboard. You do not need to unplug these.

    • The hinges are made of malleable metal and are easily bent.

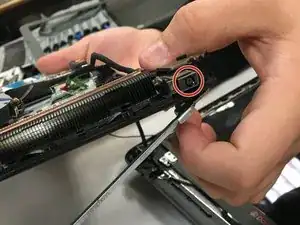

  11. oPWTSWU1RK2WQPsF

    • Remove the 5/16 screws securing the hinges to the computer.

    Thank you thank you

    Celal Gürkan -

Abschluss

To reassemble your device, follow these instructions in reverse order.
