HP 15-ay103dx Motherboard Replacement

Geschrieben von: Rafael Cardona Bautista
  • Kommentare: 1
HP 15-ay103dx Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

5 - 15 Minuten

Einleitung

  1. AnPbmRUAYyTyAMga

    • Slide the two battery lock latches on the back of the device to the “unlock” position.

  2. 3KGRyhBqwCgEk2ew

    • Lift the battery upward to remove it from the device.

  3. 1bJaXE66Xr3FpLSO

    • Using the PH1 phillips-head screwdriver, remove all the 5/16 in. screws from the back of the device.

    • There should be 10 in total, be sure to keep them together!

  4. 2ZHBigBTT1jUjbJB

    • Locate the optical disc drive and remove it from the device by sliding it straight of the device.

  5. G6APnnO3GAAlD2S5
    G6APnnO3GAAlD2S5
    HLxjWkDT2sEk6Mcf

    • Covering the hinges of the device are rubber bumpers secured to the device using adhesive. Remove them carefully.

    • Place the adhesive side up as you will need to place them back after your replacement is complete.

  6. XKghfn5StFvXRrMr
    XKghfn5StFvXRrMr
    fpLar5PtpQBFHcxA

    • In the same spot you’ve just removed the bumpers from, you will find two 5/16 in. screws. Using the same Phillips-head screwdriver used in step 2, remove the screws

    • Be sure to keep the screws together!

  7. MeaPu2R2aYDKWAqM

    • Carefully remove the back panel from the device.

    • If you are unable to do this with your hands, you can use a thin prying tool of your choice to make it easier!

  8. EEyIfBKC4mRWnAXh

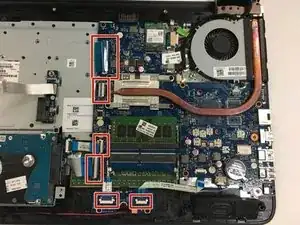

    EEyIfBKC4mRWnAXh

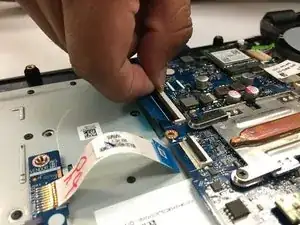

    ASCxXSQA2nVPDPRK

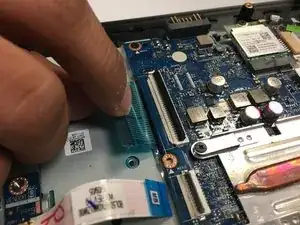

    rfCFThWFmw5y2DYZ

    • Disconnect the wires around the motherboard securing it to the device.

    • To do this, flip the black "switches" securing the wires into place upwards.

  9. WkpXPLZnO6cfjmHW

    • Remove the six 5/16 in. screws holding the motherboard onto the device using the P1 philips-head screwdriver.

    • Be sure to keep them together!

    Is it possible that you have forgot to mention two screws? One near the lcd connector and the other one on the wifi card

    Francesco -

  10. k6u4tkSlbZUumUNi

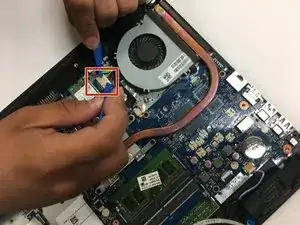

    k6u4tkSlbZUumUNi
    pAuVVGhmGLpkT5sW

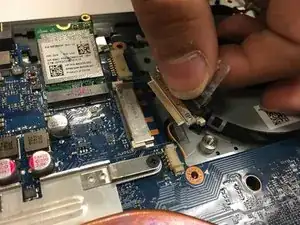

    wM1GyyTBdYIuGabP

    • Disconnect the wire securing the whole motherboard located at the top to the motherboard.

    • This is possible with your fingers, but is easier to do using an iFixit opening tool.

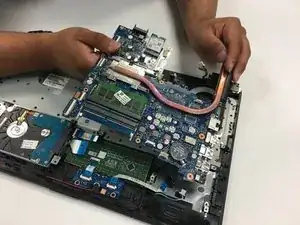

  11. sDXVkM4qt5XKj2Lr

    • Carefully lift the motherboard to remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
