HP 15-bs168cl RAM Replacement

Geschrieben von: Christian Puga
  • Kommentare: 2
HP 15-bs168cl RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to find your RAM and how to remove it properly. To determine that the RAM is the source of your issue, make sure to troubleshoot first by following the steps listed here and here. To replace faulty or corrupt RAM or upgrade the RAM capacity on your laptop, follow this guide.

  1. NsDtJgNBUPJKi1ob
    NsDtJgNBUPJKi1ob
    pwLcGLGIs1EJifqc

    • Unplug your laptop from its power adapter.

    • Turn the laptop over.

  2. pA3ZPpmtH1AqHxpF
    pA3ZPpmtH1AqHxpF
    iRb6JTlkbFEy15DD

    • Slide the Battery lock slider to the right until you see the “Unlocked” lock symbol.

  3. YOkMrvdCgCEQAn2K
    YOkMrvdCgCEQAn2K
    lOmjk5qCIolAhXSe

    • Slide the Battery release slider towards the battery while pulling the battery out.

  4. NwBoSEvniy3vWf5O
    NwBoSEvniy3vWf5O
    MRc3Z4jFIQKwWEcw

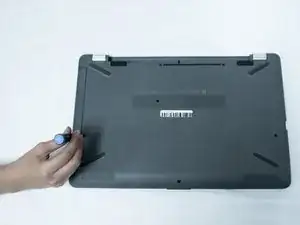

    • Use a Phillips #0 screwdriver to remove the six 10.5 mm screws visible on the bottom of the laptop.

  5. MUpkALuMaYm5eDhM
    MUpkALuMaYm5eDhM
    QidSOlYpNfMBHixp

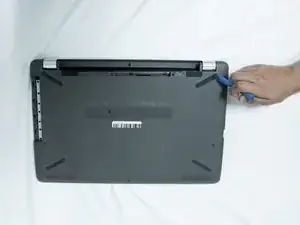

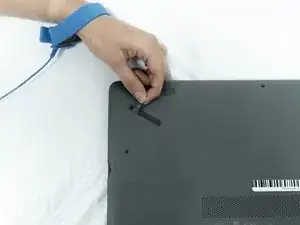

    • Carefully peel the four rubber feet off the bottom to reveal the four hidden screws.

    • Use a Phillips #0 screwdriver to remove the four 10.5 mm screws.

  6. t2YESwUBJQ4yhRc3

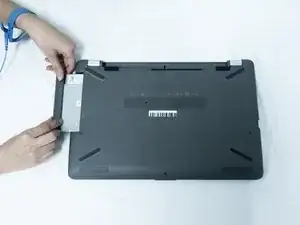

    • Remove the DVD drive by carefully sliding it out.

  7. YJjYaRpa1aYdNxmG
    YJjYaRpa1aYdNxmG
    CukWPhKvqtoetY34
    irqKF2ONPbHCBIrn

    • Flip the laptop over and open the screen.

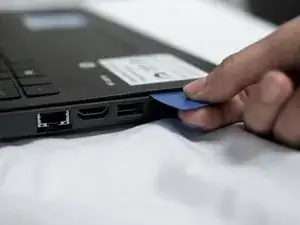

    • Carefully use a flat plastic card to separate the bottom plastic shell from the main body of the computer. Slowly slide the plastic card around the computer in between the two halves of its casing.

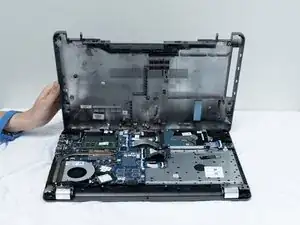

    • Flip the computer back over and remove the bottom plastic shell.

    Where is a good spot to start separating the bottom? I can’t seem to find anywhere to get into the seam.

    maccentric -

    After removing the 10 screws, then opening the lid again, at the front of the laptop I was able to push a plastic spudger in to start separating the bottom. You can zoom in on the above photo to see the gap at the front and sides. I used 2 plastic spudgers to loosen it at the front and sides.

    Jim Fernbank -

  8. OHfbvnRxEiBpH3V3
    OHfbvnRxEiBpH3V3
    2WugEZNpfDSnfhME
    MafBmtHjRYt2hXgO

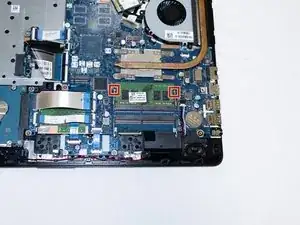

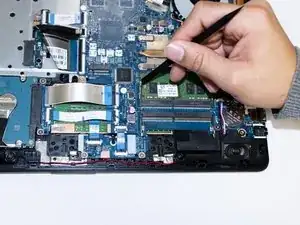

    • Pop out the clips on the RAM stick using a plastic spudger.

    • Remove the RAM stick.

    • To reinsert ensure the RAM stick is aligned correctly with the notch. Push down until it clicks.

Abschluss

To reassemble your device, follow these instructions in reverse order.
