HP 15-bs168cl Speaker Replacement

Geschrieben von: Ian Gascon
  • Kommentare: 1
HP 15-bs168cl Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

45 Minuten

Einleitung

Here is a step by step guide to remove and replace your speakers for the HP 15-bs168cl. If your laptop's speakers no longer work, are making a “crackling” sound, or unpredictably stop making sound this is the replacement guide for you. Before replacing your laptop speakers, make sure to troubleshoot your audio problems following the steps listed here. After troubleshooting your audio issues, if you are still experiencing distorted audio through your speakers follow this guide to replace them.

  1. NsDtJgNBUPJKi1ob
    NsDtJgNBUPJKi1ob
    pwLcGLGIs1EJifqc

    • Unplug your laptop from its power adapter.

    • Turn the laptop over.

  2. pA3ZPpmtH1AqHxpF
    pA3ZPpmtH1AqHxpF
    iRb6JTlkbFEy15DD

    • Slide the Battery lock slider to the right until you see the “Unlocked” lock symbol.

  3. YOkMrvdCgCEQAn2K
    YOkMrvdCgCEQAn2K
    lOmjk5qCIolAhXSe

    • Slide the Battery release slider towards the battery while pulling the battery out.

  4. NexSxtlFrQu52cPK
    NexSxtlFrQu52cPK
    mQCFu5nfiPbDC4Yp

    • Use a Phillips #1 screwdriver to remove the six 10.5 mm screws visible on the bottom of the laptop.

  5. Z3UKq2DsWMEaUyFt
    Z3UKq2DsWMEaUyFt
    fbcuTl6MbxVEpfFk

    • Carefully peel the four rubber feet off the bottom to reveal the four hidden screws.

    • Use a Phillips #1 screwdriver to remove the four 10.5 mm screws.

  6. mvi2GjHnYqI1MTTQ

    • Remove the DVD drive by carefully sliding it out.

  7. wKqgPhRe2uYY6Oj4
    wKqgPhRe2uYY6Oj4
    oyDABTqZjRbnPnYQ
    k4DKbTRFZoOu2mXC

    • Flip the laptop over and open the screen.

    • Carefully use a flat plastic card to separate the bottom plastic shell from the main body of the computer. Slowly slide the plastic card around the computer in between the two halves of its casing.

    • Flip the computer back over and remove the bottom plastic shell.

  8. 1jKCCPHYo1tMFjNL
    1jKCCPHYo1tMFjNL
    W4H4YWpZeX5rRPKK
    LYe2PZerDmVRD5Hm

    • Use a Phillips #1 screwdriver to remove the two 3.4 mm screws on the sides.

    • Use a Phillips #0 screwdriver to remove the one 3.3 mm screw at the bottom of the bracket.

  9. x4Um6h1Lspb6uJGT
    x4Um6h1Lspb6uJGT
    xQKaK2Ps2ng5kiPl

    • Remove the metal bracket holding the hard drive in place.

    • Carefully lift up the hard drive and slide it out of its connector.

  10. xhRGTHRPP52paliL
    xhRGTHRPP52paliL
    KlXMxLGlGrP5BQCc

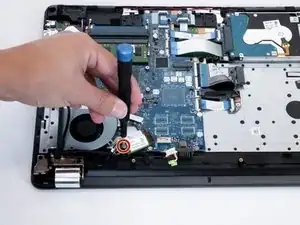

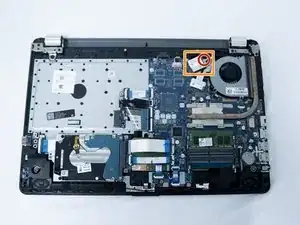

    • Using a Phillips #0 screwdriver remove the screw from the Wi-fi card.

    • Remove the card.

  11. YdcqNWtpEO2BGmeh
    YdcqNWtpEO2BGmeh
    tRXCCXGemICrwSVt

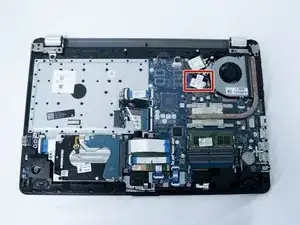

    • Carefully unplug the LCD connector using a plastic spudger.

  12. I6c6KxlLr2GqhdBv
    I6c6KxlLr2GqhdBv
    dRy2ldKB12nBBLQf

    • Unplug the power connector.

  13. 2hiOiO3wCxLCx1aE
    2hiOiO3wCxLCx1aE
    C21FXQhaRRnwO6P3
    NdIIIHdEIxgVsccM

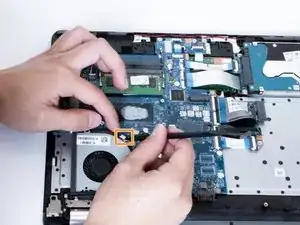

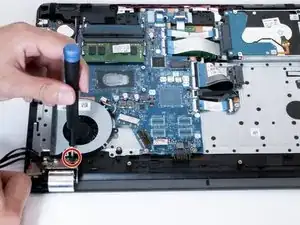

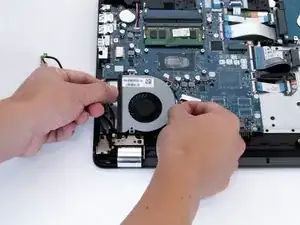

    • Pull all three cables to the side to reveal the 6.7 mm screw attached to the fan.

    • Remove the screw with a Phillips #0 screwdriver.

    • Unplug the fan connector.

    • Pull out the fan carefully leaving the heatsink in place.

  14. SoBpQRXxQCfwAFVe
    SoBpQRXxQCfwAFVe
    T1lZoIvMZqKGROhH
    nbBtpDXheZwRFFdv

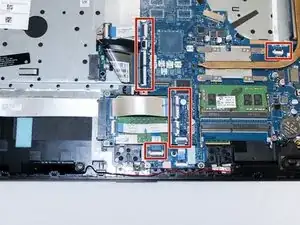

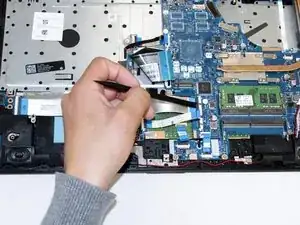

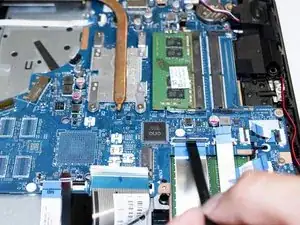

    • Unplug the eight ribbon cables by flipping up the “easy-on” connector using the flat end of the plastic spudger.

  15. YrL143B1gR4QxqCM

    • Use a Phillips #0 screwdriver to unscrew the five 3.3mm screws from the motherboard.

  16. lgnIi3KWAIRkNyZ4

    • Unplug the speaker cable from the motherboard.

    • Remove the motherboard by carefully pulling it out using the plastic spudger.

  17. I6BrqQMssBdbiBmY
    I6BrqQMssBdbiBmY
    FLFhgFWJYWf4Yn5B
    eNURWC6nR2UwbpsF

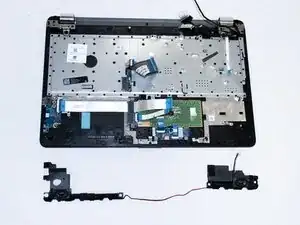

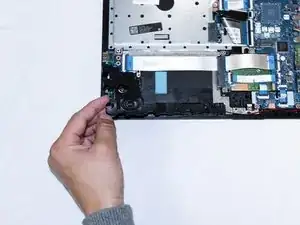

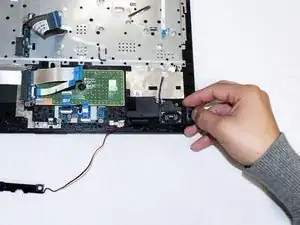

    • Pull the left speaker assembly out and make sure to carefully remove the speaker wires from the guide channel towards the bottom of the computer.

    • Carefully pull out the right side of the speaker assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
