This guide details how to replace the fan on an HP 15-d076nr. If your laptop overheats or is producing unusual noise, this may be the guide for you.

  1. d2urGxFaEX4XBWIc
    • Orient the laptop upside down so that the back of the laptop, where the battery is located, faces you.

    • Locate the left and right switches at the bottom of the laptop.

  2. rHaRRTSZBbgvY1Ed
    • Move the right switch to the left so that the orange unlock symbol is showing.

  3. mJQuopUJBgQpGvxo
    • Move the left switch to the right, covering the battery symbol, and hold.

  4. bHUNw3ogX6bcQyNM
    • While holding the left switch in place, slide the battery towards you and away from the laptop.

  5. 5cNWlrkk2IIiPcjG
    • Re-orient the laptop, so that the back of the laptop faces away from you.

  6. yTLdTMGmx5HlyyK4
    • Locate the small screw on the panel at the center of the laptop.

    • Loosen the small screw using a Philips # 1 screwdriver.

    • The screw does not come free from the panel. It only needs to be loosened enough so that the panel can be lifted/pried.

  7. vWBpCanydUyOb41u
    vWBpCanydUyOb41u
    EgVVOJH2kHBgVXLR
    • Carefully pry the middle panel up using a plastic spudger, or other prying tool .

    • Pull the panel away from the laptop and set it off to the side.

  8. ZQormOOkaVcsDZ53
    ZQormOOkaVcsDZ53
    MiOBFpOwwfCcL1X2
    • Gently wiggle and lift the black antenna wire away from the wireless card.

    • If there is also a white wire attached, both black and white wires will need to be removed from the wireless card.

  9. fREPlepFyCNcAUR1
    fREPlepFyCNcAUR1
    rq53LA1k3ySW24xH
    ZDcffee5gVyxXudW
    • Locate the Phillips 2.0x3.0mm screw on the upper left corner of the wireless card.

    • Carefully remove the 2.0x3.0mm screw using a Philips #0 screwdriver.

  10. yWFgqbE2OQhSKrvs
    • Slide the wireless card to the left to remove it from the socket.

  11. GLesyAAfIEb3jDnS
    • Locate the RAM in the exposed area.

  12. 1eVo6xVJWKB2lAHM
    1eVo6xVJWKB2lAHM
    RVN6VqZsaeBddCOp
    RFXfVaayilnVssmv
    • Locate the latches on the RAM.

    • Slide the latches away from the RAM using a plastic spudger.

    • The RAM might spring out.

  13. DbcNB2oYbYYiogwg
    • Remove the RAM.

  14. asStrXVQIlOARuSZ
    asStrXVQIlOARuSZ
    owDgh3Hl4kwPsFQd
    NHPMFFUFHqsjru3B
    • Locate the ribbon cables.

    • Pry up the black tabs on the connectors and disconnect both of the ribbon cables.

  15. bWxkaFDeMMrTkMNQ
    bWxkaFDeMMrTkMNQ
    WodArrsZ2JFNeWNn
    • Locate the DVD drive screw.

    • Remove the Phillips PM2.5×6.5 screw using a Phillips #0 screwdriver.

    • Continue using a Phillips #0 screwdriver for the rest of this guide, and subsequent guides.

    • Take the screw and place it in a container so as to not lose it.

  16. M3rORGBCqcVL2TWG
    M3rORGBCqcVL2TWG
    fr5m4sU64ke6DTPU
    • Push down the tab that is located by the DVD drive screw.

    • Take the DVD drive in one hand, and using the plastic spludger, push the tab down, and out.

  17. WXNKHxlKAjm5Y2qE
    WXNKHxlKAjm5Y2qE
    YvxlQZUaIsJftsJI
    • Remove the fourteen Phillips PM2.5×6.0 screws, and place them in a separate container.

  18. 3HhFUj6FmAFBgMhN
    3HhFUj6FmAFBgMhN
    KGAgr1lswBgXtfZg
    sESZmIGdvgUQYFfX
    • Flip the laptop over, and open it as if you were using it.

    • Gently, remove the laptop cover/keyboard from the laptop using the plastic spudger.

    • When you remove the cover/keyboard, the laptop will become top heavy.

  19. oZxE3imOwHnEZPMl
    • Disconnect the monitor cable, using the plastic spudger, and pry it upwards.

    • Pull the cable from its routing until it is free.

  20. SbLY2VSihaEqTi14
    SbLY2VSihaEqTi14
    IVWREPCyDkTHfBKN
    • Lift the black tabs, and disconnect the three ribbon cables.

    • Disconnect the red-black-white speaker cable located in the lower left corner.

  21. jKdWeiINuCeM1xQh
    jKdWeiINuCeM1xQh
    ZwXshQOinItiv14M
    • Remove the three Phillips PM2.5×4.0 screws on the card reader in the bottom left corner.

    • Place the screws in a separate container.

    • Remove the card reader.

  22. ZNbxjEQisd3WpCLg
    ZNbxjEQisd3WpCLg
    MORDHhNFVcouBNLd
    • Remove the five Phillips PM2.5×5.0 screws on the motherboard.

  23. XKxJsoIZRoPljLpP
    • Remove the Phillips PM2.5×5.0 screw located on the fan, in the upper right corner.

  24. X2mRNZEV4ITtM1ar
    X2mRNZEV4ITtM1ar
    1ICxndQX2g4yODDD
    • Carefully lift up the motherboard.

    • Do not completely remove the motherboard. Simply lift it. There is a black cable on the bottom of the motherboard that is anchoring it.

  25. OROPCrQA33WxSivl
    • Locate the cable on the underside of the motherboard, in its lower right corner.

    • Carefully grip the cable, and pull downward to remove it.

  26. KClkdKJqVsA5ZaPv
    • Flip the motherboard over.

  27. ZjKFNMm6ZwieOH5W
    • Locate the charge port cable connection point on the motherboard.

    • Grab the charge port cable's connector, and wiggle it to remove it.

    • Set the board off to the side.

  28. pwBj4NDvGrEQetL2
    pwBj4NDvGrEQetL2
    EoVQEDd3xXJuRPpv

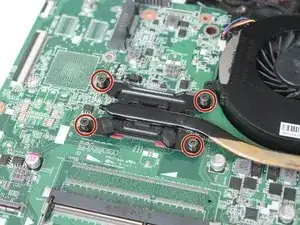

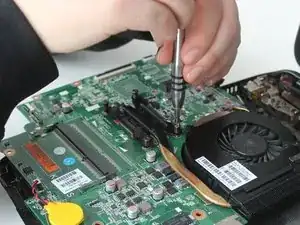

    • Carefully loosen the four screws on the processor heat sink.

    • The screws do not come out. They are retained by the heat sink.

  29. vVi4qJ3GODiWw3ub

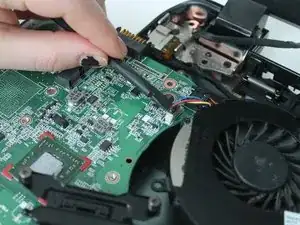

    • Disconnect the red-yellow-blue-black cable, next to the fan, on the motherboard.

    • You may need to wiggle it

  30. NUUsZQPiWUhYTvjn

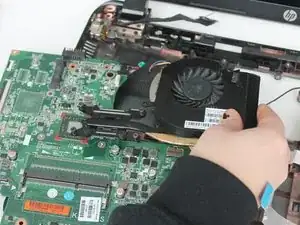

    • Remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
