HP 15-d076nr RAM Replacement

Geschrieben von: Amy Weed
  • Kommentare: 0
HP 15-d076nr RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide details how to replace the RAM on an HP 15-d076nr. If your laptop is slow, this may be the guide for you.

  1. UXVQR4OvVSSflUaL

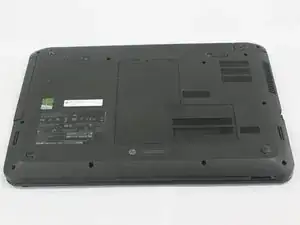

    • Orient the laptop upside down so that the back of the laptop, where the battery is located, faces away from you.

  2. ROisUVTqVUZZdRCx

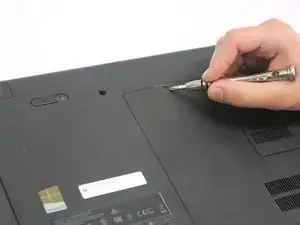

    • Locate the small screw on the panel at the center of the laptop.

    • Loosen the small screw using a Philips # 1 screwdriver.

    • The screw does not come free from the panel. It only needs to be loosened enough so that the panel can be lifted/pried.

  3. QxfIxnPZmKWwIoaF
    QxfIxnPZmKWwIoaF
    BqrN3pRstbbrYfWo

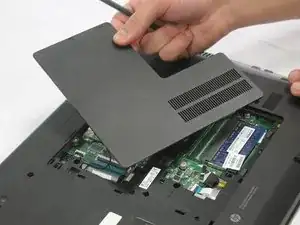

    • Carefully pry the middle panel up using a plastic spudger or other prying tool .

    • Pull the panel away from the laptop and set it off to the side.

  4. A434h1AcyjKDfgKn

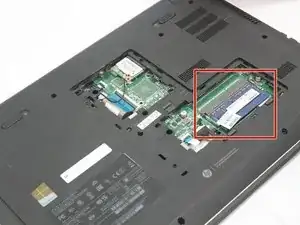

    • Locate the RAM in the exposed area.

  5. QW5FIfBksLWXsGeU
    QW5FIfBksLWXsGeU
    5eYDKqJOoSNHYOXu
    unsSGiFovksPxHfx

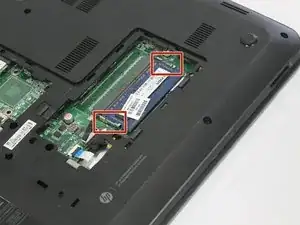

    • Locate the latches on the RAM.

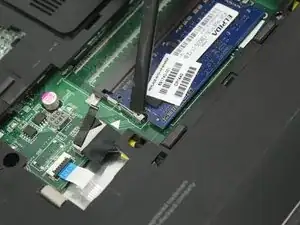

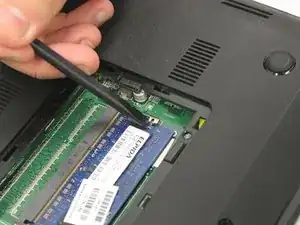

    • Slide the latches away from the RAM using a plastic spudger.

    • The RAM might spring out.

  6. nb3tqwZiRIBDIQsT

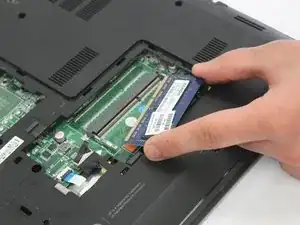

    • Remove the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
