HP 15-da0002dx SSD Replacement

Geschrieben von: Abigail Aron
  • Kommentare: 4
HP 15-da0002dx SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

If your HP Notebook 15-da0002dx laptop is making ticking sounds, experiences frequent crashes, or if your computer has trouble reading files, saving files, or is generally running slow, the SSD may need to be replaced. The SSD (Solid State Drive) acts as a storage device that reads, writes, and stores data.

Before using this guide, make sure your computer’s issues are not caused by its software. Restart the computer and see of the problems continue. If not, make sure your computer’s operating system is updated.

Before using this guide, power off the computer and wait for the components to cool. Working over a non-carpeted surface will reduce the risk of ESD damage (electrostatic discharge). A non-carpeted surface should not be able to conduct electricity and is connected to a grounded surface. Another way to reduce the risk of ESD damage is by using a plastic tool when removing the battery as plastic does not conduct electricity.

  1. DUhEUqOgSpnyigAj

    • Make sure the computer is completely turned off.

  2. LHZWZkUZMgLC2jMG

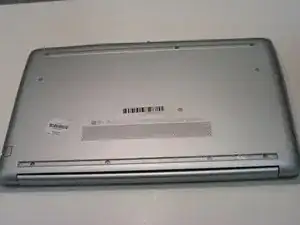

    • Turn over the laptop.

    • The HP label should be touching the table and the bottom cover should be facing up.

  3. cXKAB2qbVinBRVc6
    cXKAB2qbVinBRVc6
    Qo6nNYSVEiMOZMlt

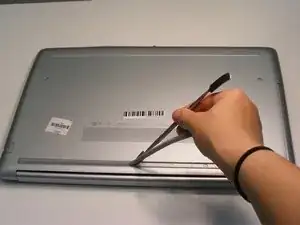

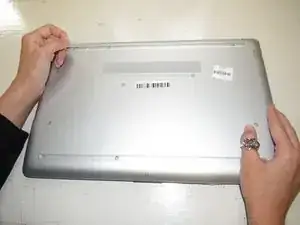

    • Two plastic feet are located on adjacent sides of the back cover.

    • Peel back the plastic feet using the plastic opening tools.

    thanks for posting this writeup. something to take not of, is the rubber strippings (feet) are of two different sizes

    - the thicker rubber strip goes on the back side

    - the thinner rubber strip goes on/towards the front

    chrisrjones1983 -

  4. VKwJ1Cvter4e3CqB

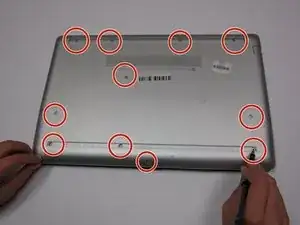

    • Using the Phillips #1 screwdriver, unscrew the eleven 9.0 mm screws holding the back cover in place.

  5. 1WmVngjckZXNcTcN

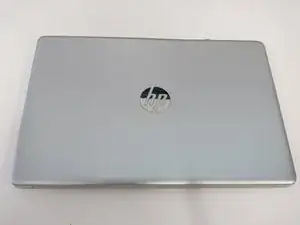

    • Carefully flip over the computer so the HP label is now facing the ceiling.

  6. TEOalYGgKaBd2rSU
    TEOalYGgKaBd2rSU
    iqTRAEKX2GXMoA5Z

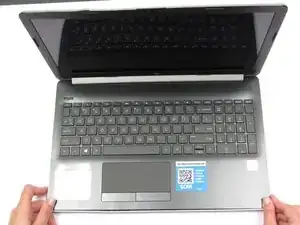

    • Open the screen.

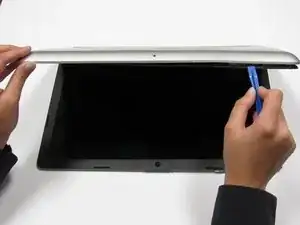

    • Run the plastic opening tools along the edge of the back cover. Do this until the back cover becomes loose.

  7. JboNjlAZRHHOZEEV

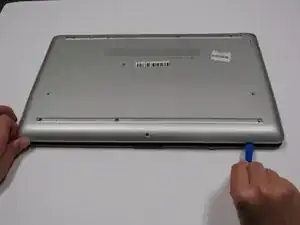

    • Close the screen and flip over the laptop. Using the plastic opening tools, gently take off the back cover starting from the middle, bottom edge.

  8. EHIgxJZimPJjYmur

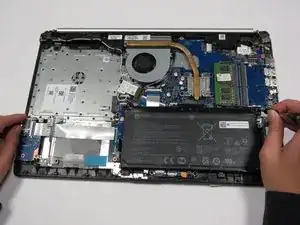

    • Remove the screws holding the battery in place using a Phillips #1 screwdriver.

    I put my m.2 but i didn't remove the battery before and when I opened my laptop the m.2 wasn't showed on (my computer)

    Ali Hamdi -

  9. Q63owioNeGKD2TBY
    Q63owioNeGKD2TBY
    LJIBBqQgrItQmeKE

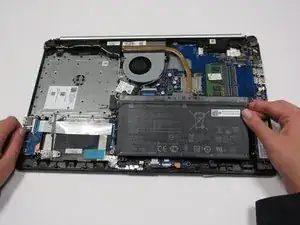

    • Using your fingers, tilt the top part of the battery towards you.

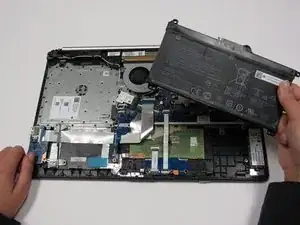

    • Continue to pull the rest of the battery away from the mounting tabs to remove.

  10. EvtRJqkT2Zygliv6

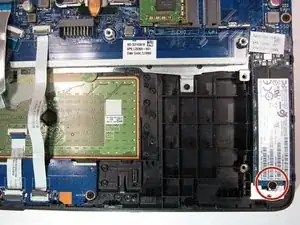

    • Remove the screw holding the SSD in place using the Phillips #1 screwdriver.

    Is there a way to add a HDD by the DVD drive and battery (the empty spot that looks like it could fit a 2.5” SATA drive but needs soldering)?

    Lazùn Stargate -

  11. HwlDYDusdjb3aooc

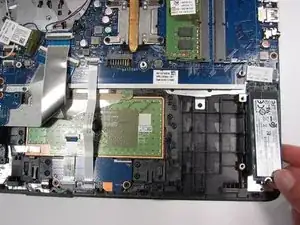

    • Carefully pull the SSD away from the socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
