HP 15-da0012dx Fan Replacement

Geschrieben von: Xavier Hung
  • Kommentare: 4
HP 15-da0012dx Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

If the cooling fan produces a grinding noise, the fan starts and stops intermittently, or there is no air coming out of the exhaust ports, use this guide to remove and replace the fan. You will need a plastic opening tool and a Phillips #1 screwdriver head.

  1. aHVdd3Lf6eBAdhxU
    aHVdd3Lf6eBAdhxU
    IbjZyGuKLYSZXEAh

    • Power down your laptop before proceeding.

    • Turn your laptop over so that the Laptop Identification Tag on the underside of the laptop faces the ceiling.

  2. OZKGeBAsMZLVXBvd
    OZKGeBAsMZLVXBvd
    jSXsfYjdityfLSkU
    wRkByT3L2DyAqAci

    • Using the plastic opening tools, peel back the plastic feet from the underside of the laptop.

  3. 2kWsLBjWFcHrnItf
    2kWsLBjWFcHrnItf
    6qrAnd6GXLvoriHT

    • Using a Phillips #1 screwdriver, remove the eleven 9.0 mm screws holding the back cover in place.

  4. twnh3XhEiqQSsYiO
    twnh3XhEiqQSsYiO
    X6ZYX2JsBNyFbNt1

    • Slide the optical drive out of the computer.

    You have to turn the Computer back on to get the optical drive out

    james john -

    This step is missing information on how to one the optical drive it doesn’t just “slide out” like the picture

    james john -

  5. KPuPDqOAqMrXhhro
    KPuPDqOAqMrXhhro
    5bscreYTyRUoNF43
    ktE1oGULLUpdiRUS

    • Flip the computer over and open the screen.

    • Start from a corner and run the plastic opening tools along the edge of the back cover.

    • After the cover has been completely loosened around the entire perimeter, close the screen and flip the computer over.

    • Gently pry back the cover starting from the middle, bottom edge.

    • Make sure not to bend or crack the plastic cover.

  6. pdOavJEWAEO2m12J
    pdOavJEWAEO2m12J
    NIWWw42KuASKCV2C

    • Using the Phillips #1 screwdriver, remove the three 8.0 mm screws holding the battery in place.

  7. y3AKgPxTaPLQlFsQ
    y3AKgPxTaPLQlFsQ
    CrHOtN6rsuRRVZG3

    • Remove the battery by tilting the top of the battery towards you and pulling the battery away from the mounting tabs.

    Excellent directions! Thank you!

    Mary Sczech -

  8. tNALdTYQuf6JIcZf
    tNALdTYQuf6JIcZf
    L4BNXS3wFDSGPCYj

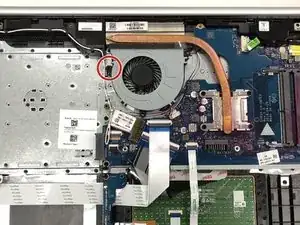

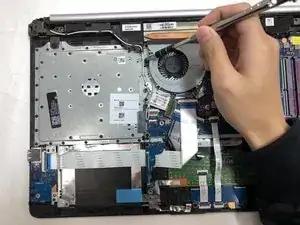

    • Using the Phillips #1 screwdriver, remove the single 6.0 mm screw holding the fan in place.

  9. I2xdMF6KXNUwocXT

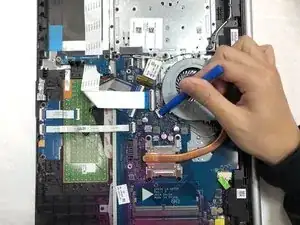

    • Using the tip of the blue plastic opening tool or your fingernail, pull the connector for the fan cable straight out of the socket.

    • To reinstall the cable, push the connector straight into the socket.

  10. NRlEDEbKf3OAAQmI
    NRlEDEbKf3OAAQmI
    6oSvUGZn4iMUrxSW

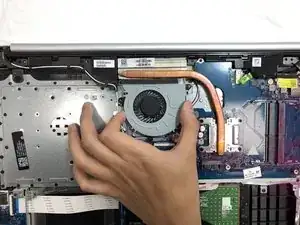

    • Lift the fan from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Xavier Hung

Mitglied seit: 07/02/19

791 Reputation

Ein Kommentar

In Step 9, the instructions are not clear "Using the tip of the blue plastic opening tool or your fingernail, pull the connector for the fan cable straight out of the socket.". By straight out, that could mean straight up. However, the connector needs to be pulled straight back towards the fan body. It is difficult to see which way the connector should go. Otherwise, the instructions are excellent.

Robert Sharer -
