HP 15-da0012dx Screen Replacement

Geschrieben von: Chase Wilson
  • Kommentare: 3
HP 15-da0012dx Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

15

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

If your laptop screen is broken or damaged, use this guide to replace the screen. To do so you need a Phillips #1 screwdriver, opening tools, tweezers, and safe pry tools. There are some difficult steps to this guide, especially be careful not to damage any wires in this process.

  1. aHVdd3Lf6eBAdhxU
    aHVdd3Lf6eBAdhxU
    IbjZyGuKLYSZXEAh

    • Power down your laptop before proceeding.

    • Turn your laptop over so that the Laptop Identification Tag on the underside of the laptop faces the ceiling.

  2. OZKGeBAsMZLVXBvd
    OZKGeBAsMZLVXBvd
    jSXsfYjdityfLSkU
    wRkByT3L2DyAqAci

    • Using the plastic opening tools, peel back the plastic feet from the underside of the laptop.

  3. 2kWsLBjWFcHrnItf
    2kWsLBjWFcHrnItf
    6qrAnd6GXLvoriHT

    • Using a Phillips #1 screwdriver, remove the eleven 9.0 mm screws holding the back cover in place.

  4. twnh3XhEiqQSsYiO
    twnh3XhEiqQSsYiO
    X6ZYX2JsBNyFbNt1

    • Slide the optical drive out of the computer.

    You have to turn the Computer back on to get the optical drive out

    james john -

    This step is missing information on how to one the optical drive it doesn’t just “slide out” like the picture

    james john -

  5. KPuPDqOAqMrXhhro
    KPuPDqOAqMrXhhro
    5bscreYTyRUoNF43
    ktE1oGULLUpdiRUS

    • Flip the computer over and open the screen.

    • Start from a corner and run the plastic opening tools along the edge of the back cover.

    • After the cover has been completely loosened around the entire perimeter, close the screen and flip the computer over.

    • Gently pry back the cover starting from the middle, bottom edge.

    • Make sure not to bend or crack the plastic cover.

  6. pdOavJEWAEO2m12J
    pdOavJEWAEO2m12J
    NIWWw42KuASKCV2C

    • Using the Phillips #1 screwdriver, remove the three 8.0 mm screws holding the battery in place.

  7. y3AKgPxTaPLQlFsQ
    y3AKgPxTaPLQlFsQ
    CrHOtN6rsuRRVZG3

    • Remove the battery by tilting the top of the battery towards you and pulling the battery away from the mounting tabs.

    Excellent directions! Thank you!

    Mary Sczech -

  8. HRvd2enakfvmEMMa
    HRvd2enakfvmEMMa
    PtYnjFRMurwUfIRm

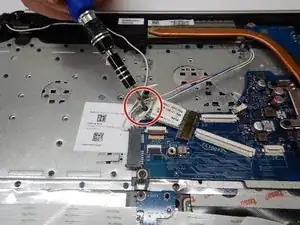

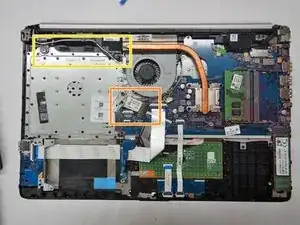

    • Remove the 3 mm Phillips #0 screw securing the WLAN card in place.

    • Carefully remove the WLAN card from the motherboard.

    • Gently remove the antenna cable from the wire guides in the speaker and chassis.

    • Place WLAN card off to the side being careful not to pull on the antenna cable.

    • The antenna cable is soft and can easily be damaged.

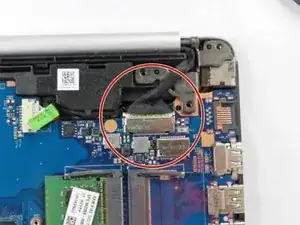

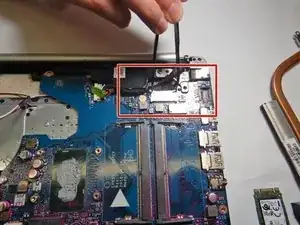

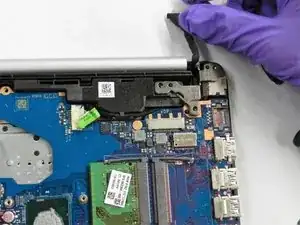

  9. cKXQGe1yIvfJdnYE
    cKXQGe1yIvfJdnYE
    ubflJEjSvv2pIHsp
    FdlXn12rwlcIXS4B

    • Carefully use the metal tweezers to remove the display connection to the motherboard.

  10. pmG3xQDDGTVYoBLc
    pmG3xQDDGTVYoBLc
    yTGyW22kLiEeEyLm
    mixJP62ThfSJHgc5

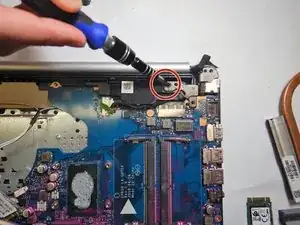

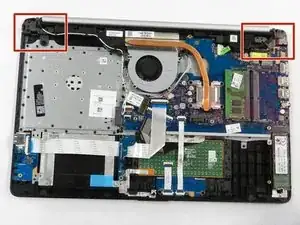

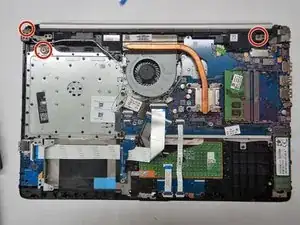

    • Use the Phillips #1 screwdriver to disconnect the display hinges from the base of the laptop.

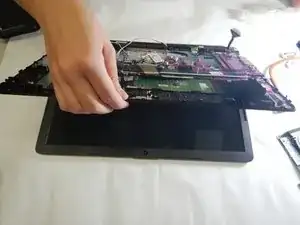

  11. AbgktXgWPpSdb23o
    AbgktXgWPpSdb23o
    TJDVvrQauhZtApP2

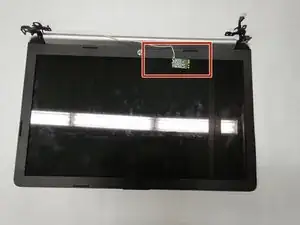

    • Making sure to hold both the base and the screen, partially open laptop.

    • Carefully remove screen from laptop, making sure that the WLAN card is safely removed with it.

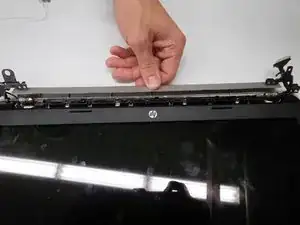

  12. DOWDouFKOXkfXqeJ
    DOWDouFKOXkfXqeJ
    ZPbHAFPejqMo1iRX
    yKgTIBAvpM13BA5R

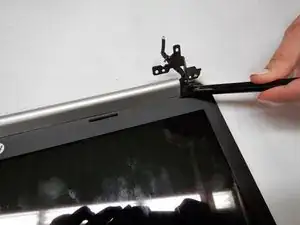

    • Carefully use the pry tool to separate the screen side of the hinge cover from the screen.

    • Rotate the hinge cover away from the screen to remove it from the screen.

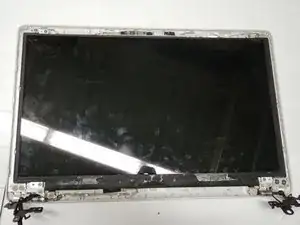

  13. C4fq2QAsLsEpEw1N
    C4fq2QAsLsEpEw1N
    AxTxZs5ndbY3W1Jg
    lRBUQUZ3YTBkvDfW

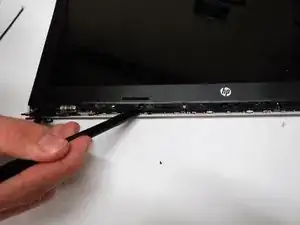

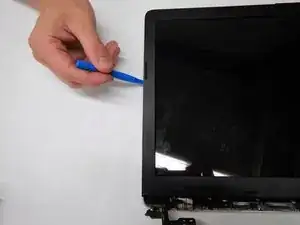

    • Starting from the area near the hinges, gently remove the adhesive display bezel from around the screen using the iFixit opening tool.

  14. 3U6mMWkvIttq2t5b
    3U6mMWkvIttq2t5b
    eMF4wImPlAfAH4Gv

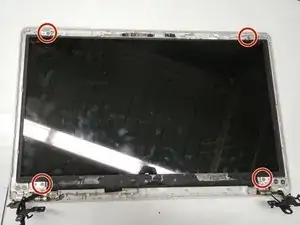

    • Use the Phillips #1 screwdriver to remove the four 3.0 mm screws securing the screen to the top cover.

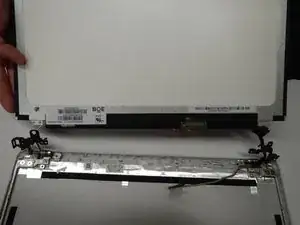

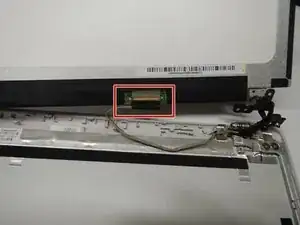

  15. RpFZXuaS226ekJFD
    RpFZXuaS226ekJFD
    gNyWSKsMlQNv16mW

    • Carefully lift the screen, being aware to not pull on the display cable connecting the screen to the top cover.

    • Gently remove the display cable from the back of the screen.

    • Remove the screen from the display assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
