HP 15-da0012dx Trackpad and Keyboard Replacement

Geschrieben von: Katarina Regan Cooper
  • Kommentare: 4
HP 15-da0012dx Trackpad and Keyboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

21

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

If your HP 15-da0012dx Laptop trackpad or keyboard is not inputting correct clicks, mouse movements, or keyboard inputs, follow this guide to replace the keyboard and track-pad panel.

A keyboard and track-pad should provide inputs to put information into your computer. A faulty keyboard and track-pad will allow only some inputs or even no inputs at all. Before taking apart your laptop it is smart to restart and try each the track-pad and keyboard a few times to confirm faulty hardware.

Before following this guide be sure to ground yourself by touching a metal object such as your computer case, or by using an anti-static wrist band.

  1. aHVdd3Lf6eBAdhxU
    aHVdd3Lf6eBAdhxU
    IbjZyGuKLYSZXEAh

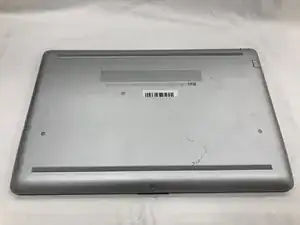

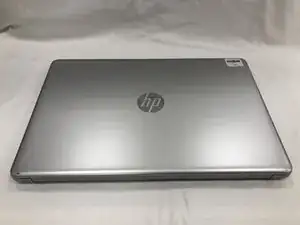

    • Power down your laptop before proceeding.

    • Turn your laptop over so that the Laptop Identification Tag on the underside of the laptop faces the ceiling.

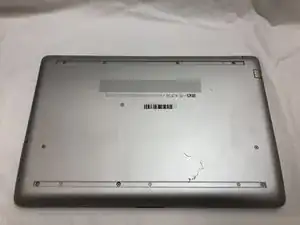

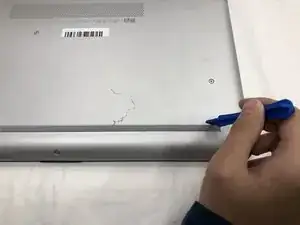

  2. OZKGeBAsMZLVXBvd
    OZKGeBAsMZLVXBvd
    jSXsfYjdityfLSkU
    wRkByT3L2DyAqAci

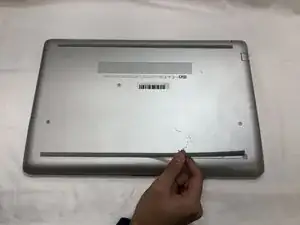

    • Using the plastic opening tools, peel back the plastic feet from the underside of the laptop.

  3. 2kWsLBjWFcHrnItf
    2kWsLBjWFcHrnItf
    6qrAnd6GXLvoriHT

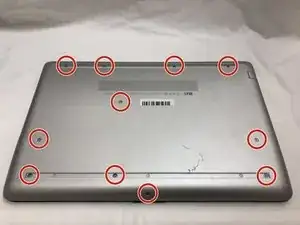

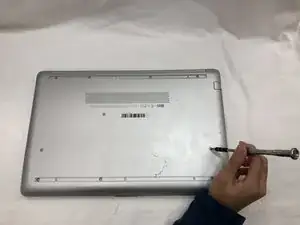

    • Using a Phillips #1 screwdriver, remove the eleven 9.0 mm screws holding the back cover in place.

  4. twnh3XhEiqQSsYiO
    twnh3XhEiqQSsYiO
    X6ZYX2JsBNyFbNt1

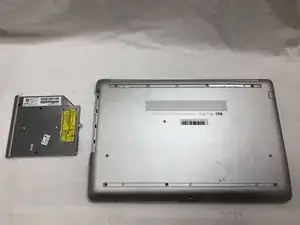

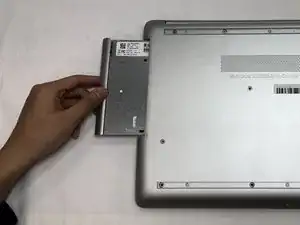

    • Slide the optical drive out of the computer.

    You have to turn the Computer back on to get the optical drive out

    james john -

    This step is missing information on how to one the optical drive it doesn’t just “slide out” like the picture

    james john -

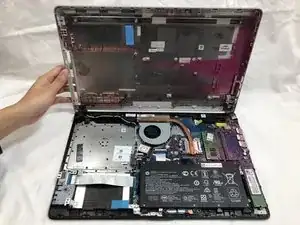

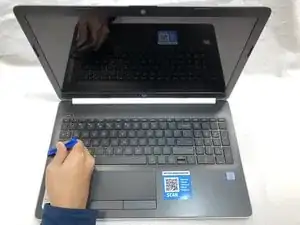

  5. KPuPDqOAqMrXhhro
    KPuPDqOAqMrXhhro
    5bscreYTyRUoNF43
    ktE1oGULLUpdiRUS

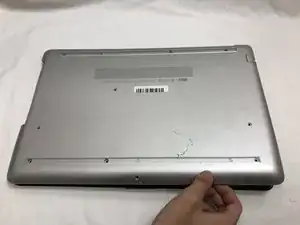

    • Flip the computer over and open the screen.

    • Start from a corner and run the plastic opening tools along the edge of the back cover.

    • After the cover has been completely loosened around the entire perimeter, close the screen and flip the computer over.

    • Gently pry back the cover starting from the middle, bottom edge.

    • Make sure not to bend or crack the plastic cover.

  6. pdOavJEWAEO2m12J
    pdOavJEWAEO2m12J
    NIWWw42KuASKCV2C

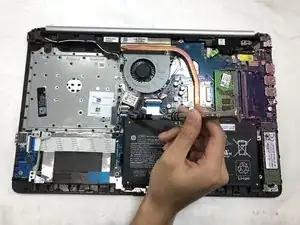

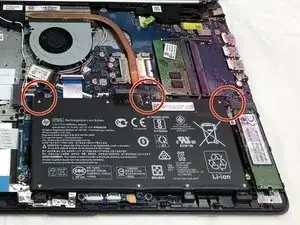

    • Using the Phillips #1 screwdriver, remove the three 8.0 mm screws holding the battery in place.

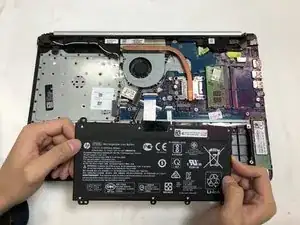

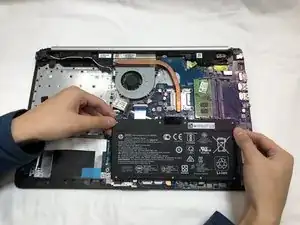

  7. y3AKgPxTaPLQlFsQ
    y3AKgPxTaPLQlFsQ
    CrHOtN6rsuRRVZG3

    • Remove the battery by tilting the top of the battery towards you and pulling the battery away from the mounting tabs.

    Excellent directions! Thank you!

    Mary Sczech -

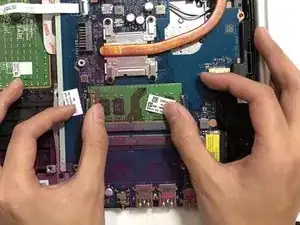

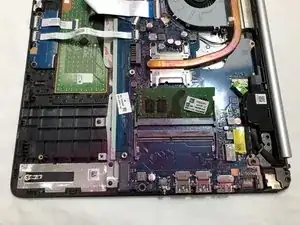

  8. COIBCIEWsa4JKpgc
    COIBCIEWsa4JKpgc
    KvcAvAaBTFGUGOlt

    • Spread the retention clips on either side of the RAM module outward until you hear a click sound.

    • The RAM module should tilt up at a 45 degree angle.

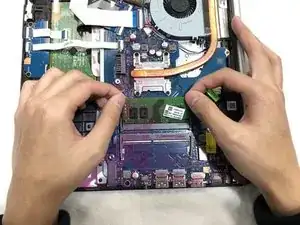

  9. 5Bn2DBEPve443Gnl
    5Bn2DBEPve443Gnl
    Ov54B4VFjLpGJGG1

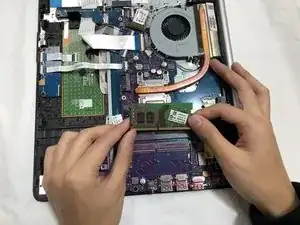

    • Grasp the edge of the RAM module and pull it away from the slot.

    • Follow Steps 8 and 9 to remove both RAM modules.

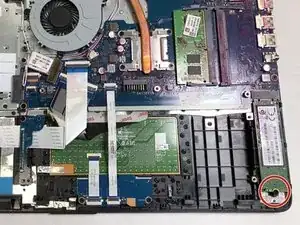

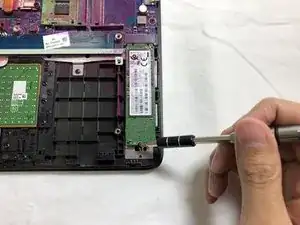

  10. aZg4LUCmWsMuktnx
    aZg4LUCmWsMuktnx
    hlMrY6jIFlcccscd

    • Using the Phillips #1 screwdriver, remove the single 3.0 mm screw holding the SSD module in place.

  11. ElPYnCclxha6En3H
    ElPYnCclxha6En3H
    tIwFFcJmNPNLYKBy

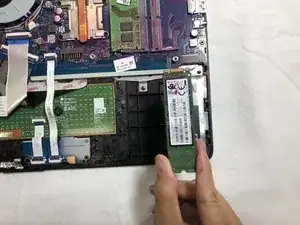

    • Pull the SSD module away from the socket.

  12. 12rhnEENMHoAx6mH

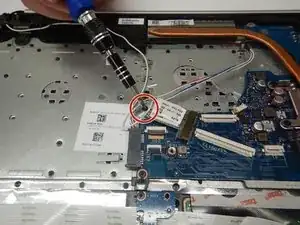

    • Using the Phillips #1 Screwdriver, remove the single 3.0 mm screw holding the wifi card and gently pull the wifi card away.

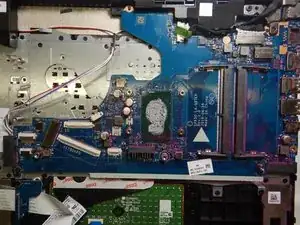

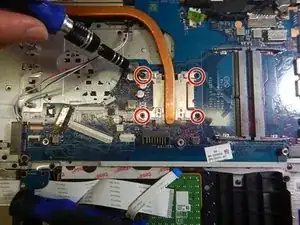

  13. iJ1HuP2TYxPRll4Z
    iJ1HuP2TYxPRll4Z
    fHD3GFFmXxYpVUfs

    • Using the Phillips #1 Screwdriver, remove the four 3.0 mm screws holding the heat sink in place.

    • Gently pull the heat sink out of the laptop.

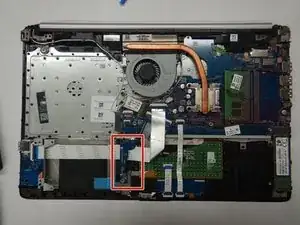

  14. jmCJnxgTsE62cL6L
    jmCJnxgTsE62cL6L
    BZGpZeQVEABG32jH

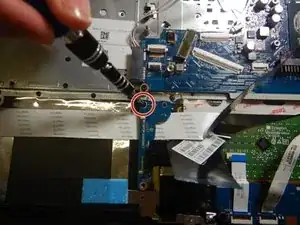

    • Using the Phillips #1 screwdriver, remove the single 3.0 mm screw holding the small circuit board.

    • Gently remove the small circuit board.

  15. CXkGdsZnHVTtVSlZ
    CXkGdsZnHVTtVSlZ
    1G1KGeYmXnvYdrXD
    X2tZf1tjZSTUUDOG

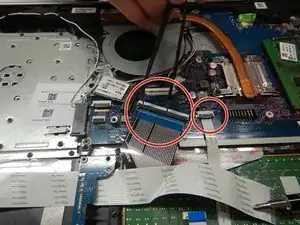

    • Using the metal tweezers, disconnect the ribbon cables from the motherboard .

    • First remove the USB board cable followed by the keyboard and touchpad cables.

  16. 65SHyc1YnXi6bh2n

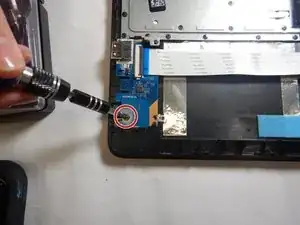

    • Using the Phillips #1 screwdriver, remove the single 3.0 mm screw holding the USB card in place.

    • Gently remove the USB card from the laptop.

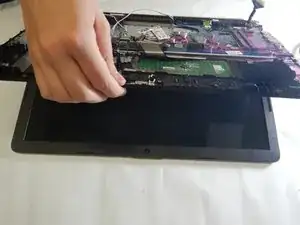

  17. iV3A5DLyqNBvXdAN
    iV3A5DLyqNBvXdAN
    C5pYbwCihUW5ILHF

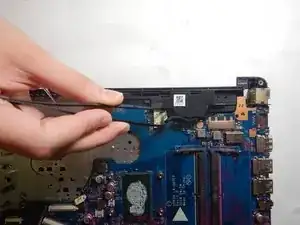

    • Remove the speaker cable from the cable holder.

    • Tilt the bottom of the laptop up 30 degrees to move the monitor holders up to allow access to the rest of the laptop, and then return the laptop to its original state.

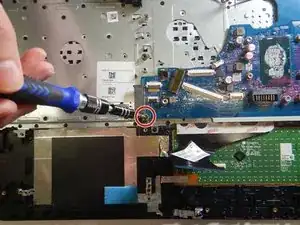

  18. KtgXTFlv5STN1lRX
    KtgXTFlv5STN1lRX
    kccMIxpLAPKBANeG

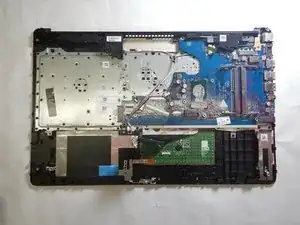

    • Using the Phillips #1 Screwdriver, remove the 3 mm screw from the motherboard.

    • Carefully remove the motherboard.

  19. yBdXeVsLSBXaPnAg

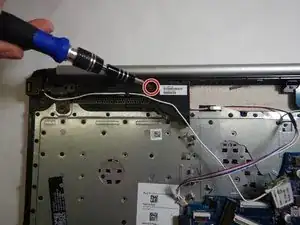

    • Use the Phillips #1 screwdriver to remove the 3mm screws holding the speakers in place.

    • Carefully lift the speakers out of the laptop.

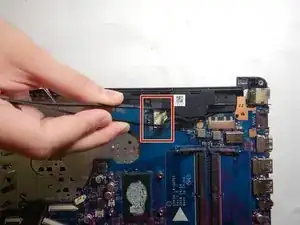

  20. lu1wpeqH1APROcvJ

    • Use tweezers to remove the power connector from the laptop.

    • Carefully remove the power jack.

  21. MJKCN6oUvaJ2T1ZF
    MJKCN6oUvaJ2T1ZF
    hEYxV3ixR6txdTJZ

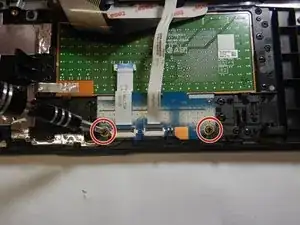

    • Use the Phillips #1 screwdriver to remove the two 3 mm screws holding the mouse buttons board down.

    • Carefully remove the mouse buttons board.

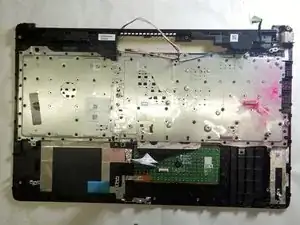

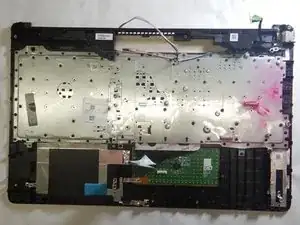

    • What remains is the keyboard, trackpad, and top case assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
