HP 15-db0015dx RAM Replacement

Geschrieben von: Gladis

Kommentare: 7

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

15 Minuten

Einleitung

Reasons to replace the RAM on a laptop are the following:

Overheating
Performance upgrade
Lagging software
Frequent glitches

This guide will provide steps on how to replace the RAM on the HP 15-db0015dx.

Werkzeuge

Schritt 1

Power off the device before starting.
Remove the rubber strips that hide the screws using the spudger.
Flip the device and unscrew the eleven screws with a Phillips #0 screwdriver.

How can I remove the rubber strips? Which screwdriver head should I use?

Alex Watkins - 26/02/20

Schritt 2

Use the spudger tool to pry open the back cover.
Lift the back panel to access the inside.
Slide the CD drive to the left, and remove.

The top of what? Note that iFixit does not like arrows, and this arrow doesn’t seem to make sense here when you’re lifting up. Instead, use a flipbook style shot to show this action. I would also separate out the yellow bullet to a new step so you have three images to show this process, and also, so you can add more details to the description of what to do.

Alex Watkins - 26/02/20

I believe the tool here is the spudger, which you have in the tool list as well. Make sure to correctly identify tools.

Alex Watkins - 26/02/20

Schritt 3

Unscrew the three battery screws with a Phillips #0 screwdriver.
Lift the battery up, disconnecting the connector first.
Push forward and remove the battery.

What is the orange highlighted section? You want the text and images to work independently. The picture also seems to contradict what you say, since your hands are on the sides. Reminder: remove arrows in all pictures in favor of action shots.

Alex Watkins - 26/02/20

Add warning and info bullets to let the audience know that they may damage other sections of this computer by pulling pieces off.

Alec Diaz - 26/02/20

Schritt 4

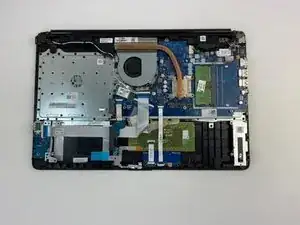

Locate the RAM.

Avoid locate/identify steps. Instead, just begin with “Pinch the clips.”

Alex Watkins - 26/02/20

Schritt 5

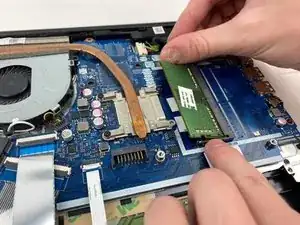

Pull the gray clips holding the RAM to the sides.
This will cause the RAM to pop out at an angle.

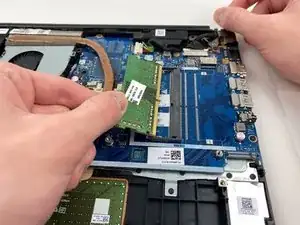

Remove the RAM.

Proofreading issue here. See previous comment about identify steps. Be sure to remove throughout all guides. Make sure to take pictures from first-person perspective.

Alex Watkins - 26/02/20
