HP 15-db0015dx USB/SD Card Reader Replacement

Geschrieben von: Steven Dankiewicz
  • Kommentare: 8
HP 15-db0015dx USB/SD Card Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

Use this guide if the SD card reader or the USB drive located on the right side of the HP 15-db0015dx laptop stops working. Before starting this guide be sure to eject the SD card inside the laptop if applicable, remove any USB connectors and fully power off the device.

  1. HOfXwAAP6GHi6MJL
    HOfXwAAP6GHi6MJL
    CFuvKJdHJQQa3eBc

    • Power off the device before starting.

    • Remove the rubber strips that hide the screws using the spudger.

    • Flip the device and unscrew the eleven screws with a Phillips #0 screwdriver.

    How can I remove the rubber strips? Which screwdriver head should I use?

    Alex Watkins -

  2. KiPqBEpA1hOWlXOL
    KiPqBEpA1hOWlXOL
    44QOUBAHoKxyqDGh
    V1VnRogYnXk6SOIE

    • Use the spudger tool to pry open the back cover.

    • Lift the back panel to access the inside.

    • Slide the CD drive to the left, and remove.

    The top of what? Note that iFixit does not like arrows, and this arrow doesn’t seem to make sense here when you’re lifting up. Instead, use a flipbook style shot to show this action. I would also separate out the yellow bullet to a new step so you have three images to show this process, and also, so you can add more details to the description of what to do.

    Alex Watkins -

    I believe the tool here is the spudger, which you have in the tool list as well. Make sure to correctly identify tools.

    Alex Watkins -

  3. F2CqXjKuZpY4HTVB
    F2CqXjKuZpY4HTVB
    DNaNTDZAkyZFgvEX
    nNpoYOZeJJ6FU2DC

    • Unscrew the three battery screws with a Phillips #0 screwdriver.

    • Lift the battery up, disconnecting the connector first.

    • Push forward and remove the battery.

    What is the orange highlighted section? You want the text and images to work independently. The picture also seems to contradict what you say, since your hands are on the sides. Reminder: remove arrows in all pictures in favor of action shots.

    Alex Watkins -

    Add warning and info bullets to let the audience know that they may damage other sections of this computer by pulling pieces off.

    Alec Diaz -

  4. TcFON2ffNPCVfOVC
    TcFON2ffNPCVfOVC
    ApcBfLkCCYXdsMs4
    rbHL3msVkh5Xmd4U

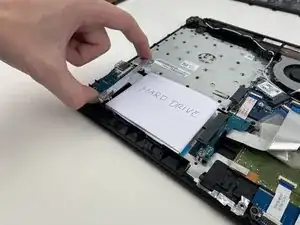

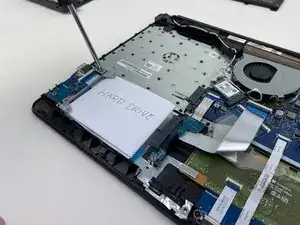

    • Remove the four screws on the hard drive bracket with a Phillips #0 screwdriver.

    • Pull the hard drive bracket out.

    The text here doesn’t make sense to me.

    Alex Watkins -

  5. VkVFKLOuOuT1SkTu

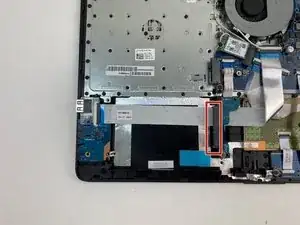

    • Remove the hard drive from the connector by sliding it to the left until the connector is disengaged.

    How can I do this? You need additional detail and pictures.

    Alex Watkins -

    add detail and pictures showing how to do action.

    Alec Diaz -

  6. QZFOHFdnwgsqJGsQ
    QZFOHFdnwgsqJGsQ
    NI6sMRLyywsWZrZG
    WCy2PpIsKh6OEjkC

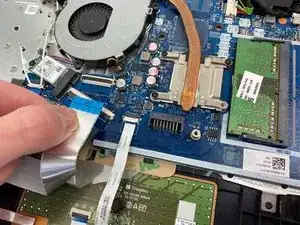

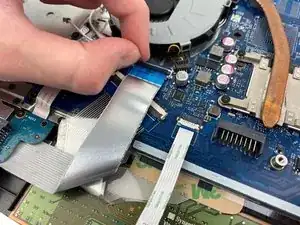

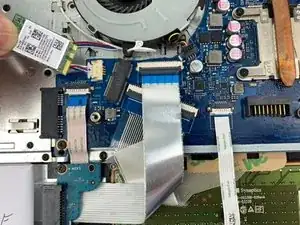

    • Lift up on the connector pin that attaches the SD card reader to the motherboard

    • Gently pull the wire out

  7. aY5IVKsAODsNqmjY
    aY5IVKsAODsNqmjY
    urwfDUp35rYD4bOC

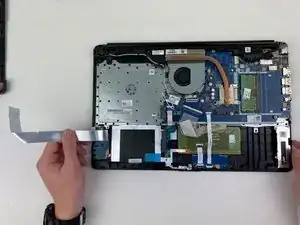

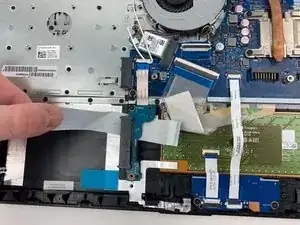

    • Snake the wire underneath the battery support

    • Pull the wire out to allow the SD Card reader to be removed

  8. HCCJGMMP3ahlLXHH
    HCCJGMMP3ahlLXHH
    pNhDQYniqQTrrj4J
    C1WCVy1PGRTBFkxV

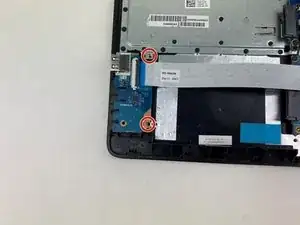

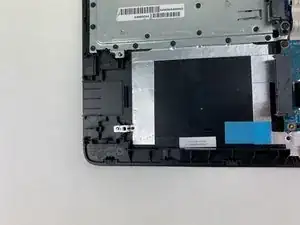

    • Remove the two Phillips #0 screws holding the SD Card reader in place.

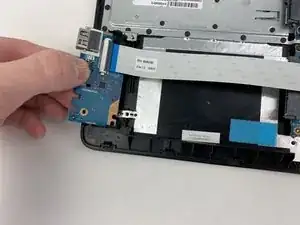

    • Gently pull the SD card reader up and out of the slot.

    • A spudger may have to be used to pop the SD card reader out of place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
