HP 15-f162dx Motherboard Replacement

Geschrieben von: Abdulrahman Bogshan
  • Kommentare: 0
HP 15-f162dx Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

Technical problems with a motherboard, caused by improper handling, humidity, power supply spikes, or many other reasons, can lead to a great deal of deterioration of user experience. This guide will help you understand the process of replacing the motherboard on the HP 15-f162dx laptop.

Before the start of the replacement process, make sure to disconnect the laptop from its power supply and place the device on a flat work surface with plenty of space around it to avoid mishandling the delicate components.

  1. 3cL6Gam4DVfBvmRM

    • Pull back the lock.

  2. i2J6QFOkDJYHTP5W

    • Take off the battery

  3. otevHSZTu46NMMRj

    • Use a Flathead 2.5 mm Phillips screwdriver to remove all of the screws on the backside of the laptop.

    • There are 14 screws on the back plate in total, make sure to remove them all before proceeding.

    • Apply gentle pressure when undoing the screws to preserve the condition of screw heads for future repairs or servicing.

  4. WfOmuTGYRGrNXPrW

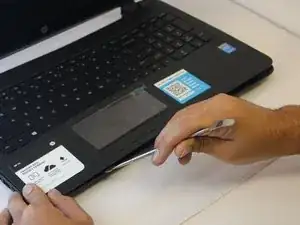

    • Once all screws have been removed , place the laptop on a flat surface and insert a metal spudger in a gap between the top side coverings.

    • Once inserted, move the spudger around the base, lifting the top edge about quarter of an inch. Gently go around the edge repeating the action.

    • The sharp popping sound that the latches on the inside will produce is normal and does not signify anything being broken.

    • While some force will be required in this step, make sure not to over-apply pressure since extra force might break the plastic latches.

    • After all of the inside latches have been dislodged, remove the front cover. Now is a good time to clean the dust that collects in the device after prolonged use.

  6. EMuk51jNOrNfk1O6

    • Use Phillips JIS J00 screwdriver to undo the screws that attach the motherboard to the back cover.

    • Again, make sure to apply only a gentle pressure when undoing the screws.

    • Be very careful: If the metal head of the screwdriver slips during the process, it can damage the motherboard. While not relevant in case of removing a broken motherboard, it is crucial while putting in a new one.

  7. gmj4ZBp3WV5CvBgI
    gmj4ZBp3WV5CvBgI
    IgeMs3CURBWdqodY
    TtWaHdhfig3eYNV4

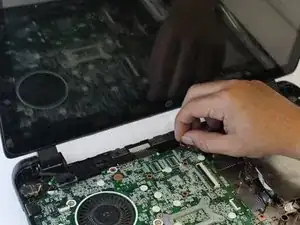

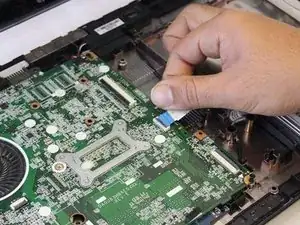

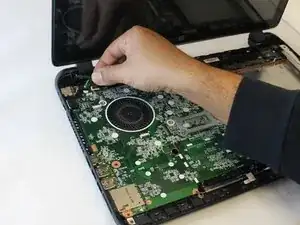

    • Locate and disconnect the wires that are connected to the motherboard.

    • Do not use any kind of metal instrument to assist you in this process since it can damage the contacts of the wires.

    • Instead, you can use a credit card or a plastic spudger included in the Essential Electronics Toolkit.

    • After the wires have been disconnected, gently lift the motherboard out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
