You can use this guide to help you safely and effectively remove the front panel, or the housing cover, from your HP 15-r137wm TouchSmart device. Be sure to follow all steps in order to ensure proper removal of components and connections. This guide is a prerequisite for all guides of this device, since it is required to remove the housing to access the components.
-
-

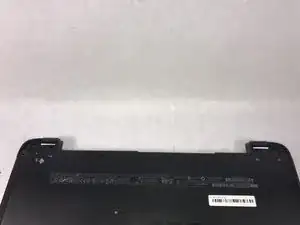

Remove all ten (10) 5.5 mm Phillips #0 screws.
-
Remove the two (2) plastic tabs located at the rear of the panel. Locate the two (2) 7.5mm Phillips #0 screws underneath the pads and remove.
-
-
-

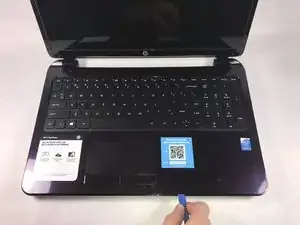

Use a wide plastic opening tool to pry off the top casing.
-
Lift the cover off carefully as there are wires still attached to internal components.
-
-
-

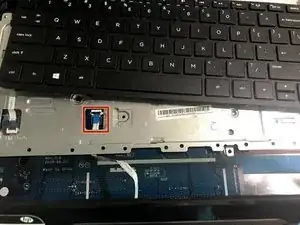

Move the keyboard slightly out of the way to locate the connection.
-
Disconnect the small wire protruding from the motherboard underneath the metal plate.
-
-
-

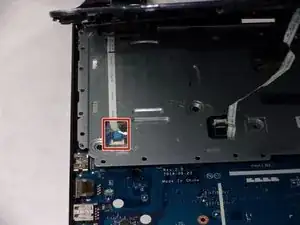

Locate the connection between the power button and the connecting cable.
-

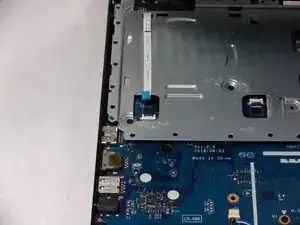

Remove the cable from the motherboard carefully.
-
To reassemble your device, follow these instructions in reverse order.
