HP 15-r137wm TouchSmart USB Ports Replacement

Geschrieben von: Ross B Jacques
  • Kommentare: 0
HP 15-r137wm TouchSmart USB Ports Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

This guide will help you replace and/or remove the USB ports on your device. The USB ports are essential to connecting external devices such as flash drives and wireless mouse adapters. Removal of the USB ports is quite simple once other components are removed.

  1. WSNiS5KIefM1lgZj
    WSNiS5KIefM1lgZj
    rwWN4LNRncUTxS4B
    GnaKIKKuIwMYEUAZ

    • Make sure that the device is powered off and unplugged before removing components.

    • Remove all ten (10) 5.5 mm Phillips #0 screws.

    • Remove the two (2) plastic tabs located at the rear of the panel. Locate the two (2) 7.5mm Phillips #0 screws underneath the pads and remove.

  2. C63OyYjVYNjHxrGq

    • Use a wide plastic opening tool to pry off the top casing.

    • Be cautious not to crack the casing near the keyboard as it is quite fragile.

    • Lift the cover off carefully as there are wires still attached to internal components.

    • After panel is removed, use an anti-static wrist strap to ensure the motherboard does not get any external shocks from static discharge.

  3. rvERyUEJpeOatfYJ

    • The connection for the track pad is still connected.

    • Move the keyboard slightly out of the way to locate the connection.

    • Disconnect the small wire protruding from the motherboard underneath the metal plate.

  4. CrCITUCeCVoJTFPO
    CrCITUCeCVoJTFPO
    3R2ScJCHixSIUdlv

    • Locate the connection between the power button and the connecting cable.

    • Do not lift the front panel off to far as the cable is still attached.

    • Remove the cable from the motherboard carefully.

  5. 1YGPGecO4QRspnMX
    1YGPGecO4QRspnMX
    SaKVkOsdhV4gdC6D

    • Disconnect the connection between the keyboard the the motherboard.

  6. iQcN4KBFKpCDe3gT
    iQcN4KBFKpCDe3gT
    GLIwRmk4GUmkEe5r

    • Remove the four (4) 2.5mm by 3.5mm Phillips #0 screws from the metal retaining plate.

    • Lift the metal retaining plate off and away from the device.

  7. knOlEYqYr2YQ6kHJ
    knOlEYqYr2YQ6kHJ
    bWCXcGkF251JlWNx

    • Remove the one (1) 2.5mm by 3.5 mm Phillips #0 screw from the USB port plate.

  8. F5lH5aMlRauBTAOo
    F5lH5aMlRauBTAOo
    Y1FBtSvhIafHICRq

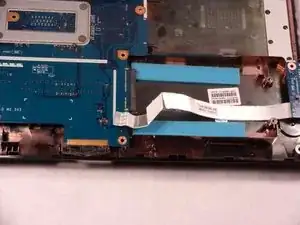

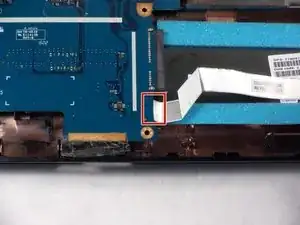

    • Disconnect the small connection from underneath the motherboard.

    • The cable is glued to the housing, so gently pull to remove the entire component.

  9. Yjb1N5SmFmcVFvOp

    • Lift the USB port out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
