HP 2000 - 2D22DX RAM Replacement

Geschrieben von: Conor Most
  • Kommentare: 1
HP 2000 - 2D22DX RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Directions for the removal and replacement of the RAM module in a HP 2000 - 2D22DX laptop computer. When adding more RAM, always replace the existing modules to ensure compatibility between modules.

  1. iLFHEB5eWhQSbwFX
    iLFHEB5eWhQSbwFX
    5HO41BYyN2QRIcQx

    • Flip the device over and locate the battery compartment.

    • Slide the battery release latch to the left until the battery is detached from its slot.

    • A distinguishable pop will be heard when the battery is fully released.

  2. DgD5L1gKWVCTwaHB
    DgD5L1gKWVCTwaHB
    cJEkQqdqQPrNQPxN

    • Slowly pull the battery out of its slot, being careful not to damage any of the connectors in the process.

    how long does that lithium battery next to the hard drive last.

    do you ever have to replace it?

    which item does it powers?

    hope to here from you soon

    Anthony Damons -

  3. oOMuViMpetZuTk5i
    oOMuViMpetZuTk5i
    ZdrcsYTgRpq5k1tF

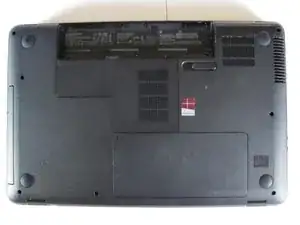

    • After battery removal, the RAM compartment cover is exposed.

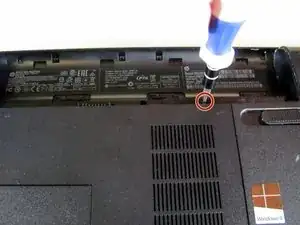

    • Locate the Phillips head screw seen in the second picture. It secures the RAM compartment to the plastic chassis.

    • Loosen the screw that is securing the RAM compartment with a Phillips #00 screwdriver.

    • The screw is permanently attached to the RAM compartment cover. Do not try to remove it completely.

  4. ZZI2bhuJWuHMONfD
    ZZI2bhuJWuHMONfD
    T3H1HVKie26NLRaO

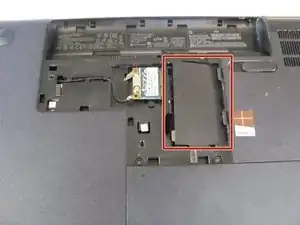

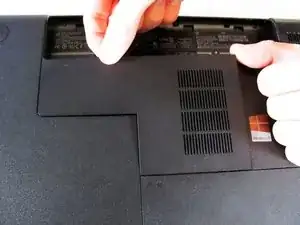

    • Once the screw is sufficiently loosened, gently unclip the RAM compartment cover from its slots in the plastic chassis.

    • Pull the compartment door out and away from the chassis, exposing the black film covering the RAM module.

  5. o4uARmLeEJVAC3PC
    o4uARmLeEJVAC3PC
    NNLBKCpDIN1as1Q4
    Htue1yN4yMhHMsl5

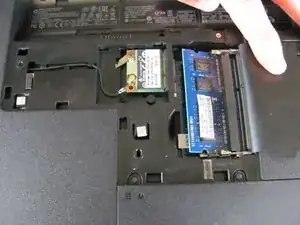

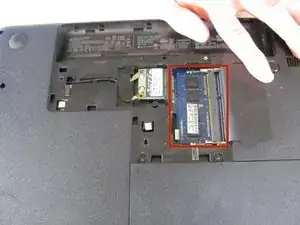

    • Move the black plastic film to the side to locate the RAM slots.

    • Locate the metal clips holding the RAM card in place.

    • Using your fingers, push the metal clips out and away from the RAM module until the RAM module pops up at a 45 degree angle.

  6. Esb4gvOy6Yyk5jGQ

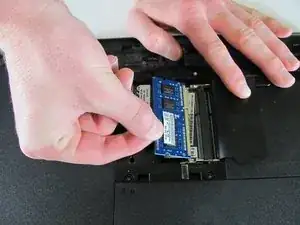

    • Hold the black plastic film away from the RAM slots. Grasp the edge of the RAM card and slide it out at a 45 degree angle.

    • Maintain the 45 degree angle of the RAM card until all pins are disengaged. Failure to do so may result in pin breakage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
