HP 550 Notebook LCD Display Replacement

Geschrieben von: Smilzo
  • Kommentare: 2
HP 550 Notebook LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

1 Stunde

Einleitung

Follow this guide to fix your LCD display.

  1. L1sTCnPa4BRXPK2K

    • Remove the battery

  2. H3xdm3jJH54GJZLo
    H3xdm3jJH54GJZLo
    bGIHRGjpvDxIdKD3
    3kTfUtmSUvghViMv

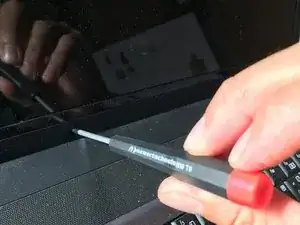

    • Remove the 8 pads and the underlying screws

  3. YYw5HyDKoIV1QUtc
    YYw5HyDKoIV1QUtc
    lxjyxmNUbNlQJgtn
    AgfgNj1jlxqCLR61

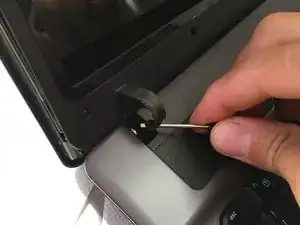

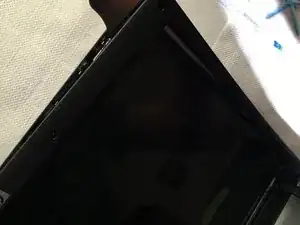

    • Use a thin tool to separate the lcd frame

    • Unhook the cover on the 2 hinges on the upper side

  4. LTunUZ5NvGf2UXSG
    LTunUZ5NvGf2UXSG
    JWbp5DfYgcDSTwLA
    QgqnF2ObaJZ5jTZv

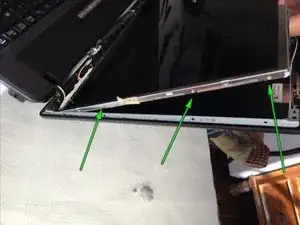

    • Remove the LCD cover with delicacy, paying attention to the wires and removing any adhesive if present.

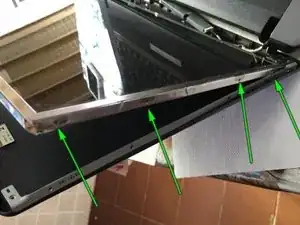

    • Remove 4 lcd fixing screws on one side and 4 screws on the other

    • Force the back cover slightly to access the last screw on both sides

  5. jfMnoIFJeXSGqVLN
    jfMnoIFJeXSGqVLN
    STnKChhNStucqwKF
    tA4hRO4OrtZnDiRE

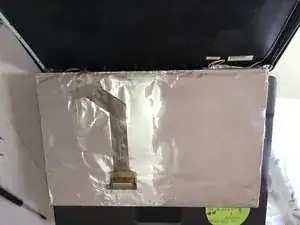

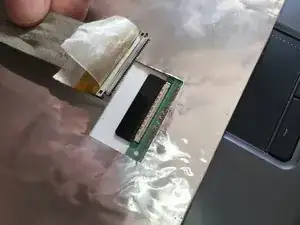

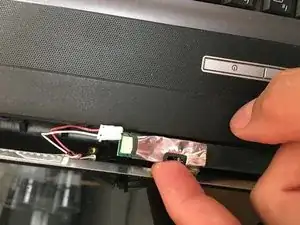

    • Disconnect the lcd panel connector

    • Gently lay the LCD panel on the keyboard.

    • Disconnect video display connector.

  6. ONUVpFKIw1blgOIp

    • Remove the LCD panel and replace with the new one

Abschluss

To reassemble the device, follow these instructions in reverse order.
