HP 7 1800 Audio Jack Replacement

Geschrieben von: Trevor Shumate
  • Kommentare: 0
HP 7 1800 Audio Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

You will be disassembling the HP 7 1800 and using a soldering iron to replace the audio jack.

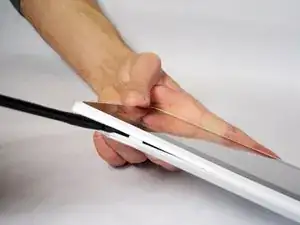

  1. kJKWQ4ZwxfKvfRAb
    kJKWQ4ZwxfKvfRAb

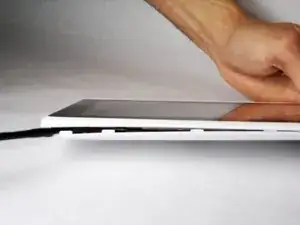

    4aCp3UCgpNPuTQIB

    • Use a Spudger to open the back panel. Be careful not to break the tabs.

  2. hCZfA55e2aKUgslF

    • Desolder the top lead for the six solder points.

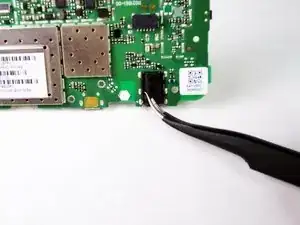

  3. W2TQbgGZYG5fmdQv

    • Once the solder is removed, gently pull the audio jack away from the motherboard with tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
