HP 7 PLUS 1301 Speaker Replacement

Geschrieben von: Shao-Hung Hsiao
  • Kommentare: 0
HP 7 PLUS 1301 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If the device's speaker isn't working, then it may be necessary to replace it. The most challenging step to replace the speaker is removing the back cover. The tools listed (or similar) are necessary to fix the speaker properly.

  1. Hl3rtksgQFPC5XgH
    Hl3rtksgQFPC5XgH
    ujLa6UaDtDybWNXm

    • Make sure the device is off and not plugged in before starting.

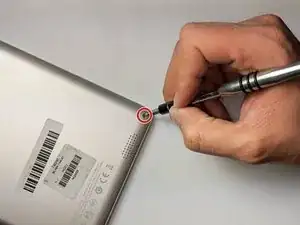

    • Use the Torx T5 screwdriver and remove the 3mm screws on all four corners of the device.

  2. 4u4pJSp2PXwBvsAE
    4u4pJSp2PXwBvsAE
    lOkjsqWiM3XCpq6t

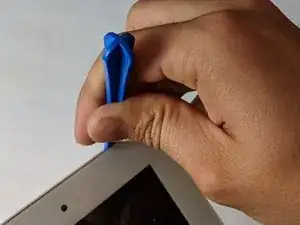

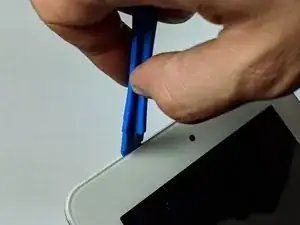

    • Using the plastic opening tool, push in between the front, then slide it around.

    • Slide the plastic opening tool all the way around the tablet to separate the back cover.

    • Be careful when trying to remove the back as the screen can be damaged with excessive force.

  3. jQdLWmWbGeYNVYqH
    jQdLWmWbGeYNVYqH
    keKknGHCMLQTFAHb

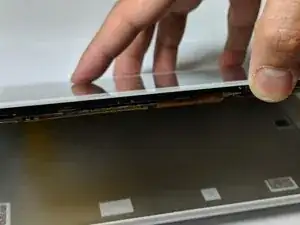

    • Continue sliding the plastic opening tool around the tablet until the cover fully separates from the device.

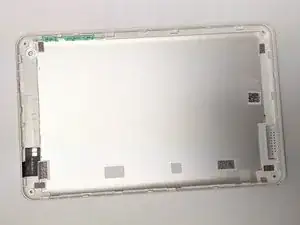

    • Remove the back cover.

  4. qhBPKVksiDOe2mbZ
    qhBPKVksiDOe2mbZ
    TpcLYBhhk3CgJHkW

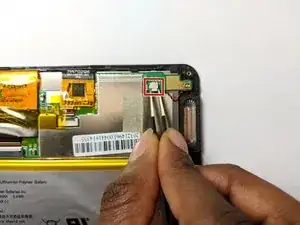

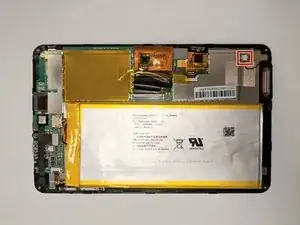

    • Using tweezers, carefully remove the speaker connector from the socket.

  5. VXmGoCBYZ4ZjhSWL
    VXmGoCBYZ4ZjhSWL
    suxHuVerQqqWDqvS
    4a4PvR3JDF1xpHTY

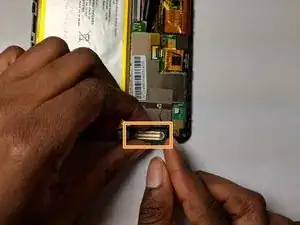

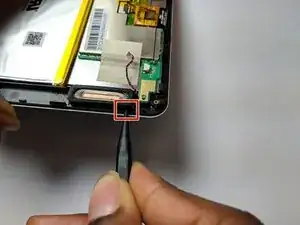

    • Insert a spudger in the bottom right of the speaker. It makes the speaker easier to come off.

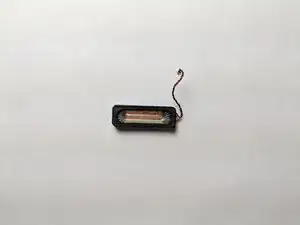

    • Carefully remove the speaker with your hand.

    • Some force needs to be applied here due to the adhesive on the other side of the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
